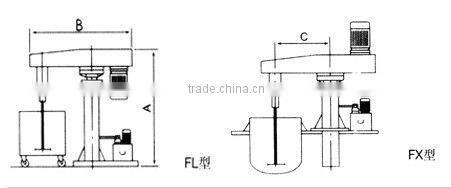

FL High Speed Disperser for Dispersing Agent

Frame type and main power:

  1,Applicable power for frame fg250: 5.5kw; 7.5kw; 9/11kw; 11kw.
  2,Applicable power for frame fg350: 9/11kw; 11kw; 15kw; 18.5kw; 18.5kw/22kw; 22kw; 30kw.
  3,Applicable power for other frame:2.2kw; 3.7kw; 4kw; 30kw; 32/42kw; 45kw; 55kw; 75kw; 90kw

Speed requirement:
  1,Speed type:sigle,double stepless ,step(multi)
  2,Single speed: magnetic,frequency cobversion,reducer,shirt belt
  3,Speed range:low speed below 400r/min,high speed below
                               400-1200R/min,opecial speed over 1200r/min.

 Dispersing disc type: falt disc sawtooth,trident,butterfly,other type.

 Installation type:floor stand ,platform(platform frame)

 Tank dismeter and dispersing wheel: 3-4:1.

 Motor and electic: explosion proof,common,special requipment.

 Motor installation type: motor output upword.

After Sales Service:
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
