Symbol Barcode Scanner Symbol Ls9208i Omni-directional Barcode Scanner

Physical Characteristics

Dimensions:

(without stand)

5.51 in. H x 3.49 in. W x 2.96 in. D

14 cm H x 8.8 cm W x 7.5 cm D

Dimensions

(w/ adjustable stand)

7.18 in. H x 4.83 in. W x 3.73 in. D

18.24 cm H x 12.27 cm W x 9.47 cm D

Weight

Scanner only: 10.2 oz./320 g

With adjustable stand: 21.5 oz./670 g

Power Source

Depending on host:

• Host power

• External power supply

Voltage

5.0 VDC ± 10%

Nominal Current

390 mA

Power

2 watts

Mounting Options

Adjustable multi-mount stand

Color

Cash Register White or Twilight Black

Performance Characteristics

Light Source

650 nm visible laser diode

Roll (Tilt)

: Omni-directional: 360° Single-scan line: ± 40°

Pitch

Omni-directional: ± 50° Single-scan line: ± 60°

Skew (Yaw)

Omni-directional: ± 50° Single-scan line: ± 50°

Print Contrast

25% minimum reflective difference

Scan Patterns: capability

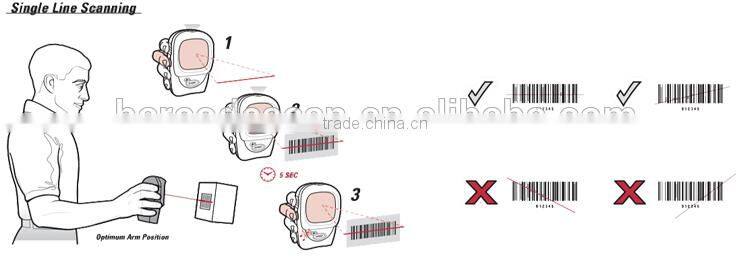

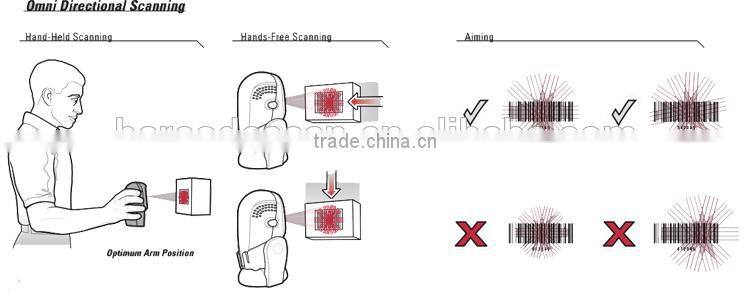

Omni-directional: 20 interlocking lines, 4 scan angles, 4 lines per angle rastering @ 5 Hz Single scan line

Scan Rate

Omni-directional: 1500 scans/second

Single scan line: 75 scans/second

Depth of Field

0 to 9 in./0 to 22.9 cm @13 mil (100% UPC/EAN)

Nominal Working

See chart below Range

Width of Field

1.6 in./40 mm @ face 6.7 in./170 mm @ 9 in.

Minimum Resolution

4 mil

Decode Capability

UPC/EAN/JAN, UPC/EAN w/ Supplementals, UCC/EAN128, Code 128, ISBT 128, Code 39, Trioptic Code 39, Interleaved 2 of 5, Discrete 2 of 5, Code 93, Code 11, Codabar, MSI, GS1 DataBar (formerly RSS)

Interfaces Supported

USB, RS232, IBM® 468X/9X, Keyboard Wedge, Wand and Synapse™ (allows connectivity to virtually every POS host type)

User Environment

Operating Temp

32° to 104° F/0° to 40° C

Storage Temp

-40° to 158° F/-40° to 70° C

Humidity:

5% to 95% non-condensing

Ambient Light Immune to normal artificial indoor and Immunity

natural outdoor (direct sunlight) lighting conditions.

Fluorescent, incandescent, mercury vapor and sodium vapor:

450 ft-candles (4,844 lux) Sunlight: 8,000 ft-candles (86,111 lux)

EAS Support:

Optional Checkpoint Electronic Article Surveillance EAS

Regulatory

Electrical Safety:

Certified to UL 1950, CSA C22.2 No. 950 EN60825

Laser Safety

: CDRH Class IIa Laser Product IEC 60825 Class 1 Laser Product

EMC

CISPR B, FCC B

Warranty

The Symbol LS9208i omni-directional scanner is warranted against defects in workmanship and materials for a period of 30 months from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See the complete warranty for details.
