New type hot sale concrete large capacity ice maker flake ice machine from china suppliers

Jiujiang Ideal Imp. & Exp. Co.,Ltd is specializing in ice machines, cold room project, refrigeration

equipments items for more than 8 years in China since 2007. And the brand name "Icefocus" has

been registered for developing our business and agents in the world. We are supplying

"ICE MACHINES" including the following items:

(1) Flake ice machines:  Fresh Water system 500kg/24hour to 60Ton/24hour.

                                             Sea Water System 1Ton/24hour to 20Ton/24hour.

(2) Plate ice machines:  3Ton/24hour to 15Ton/24hour.
(3) Tube ice machines:  2Ton/24hour to 30Ton/24hour.
(4) Cube ice machines:  Commercial Cube Ice Machines 23kg/day to 1000kg/day;
                                              Industrial Cube Ice Machines 2Ton/24hour to 20Ton/24hour.
(5) Block ice machines:  1Ton/24hour to 20Ton/24hour.

Thanks for remembering our brand "ICEFOCUS" ,
Hight Quality Ice Machines and Cold Rooms Spokesman !

Our Brother Company "Hongkong Ideal Refrigeration Equipment  Ltd."

New type hot sale concrete large capacity ice maker flake ice machine from china suppliers

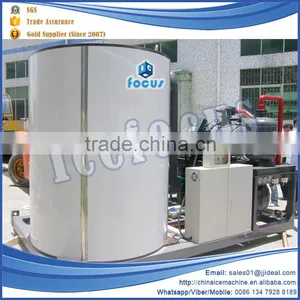

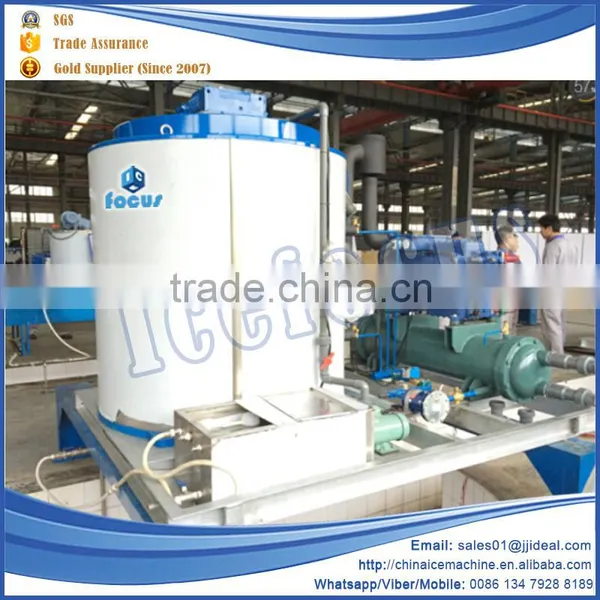

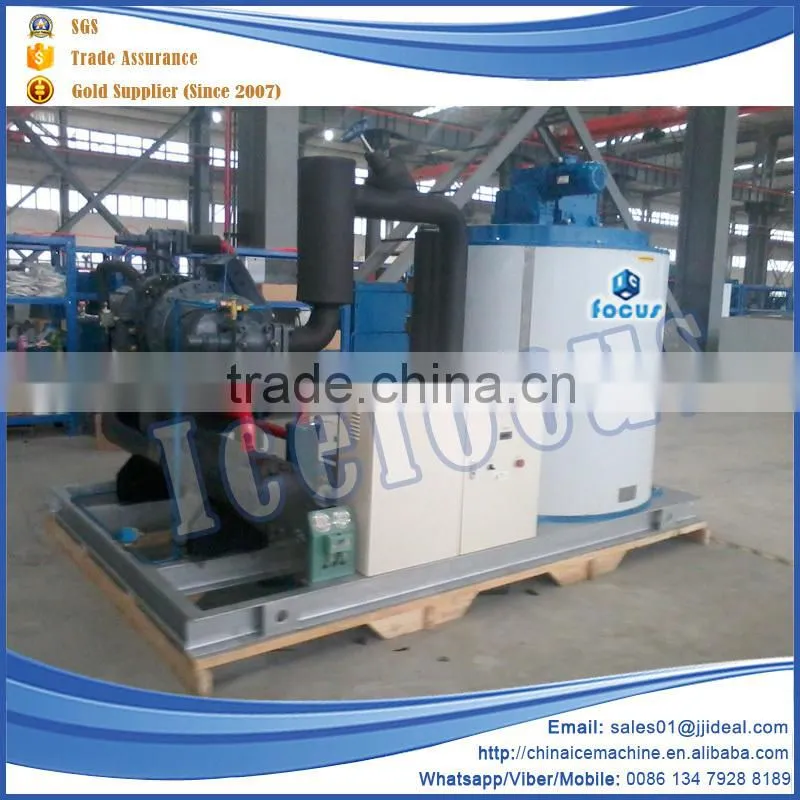

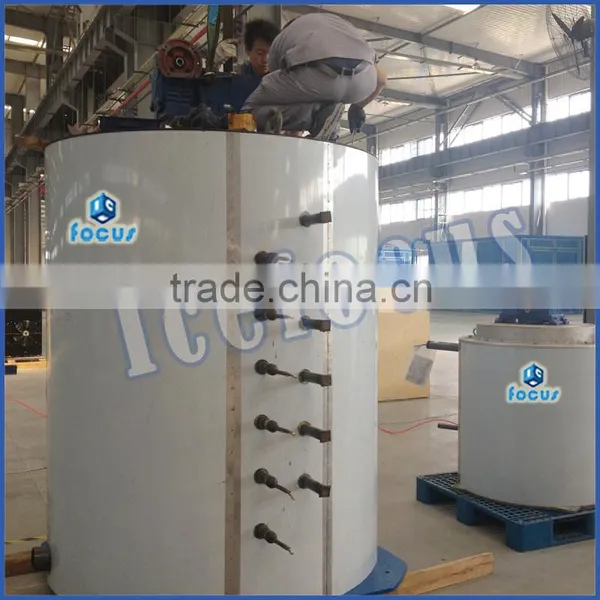

Flake Ice Machine Design, Material, Technology Characteristics:

Industrial Flake Ice Machine is designed to be modularized for easy maintenance. The evaporation tank of this machine is made of stainless steel SUS304 or carbon steel Chromium upon the user's requirements. The ice is very dry, pure, powerless, uneasy blocking.  PLC controlling system can automatically control the whole process of producing ice with alarm of lacking water, full ice, high/low pressure, and motor reverse rotation protection so as to guarantee the machine run stably with less faults. The scratch-style ice dropping system inside machine ensures constant working with minimum power consumption. The patent processing technology allows for highly effecient heating transfer and energy saving.

Flake Ice Making Machine Application Fields :

The commercial flake ice machine is particularly suitable for refreshing vegetables and foodstuff in supermarket and quick cooling for processing fishery products and butchery.

Flake Ice Maker Details & Sepcifications:

Flake Ice Machine Notes:

(1)  Besieds Standard Voltage, we can manufacture the ice machine with
      200V/240V/400V/440V-60Hz-3P according to customers request.

(2) Standard Ambient Temperature: 25C.  Water Supply Temperature 16C. Evaporating
       Temperature -20C.

(3) Applicable ambient temperature 5C-40C. water supply temperature 0C-40C.

(4) This series products are applicable to fresh water, Refrigerant R404A ( for 500kg/day --
      1000kg/day ice machine), Refrigerant R22 for 1500kg/day---3000kg/day ice
       machines).  If you choose R404A, please inform us in advance.

(5) The outer size includes ice storage bin size.

(6) Thickness of ice: 1.5mm-2mm

(7) The input power is given at standard voltage and working conditions and therefore is
       only for reference.

(8) With the development of technology, the data are subject to change without notice.
