New designed low consumptiong ice making machine

Specifications

ice making machine
1. High Quality
2. High Output
3. Energy Saving
4. Easy for Storage

  ice making machine:



1. Tube ice plant produces food grade ice. Tube ice is edible ice.



2. Tube ice plant  you can see often in Restaurant, Hotel, and Wine bar and so on.

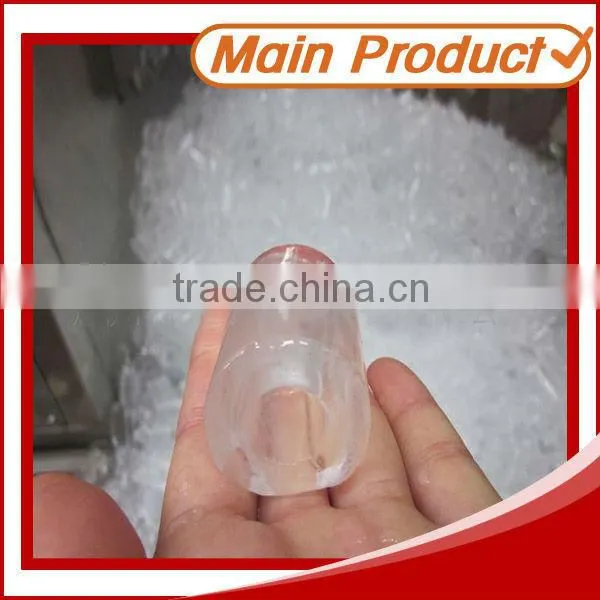

3. Tube ice machine for tube ice

-External diameter: 22mm, 28mm, 35mm and 42mm.

-Inner diameter: 5mm-10mm, can be adjusted according to ice making time

-Length: 25mm-42mm



The machine for tube ice features:



 More thicker, transparent, nice appearance, long storage time, uneasy to melt, good  air permeability.





Perfect design: adopt 3D simulation assembly, compact structure, easy operation.

Health: ice maker adopts SUS304, PE, and aluminium material to process, and adopts big rounded excessive design, everywhere of the machine is easy to clean.

Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
Full automatical: PLC system controls the whole ice making process

tube ice machine

Perfect companion for your drinking in each season

Mainly apply for human consumption such as freeze drinks ,mixing wines ,cooling food stuffs ,and also

used for chemical cooling ,food processing ,fisheries ,poultry -processing ,meat plants etc .Welcome

for catering with the speial large production range from 1000kg/24hrs to 80T/24hrs attract more and

more ice factories found to sell ice in packed bags to a number of restaurant in cities ,which seems

gradually become a global trend ,such as Argentina in Brazil ,Malysia ,Singapore ,Indonisia ,

South-Africa...



Model/Parameters	IT1T-R4A	IT2T-R4A	IT3T-R4A	IT5T-R4A	IT10T-R4A	IT15T-R4A	IT20T-R4A
Ice productincapacity (kg/24hour)	1t/24h	2t/24h	3t/24h	5t/24h	10t/24h	15t/24h	20t/24h
Cooling capacity(KW)	6.9	13.65	19.8	30.6	63.2	85	118
Input power (KW)	4.69	7.7	11.3	16	34.1	43.25	57.95
Diameter(mm)	1380*900*1985	1500*1250*2000	1600*1300*2200	1700*1300*2250	2600*1500*3100	2600*1500*4100	2600*1500*4620
Ice machine Weight (kg)	930	1050	1280	1600	2750	3750	5200
Sizeofremote condenser		1528*1030*942	2828*1030*942





Freezer:Of high quality stainless steel for all water and ice contact surfaces providing corrosion

resistance ,all the material meet the HACCP REQU request .

Cutter:Stainless steel cutters driven

by gear motors are uniquely designed to pproduce cylindrical ice simply..

Control :Unique Vivid H-M Interactive control system with all failure and working status showing

alive in touch-screen .

The ice thickness could be adjusted by setting the icing time in the touch screen .



                                                          Technical parameters

 Refrigerant:R404A(R717)

 The evaporating temp./condensing temp.:-30°C/40°C

 Ice tube external diameter:¢22 ¢28  ¢35  ¢42

 Standard ambient/Water Temp.30 °C /20 °C
