2.1m cheap automatic Superlift garage door operator

  2.1m cheap automatic Superlift garage door operator

Automatic door motor:

1.   Easy install system                2.   Chain or Belt drive operation             3 .  Automatic safety reverse      4.   3 minute LED light delay                                5.   Manual release lever              6.   Soft start & Soft stop                                      7.  Metal bottom base                  8.   Electronic limit switch, simple adjustment 9.   Force measurement automatically adjustment                                                  10. Available terminal for photo cell, wall switch, battery back up                        11. Secure rolling code technology  12. Outer fuse makes more safety

Detailed Sectional Garage Door Description:

• Available in Chain drive and Belt drive,

• S66 will lock the door when power is off:this is our patent technology which can lock the opening door when power is offand neednt open the lock manually when power comes again. When the door moves to the closing position, the lock can open automatically and all the operationcan get normal.

• remote controls: 433.92MHz

• two types remote control are available as following show:

•

•

• Movement memory , soft start and stop, Controlled by microcomputer  . The soft opening and closing can decrease the impact to the door and prolong its service life

• Optional components choices: infrared photos witch, wireless keypads, alarm, emergency lock

•

• Auto reverse function: the opener can close the door automatically after a while whenthe door is at the opening position. The time can be set from 1 minute to 9minutes and also this function can be forbidden to act.

• Fault self-checking: S66 willself-check when it is under operating, if there is fault the code will beshowed on the LED. It is convenient for adjusting and maintaining

• Easy operation: owners can usethe LBD and nixie tube to adjust the parameter easily. By press the remotesbutton two times Self-checking could be finished and S66 will be available atonce after that.

Main technicalspecification:

Rated voltage:AC 220V±10%50Hz

Max.input power 250W/ 350W

Max lifting force: 800 N / 1000 N

Starting/closeing speed: 160mm/s

Lamp:12V  1×10W

Motor: DC 24 V

Remote control distance: ≥30m

Remote controlfrequency: 433.92 MHz

Circumstance temperature:-25 ^oC  +55^oC

Hardware parts for garage door motor:

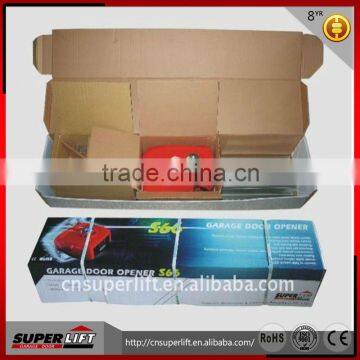

Sectional opener rail packing: easy for postage and express way

Delivery

-Sample for 1 day

-One container around 20days
