PU sandwich panel continuous double belt laminating conveyor
- 100 Set / Sets per Month
- Qingdao
- T/T
-
continuous color steel PU polyurethane sandwich panel production line
-
continuous color steel polyurethane sandwich panel production machine
-
continuous color steel polyurethane sandwich panel production line
-
continuous PPGI with PU foam sandwich panel production line
-
continuous color steel PU polyurethane sandwich panel production machine
-
continuous PPGI color steel PU foam sandwich panel production line
Product Details
| Place of Origin: | Henan, China | Brand Name: | Pioneer | Model Number: | continuous |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Succesfully exported full production line to USA2. Passed ISO9001:2008, ISO14001, OHSAS18000.
3. Superb after sale service
We are professional continuous sandwich panel production line manufacturer, the unique enterprise also manufacture PU sandwich panel in China. Passed ISO9001:2008, ISO14001, OHSAS18000, CE, RoHS. We have successfully exported PU sandwich panel continuous production line to U.S.A. in 2013.

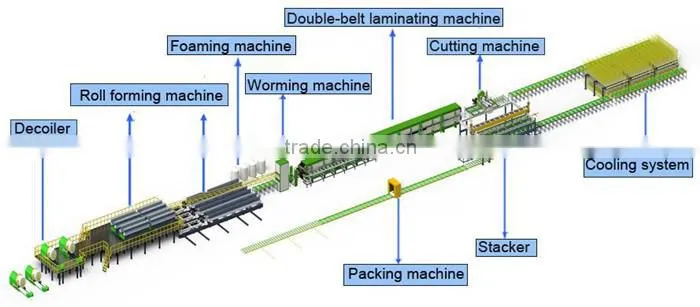

This picture shows components of complete production line:

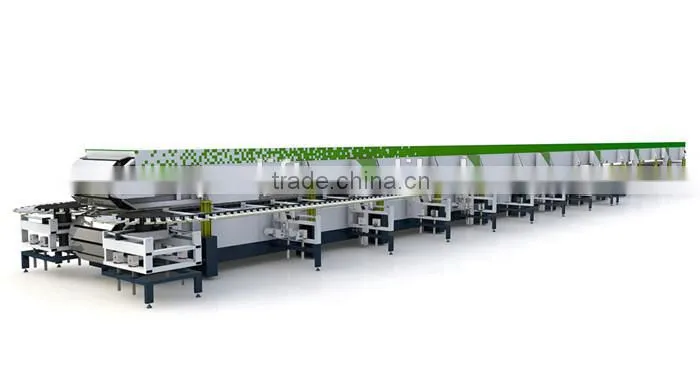

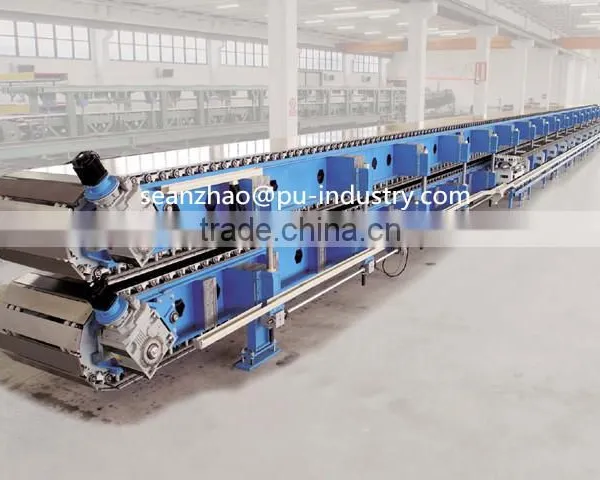

This is our equipment photo:
Technical parameter
Length of double belt machine | 18~ 36m |
Main motor | 2*3.8KW, Siemens motor |
The specification of producible sandwich panel | Thickness :20~300mm Width:400-1250mm |
Rated operating speed | 0~15m/ min |
Upper belt lifting | 20 sets elevator control, and connect with a rod, to ensure synchronization |
Double belt conveyor plates material | Low-alloy steel |
Production speed range | 0-12m/min |
Double belt conveyor plates pin shaft diameter | φ40mm |
Pin shaft material | Alloy steel |
Double belt conveyor plates precision flatness | ±0.1mm |
Synchronous lifting pillar | φ80mm |
Lifting motor power | 4 Kw |
Working height | 1.2m |
Side slealing block | 30-250mm, can be customized |
Guide Material | 9CrSi After the heat treatment, grinding, molding |

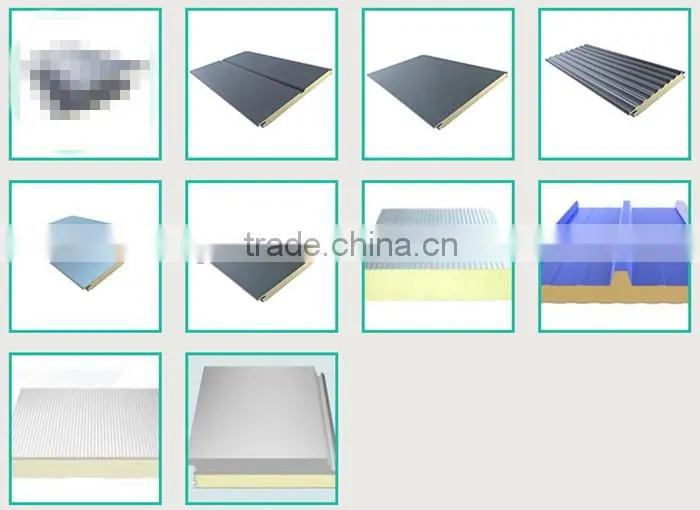

Panel drawing

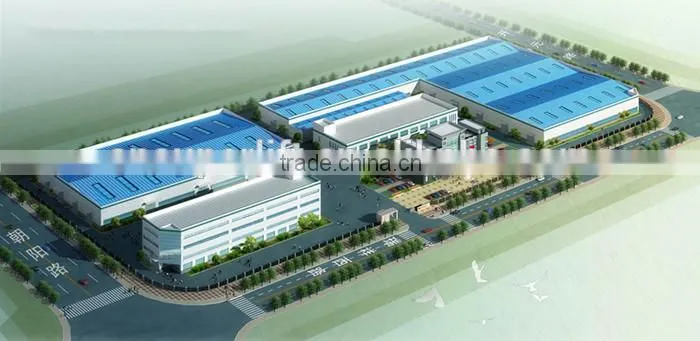

Factory overview
Welcome to view our factory video to know more about us:
/en/
You are welcome to e-mail me for more details!
