Product Details
Type: | Low Priofile LED Canopy | Certification: | ETL cETL DLC |
Product Description
-ETL, cETL, DLC listed
-5 years warranty
-40W, 60W, 90W
-120-277VAC/ 347VAC input
-5000K CCT standard
-High performance SMD LEDs
-Dark bronze finish standard
-Options: 0-10V dimming, photocell, motion sensor

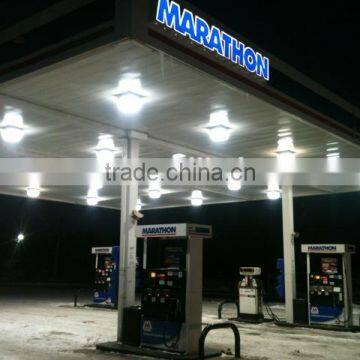

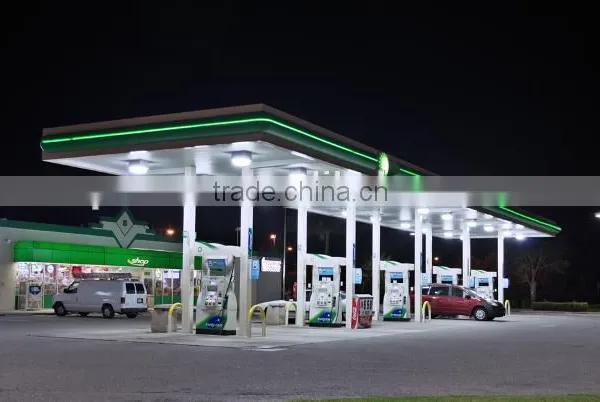

The CPSM90 surface mount LED canopy is a utility ceiling-mount fixture for general lighting applications in parking garages and gas stations, designed for easy installation and maintenance. The CPSM90 LED canopy delivers 7975 lumens at 5000K. The canopy accepts 120-277VAC, consumes 90 watts and produces luminous intensity equivalent to 400W metal halide. Available in motion sensor option, the CPSM90 LED canopy will further save energy during application.

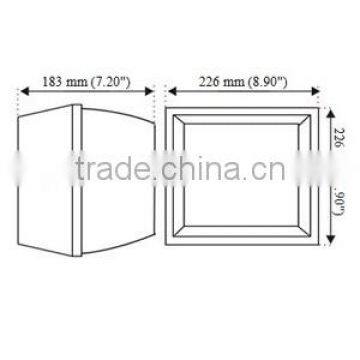

PHYSICAL SPECIFICATION | |
Length | 12.32” (313mm) |
Width | 12.32” (313mm) |
Height | 8.90” (226mm) |
Net weight | 9.92 lb (4.50 kg) |
Housing material | Die cast aluminum |
Finish | Bronze |
MOUNTING AND WIRING | |
Mounting | Recessed outlet box |
ENVIRONMENTAL SPECIFICATION | |
Operating temp. | -30–130°F (-34–54°C) |
Operating humidity | 20–85% RH, non-condensing |
Storage temp. | -40–140°F (-40–60°C) |
Ingress protection | Suitable for damp/wet locations |
ELECTRICAL SPECIFICATION | |
Input voltage | 120-277VAC, 50/60 Hz |
Input wattage | 90W |
Equivalent wattage | 400W MH |
Power factor | 0.90 min. |
Total harmonic distortion | 20% max. |
OPTICAL SPECIFICATION | |
Luminous flux | 7975 lm |
Efficacy | 95 lm/W |
CCT | 5000K |
CRI | 75 min. |
Lens | Polycarbonate lens |
LIGHTING CONTROL | |
Dimming capacity | Optional |
LONGEVITY AND WARRANTY | |
L70 life | 50,000 hrs. |
Warranty | 5 years |
LISTING AND CERTIFICATES | |
DLC (DesignLights Consortium) | |
ETL, cETL | |
CE, RoHS |
