MV2000/MV2025 COFDM Vehicle Mount Video Transmitter

Shenzhen Keweitai Enterprise Development Co., Ltd.
MV2000/MV2025 COFDM Vehicle Mount Video Transmitter thumbnail-1
MV2000/MV2025 COFDM Vehicle Mount Video Transmitter photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ALLTECH
Model Number:
MV2000/MV2025
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ALLTECH
Model Number MV2000/MV2025

Specifications

COFDM modulation and MPEG-2 video compression;
1.25/2.5MHz, 6/7/8MHz bandwidth optional;
frequency customized

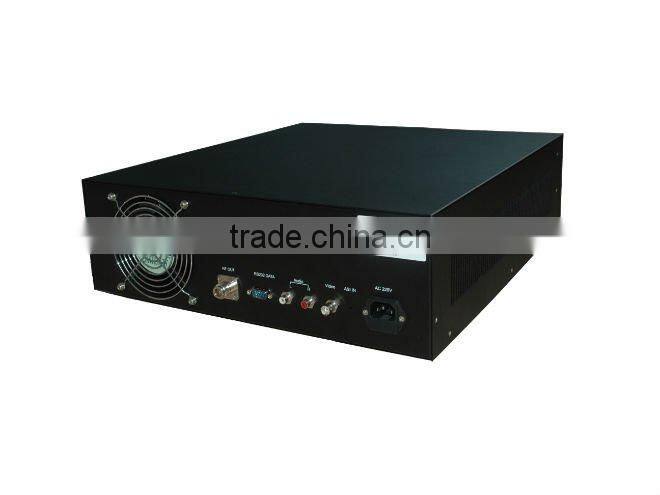

MV2000/MV2025 COFDM vehicle mount video transmitter

Introduction
The vehicle mountable wireless video transmitter is the ideal solution for establishing rugged wireless video links in all environments including high-speed motion and urban environments. Especially, the latest technologies of COFDM modulation and MPEG-2/MPEG-4 video compression ensure high quality of NLOS (non line-of-sight) transmission. This system is high-powered and can realize longer transmission range with stable, real-time and high definition images. This product can be mounted in a car or helicopter to transmit real-time audio and video to the commanding center.
Features

Inset high-powered amplifier and cooling fans
Stable transmission with omni-directional antenna
COFDM modulation and MPEG-2 video compression
Adjustable working frequency, LCD board displays the working frequency
Great security by encryption of AES 128 bit/ALLTECH Basic Scrambling
Rack mountable design, can be installed in a car or helicopter
Good transmission with high definition image and stereo audio
Stable transmission in NLOS(non line-of-sight)and high speed mobile condition.
The transmission range is 3-50km in NLOS(non line-of-sight)condition and more than 50km in LOS(line-of-sight)condition

MV2000/MV2025 COFDM vehicle mount video transmitter

MV2000/MV2025 COFDM vehicle mount video transmitter

Transmitter Specification

Frequency300MHz-399MHz,  400-500MHz (customized),
560MHz-760MHz, 760MHz-860MHz (customized)
1.0-1.4GHz (customized),2.3-2.5GHz (customized)
Frequency is adjustable continuously
BandwidthMV2000TJ20F: 6/7/8 MHz;MV2025TJ20E :1.25/2.5MHz ,6/7/8 MHz (optional)
Power Output41.5dBm~43.5dBm
Impedance50 Ω
RF InterfaceN female
ModulationCOFDM
ConstellationQPSK, 16QAM, 64QAM (optional)
FEC1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval1/4, 1/8, 1/16, 1/32
Coding ModeMPEG-2 /  MPEG-4 (optional)
Audio InputStereo
Antenna Interfacex1
Audio Inputx2
Video Input1Vp-p~1.2Vp-p@75Ω
Encryption:AES 128 bit / ALLTECH Basic scrambling
RS232 serial port for configuration
Temperature -25°C~ +45°C
AC InputAC220V50Hz   ≤ 2A@AC220V
Power Consumption160W (  Max )
Dimension467mm*425mm*132mm (3U Aluminium alloy box)
Weight13.8kg
