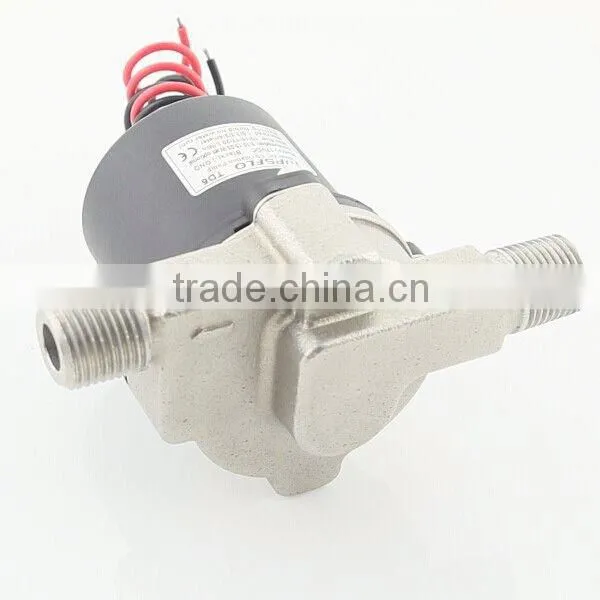

Stainless steel pump head and chamber beer brewing pump

Product Description

Cleaning

The head of the pump is made completely of stainless steel to reduce the risk of contamination.
1. Your regular cleaning should be to simply flush the pump with warm water or warm water with PBW.

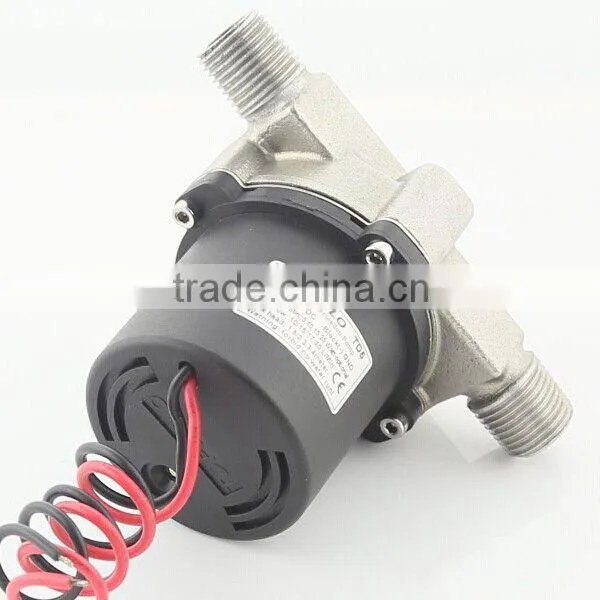

2. If you feel that a deep cleaning is needed, the head of the pump can be removed completely by removing the 4 screws on the back of the pump.
3. After removing the head from the main body of the pump you will find 4 screws attaching the head to the impeller housing. These can be removed to open the impeller housing of the pump. Now each part can be soaked as needed.
4. To reassemble please refer to the Structure diagram as above.

Warning

This pump is not self priming. Do not run dry. This Pump will start running when plugged in.Only use with the provided 24V DC power supply. Using the TD5 with another power supply may shorten the life of the pump.

Features:

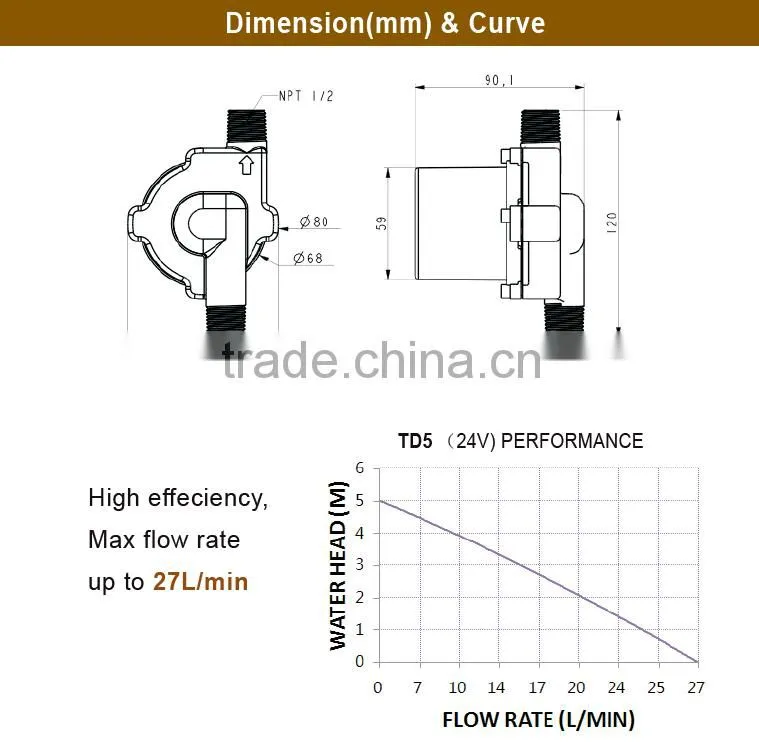

High effeciency, max flow rate up to 27LPM / 7GPM & head 5M /19FT

Can continuous working 24hours a day, long lifetime 20000hours

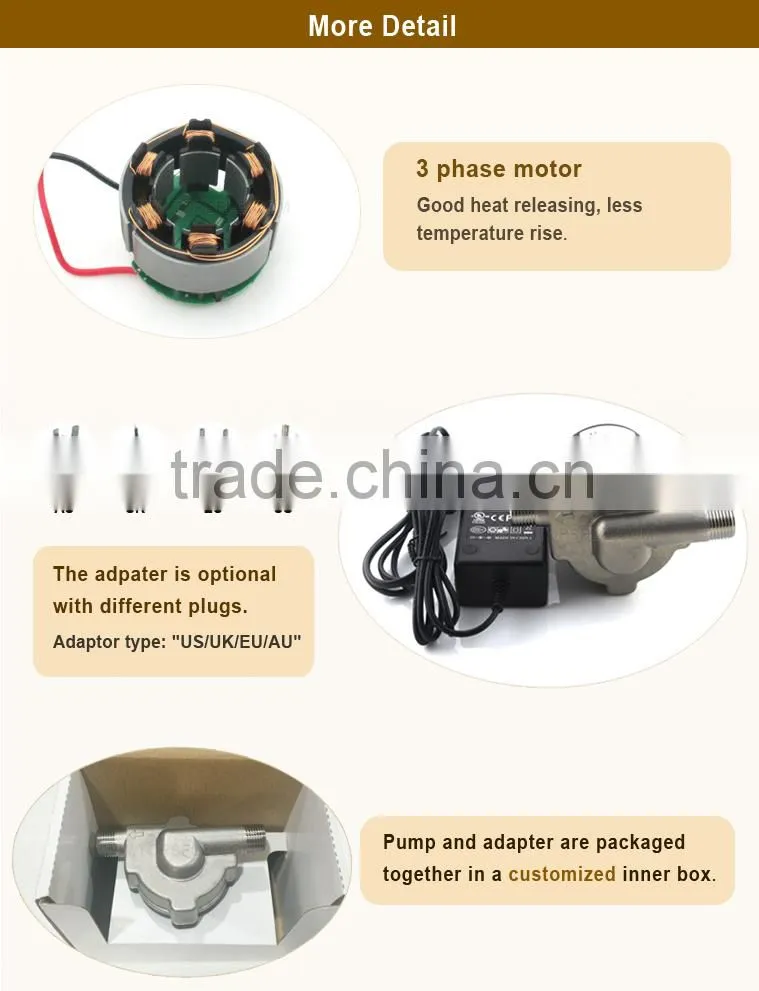

Good heat releasing, less temperature rise

Advanced magnetic driven technology, no leak forever

Blocked-Protection protection,Polarity Protection, Over-voltage protection

Delivery time:

1.The stock samples can be sent to you within 3-5 days by international express after received

2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)
