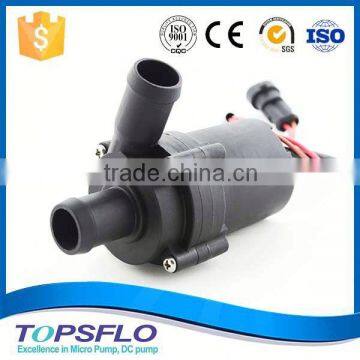

12v 24v dc brushless circulating auto feed pump
- 100000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
12v 24v dc brushless circulating auto engine water pump
-
brushless dc 12v circulation recirculation water car pump
-
brushless dc 12v 24v circulation pump for 12v electric car heater
-
12v 24v dc brushless circulating auto electric fuel pump assembly
-
12v 24v dc brushless vehicle cooling water pump
-
brushless dc 12v circulation heavy duty automobile water pump
Product Details
| Place of Origin | China | Brand Name | TOPSFLO | |
| Model Number | TA50 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, DC power, Battery, Solar panel | Pressure | High Pressure | |
| Application | Other, vehicle,car water circulating |
Product Description
12v 24v dc brushless circulating auto feed pump
♦ DC brushless motor with long lifetime
♦ Heavy duty work, can sustain continual 24 hours
♦ Sustain -40~120°C, suitable for extreme outdoor environment
♦ Durable permanent magnetic rotor/impeller & fineceramic shaft
♦ Advanced magnetic drive technology for static-impeller,without any leakage for ever
♦ The motor with big machine movement optimization design, has very low temp rise
♦ Automatic polarity protection, overload protection, block protection
special design to meet car vibration working condition
special design to meet car power supplying way which occur high peak voltage or
unstable voltage
♦ Equipped with specializing car water-against connector
♦ Applied liquid: pure water, antifreeze solution
♦ IP protection level : IP 67
♦ Low or no maintenance
♦ Low power consumption
| Model | Product Code | Max Flow Rate | Rated Voltage | Current | Max Water Head | Power |
| (L/M) | (Vdc) | (A) | (M) | (W) | ||
TA50 (-40°C~120°C) | TA50-12-1501 | 15L | 12 | 0.5 | 1 | 6 |
| TA50-12-2002 | 20L | 12 | 1 | 2 | 12 | |
| TA50-12-2502 | 25L | 24 | 1.1 | 2.5 | 13.5 | |
| TA50-24-1501 | 15L | 24 | 0.2 | 1 | 5 | |
| TA50-24-2002 | 20L | 24 | 0.5 | 2 | 12 | |
| TA50-24-2503 | 25L | 24 | 0.7 | 3 | 17 | |
| TA60 | TA60-12-3709 | 37L | 12 | 4.6 | 9 | 55 |
| TA60-24-3709 | 37L | 24 | 2.5 | 9 | 60 |
| Materials of Construction(wetted parts) | |||
| Wetted Parts | Materials | Wetted Parts | Materials |
| pump head | PPS | bearing sleeve | graphite |
| pump chamber | PPS | rotor magnetic | ferrite |
| o-ring | EPDM | shaft | stainless |
| impeller | Pa66 | gasket | Stainless |
