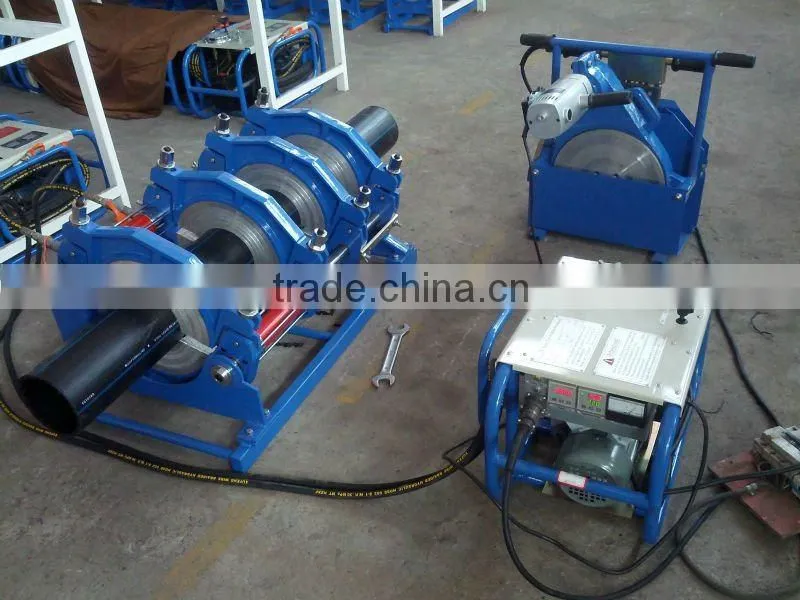

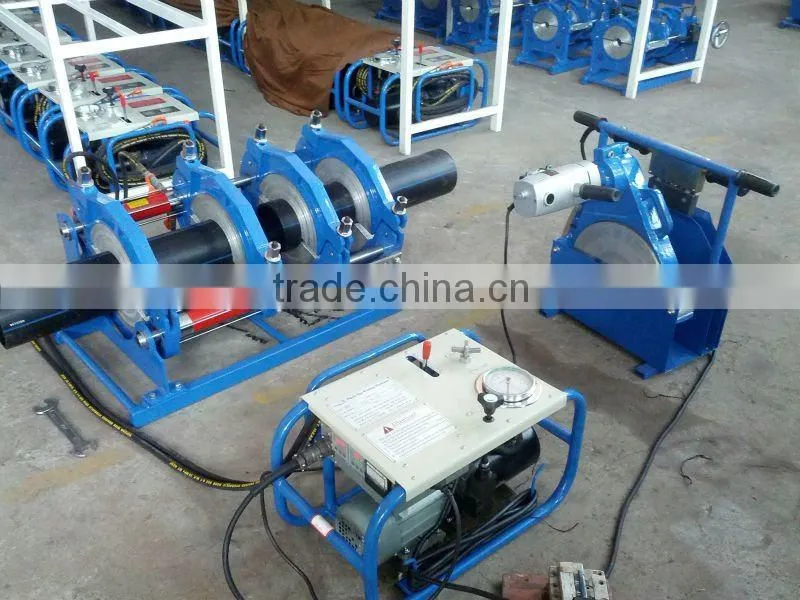

RDH315 butt fusion machine

Specifications

RDH315 butt fusion machine
1. welding range : from 160mm~ 315mm
2.application: water,gas,irrigation,drainage,construction

PE  Pipe Butt Fusion Machine:



PE Pipe Welding Machine,  But Fusion Welding Machine, Hot-melt Welding Machine, Hydraulic butt fusion welding machine. Hydraulic butt welding machine, HDPE butt fusion machine. Welding machine. Butt fusion Equipment





Application:



Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex

working condition.





Features:

1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.

2. Removable PTFE coated heating plate with separate temperature control system.

3. Electric milling cutter with reversible double cutting edge blades.

4. Hydraulic unit provides welding machine with compressing power.

5. Be made of lightweight and high strength material; simple structure and easy to operate.

6. Low starting pressure ensures reliable welding quality of small pipes.

7. Separate two-channel timer shows time in soaking and cooling phases.

8. High-accurate and shockproof pressure meter indicates clearer readings.







Model		RDH315
Pipe Size(mm)		160,180,200,225,250,280,315
Heating Plate Max.Temp		270°C
Temp.Deviation In Surface		less ±7°C
Pressure Adjustable Ranges		0-6.3Mpa
Working Voltage		220V,50Hz
Heating Plate Power		3.1kw
Planning Tooler Power		1.1kw
Hydraulic Unit Power		0.75kw
Total Power		4.95kw
Weight		205kg(Net)
Packing	Cases	Three Plywood Cases
	Volume	1.115CBM
