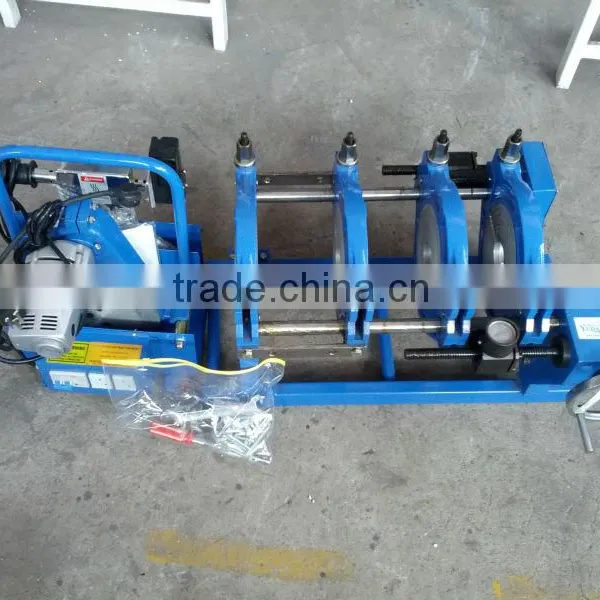

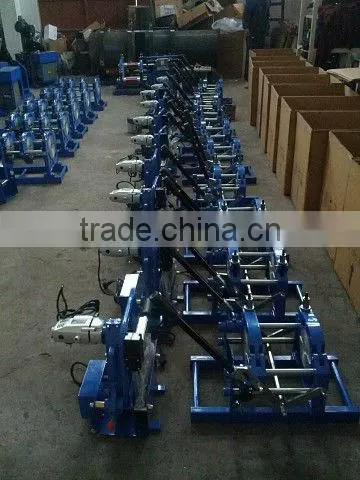

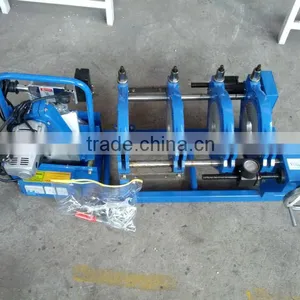

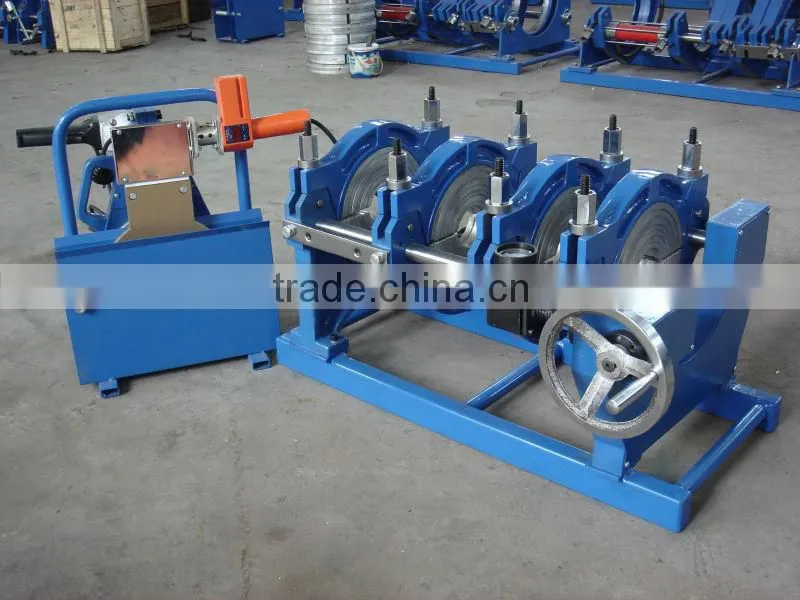

RDHS200 manual butt welding machine

Specifications

1. RDHS200/90 manual butt welding machine
2. welding range: 90~200mm
3. usage: construction, irrigation,water,gas.

RDHS 200/90  Manual butt  welding machine



HDPE plastic pipe welding machine, HDPE pipe butt fusion machine, HDPE pipe welding machine, PP pipe butt welding machine, manual butt fusion machine



Application:

Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex

 working condition.



Feature:

1.Removable PTFE coated heating plate with separate thermometer for reading the working temperature.

2.Electrical-controlled milling cutter for leveling the ends of pipe or fitting.

3.Be made of lightweight and high strength material,simple structure and easy to operate.

4. Welding ranges: plastic pipes: 63mm-200mm

(63mm-75mm-90mm-110mm-125mm-140mm-160mm-180mm-200mm)





Ranges of application: PE,PP and PVDF



Working voltage: ~220V ±10%,50Hz



 Total power: 2.5 kW , including: planing tool: 0.7 kW,  heating plate: 1.8 kW



Working voltage: ~240V ±10%,50Hz



PTFE coated heating plate, adjustable temperature control knob, difference in surface temperature ≤±3°, handy operation.



Environment temperature: -10° ~ 45°



Whole machine consists of basic frame, heating plate, planing tool, and support (for planing tool & heating plate)
