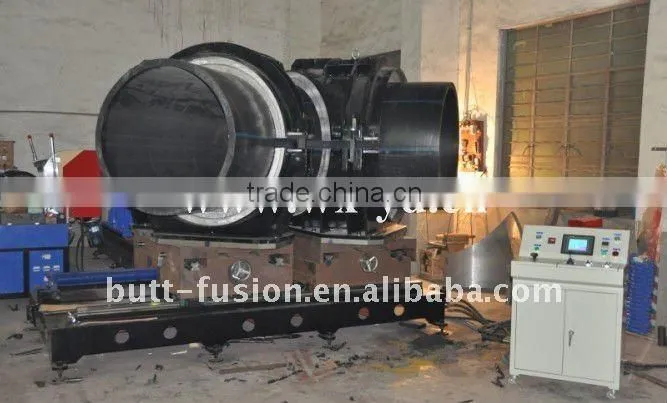

Elbow fitting welding machine

Specifications

1. welding range: 355mm~630mm
2. application: water, gas, irrigation, construstion, drainage, fire figthing, Sewage

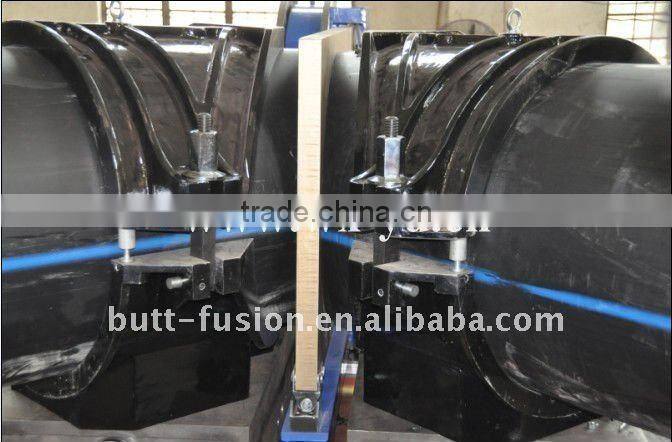

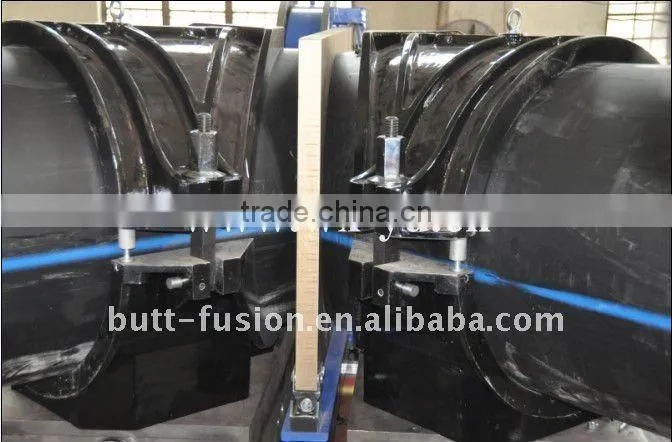

Elbow fitting welding machine



Application:

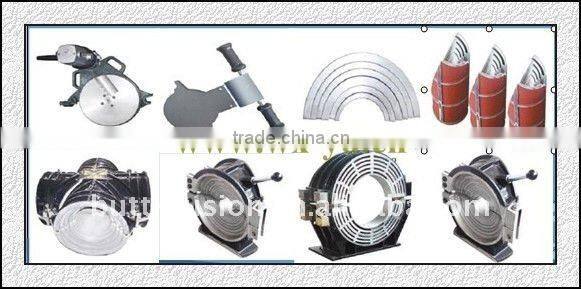

Suitable for fabricating elbow, tee, cross and wye shape(45°and 60°) Fittings of PE, PP, PVDF in workshop.



Welding range:

355—630mm in diameter



Features:

Removable PTFE-coated heating plate

Electric milling cutter with safety limit switch

Low starting pressure ensures reliable welding quality of small pipes.

Separate two-channel timer can show both of soaking and cooling time.

High-accurate and shockproof pressure meter indicates clearer readinds.

Pivoting milling cutter and heating plate bring Convenience to placing and removing.

Complies with 98/37 and 73/23 EEC standards.





Welding ranges of tee	355mm—400mm—450mm—500mm—560mm-630mm
Welding ranges of cross	355mm—400mm—450mm—500mm—560mm-630mm
Ranges of elbow   (n×1°)	355mm—400mm—450mm—500mm—560mm-630mm
Ranges of application	PE,PP and PVDF
Working voltage	~380V ±10%,50Hz
Environment temperature	-10° ~ 45°
Total power	planing tool motor: 2.2 kW,  heating plate: 22 kW,  hydraulic unit motor: 4 KW
components	basic frame ( including: heating plate, planing tool, and hydraulic system),  elbow  clamps, tee clamps, cross clamps and electrical box
heating plate characteristics	PTFE coated heating plate, high accuracy temperature controller, difference  in heating plate surface temperature ≤±7°
Other devices	Electronic count-down timers for heating and cooling time, PLC control  system



Welding ranges of tee and cross



110mm—125mm-140mm-160mm-180mm-200mm-225mm

-250mm-280mm-315mm



 Ranges of elbow   (n×1°)



110mm—125mm-140mm-160mm-180mm-200mm-225mm-250mm

-280mm-315mm



Ranges of application



PE,PP and PVDF



Working voltage



~380V ±10%,50Hz



Environment temperature



-10° ~ 45°



Total power



planing tool motor: 1.5 kW,  heating plate: 5.25 kW,  hydraulic unit motor: 0.75 kW



components



 basic frame ( including: heating plate, planing tool, and hydraulic system),

elbow clamps, tee clamps, cross clamps and electrical box



 heating plate characteristics



PTFE coated heating plate, high accuracy temperature controller, difference

 in heating plate surface temperature ≤±7°



Other devices



Electronic count-down timers for heating and cooling time.
