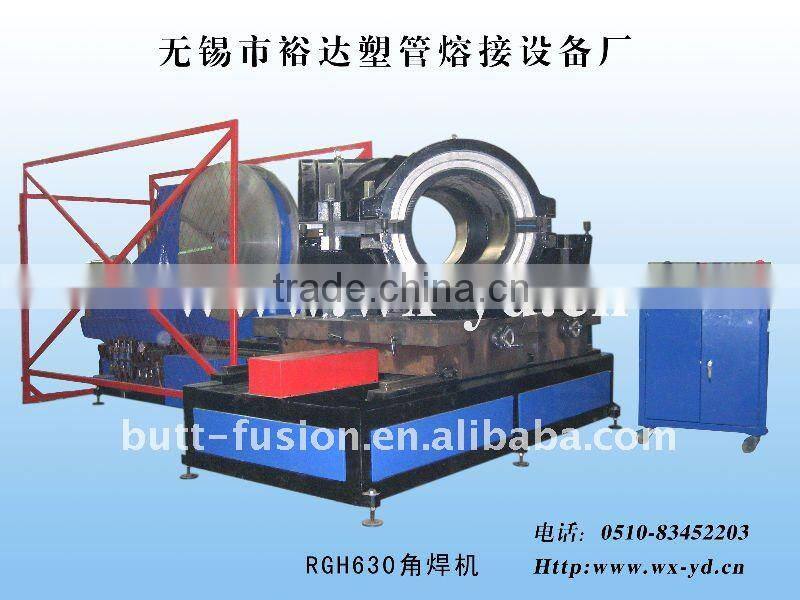

RGH630 butt angle joint welding machine for plastic pipe fittings
- 1 Set / Sets per Month
- SHANGHAI
- T/T
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | YUDA | Model Number: | RGH630 |
| Voltage: | 380V | Power: | 28KW | Frequency: | 50HZ |
| Dimensions: | 5CBM | Weight: | 3500KG | Usage: | fabricate elbow, tee,cross fittings |
Product Description
Specifications
1. welding range: 355mm~630mm2. application: water, gas, irrigation, construstion, drainage, fire figthing, Sewage
RGH630 butt angle joint welding machine for plastic pipe fittings
Multi-angle fitting machine, Multi-angle fitting welding machine, HDPE fitting welding machine, PP fittings welding machine, elbow fitting butt fusion welding machine, tee fitting welding machine. cross fitting welding machine
Application:
Suitable for fabricating elbow, tee, cross and wye shape(45°and 60°) Fittings of PE, PP, PVDF in workshop.
Welding range:
355—630mm in diameter
Features:
Removable PTFE-coated heating plate
Electric milling cutter with safety limit switch
Low starting pressure ensures reliable welding quality of small pipes.
Separate two-channel timer can show both of soaking and cooling time.
High-accurate and shockproof pressure meter indicates clearer readinds.
Pivoting milling cutter and heating plate bring Convenience to placing and removing.
Complies with 98/37 and 73/23 EEC standards.
Welding ranges of tee | 355mm—400mm—450mm—500mm—560mm-630mm |
Welding ranges of cross | 355mm—400mm—450mm—500mm—560mm-630mm |
Ranges of elbow (n×1°) | 355mm—400mm—450mm—500mm—560mm-630mm |
Ranges of application | PE,PP and PVDF |
Working voltage | ~380V ±10%,50Hz |
Environment temperature | -10° ~ 45° |
Total power | planing tool motor: 2.2 kW, heating plate: 22 kW, hydraulic unit motor: 4 KW |
components | basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, cross clamps and electrical box |
heating plate characteristics | PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±7° |
Other devices | Electronic count-down timers for heating and cooling time, PLC control system |
