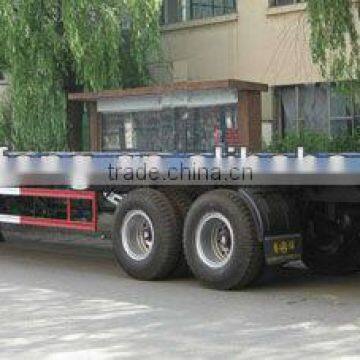

20",40" container Dual-axle Flatbed Semi-trailer ST9261TJZ
- 300 Set / Sets per Month
- QINGDAO
You May Like
-
ST9330TD Two-Axle Lowbed Semi-trailer 25T
-
20",40" container Tri-axle Flatbed Semi-trailer
-
Car Transportation Semi-trailer for sale
-
Tri-axle 20",40" container Flatbed Semi-trailer ST9401TJZ
-
two axles Skeletal 20" and 40" Semi-trailer for transport containers,32 ton payload
-
40 ton Tri-axle Flatbed Semi-trailer for container transportation
Product Details
| Type | Semi-Trailer | Material | Aluminum / Alloy | |
| Size | 12340mm*2490mm*1600mm | Max Payload | 31T | |
| Place of Origin | Shandong, China | Brand Name | LUFENG | |
| Model Number | ST9261TJZ |
Product Description
Specifications
Dual-axle Flatbed Semi-trailer ST9261TJZpayload:31T
Suspension:Dual-axle 11-pcs leaf spring suspension with equalizer beam
Dual-axle Flatbed Semi-trailer ST9261TJZ
General | ||||
Overall Dimension | 12340mm*2490mm*1600mm | |||
Tare Weight | 4900kg | Pay Load | 31ton | |
King Pin Setting | 1240mm | Rear Overhang | 1845mm | |
Track | 1840mm | Wheel base | 7950mm+1305mm | |
Running Gear | ||||
Suspension | Dual-axle 11-pcs leaf spring suspension with equalizer beam | |||
Tires | 11.00R20, 8units | |||
Axles | CNHTC axle, 13T capacity | |||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30 air chamber; parking brake | |||
Under Frame | ||||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | |||
Cross Beam | Mild Alloy Q235 | |||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | |||
Landing Gear | Single side operation or double side operation, Static capacity 25Ton | |||
Twist Locks | 12 lock positions with 8 twist locks | |||
Flatbed Floor | Checkered sheet, thickness 2.5mm | |||
Toolbox | 1 tool box, length 1.5m | |||
Electrical & Paint | ||||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||
Wiring | 24V, 6 lines | |||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |||
Paint | color upon request | |||
