Automatic Alloy Aluminum Profiles/Pipes/Rods Circular Saw Cutting-Off Machine(Two saws)
Parameter
♥Cutting angle: 45 * 2
♥Maximum cutting width: 85mm
♥Maximum cutting height: 120mm
♥Spindle speed: 3800R / PM
♥Applicable grain tungsten steel alloy blade circular saw blades: 355 * 254mm
♥Working table size: 1260 * 300 * 800mm
♥Voltage: 380V, 50HZ.
♥Motor power: 2.2KW * 2
♥Total power: 5KW
♥Working pressure: 6kg / cm2
♥Dimensions: 1260 * 820 * 1390mm
♥Net / Gross weight: 350 / 430kg
♥Ambient temperature: When using the 0 ~ 55 °; when you save -15 ° ~ 70 °
♥Use height: 2000m or less
When you start it ,the spindle is at high speed. It can cut two angles 45-degree at the same time. Its cutting angle is very precise. This double head angle 45-degree corner cutter can cut material of MDF board/solid wood board / Aluminum Extrusions/Solar borders/Light Box/Outlet/Cabinet Edge etc.
Its cutting surface very smooth ,no glitches without secondary processing.
Its Applicable saw blade is alloy grain tungsten steel circular saw blades.
This cutter is high efficient. Its yield is three times than generally single-head machine.
Double head angle 45-degree corner cutter is easy to operate.Double saws start to operate and cut at the same time. Footing once time is to fix your material and footing again is to cut. After sawing , it can reset automatically . It can saw two 45-degree angles , it can save your half time .
Advantages
♥In one setting page, you can set ten size. For one size, you can write 90pcs cutting quantity. It is better that there are 99 setting pages totally in this machine. So that means totally you can set 990 different cutting size.

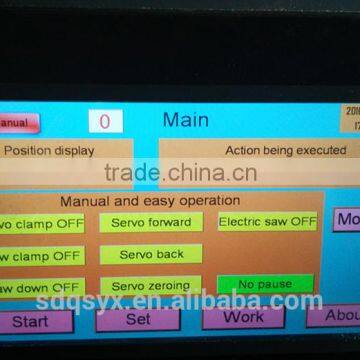

♥PLC is Mitsubishi FX series, Taiwan WEINVIEW Touch Screen
♥Copper wire Aluminum motor. Stepper motor with three extension
♥Saw guide rail: Side rails and slider. Accuracy is 0.03mm.
♥We use well-known brands for Low voltage components
♥Fast working efficiency. 15-25M/minute.
♥Automatic lubrication system, so Reduce the damage to the machine.
♥Chinese-English Conversion freely.
♥Automatic feeding and cutting pressure
♥Full enclosure to ensure the working man safty.
♥Swing up and down movement in average speed, cutting speed stable, sharp cutter.
♥Precise cutting angle. Cutting Material is solid, no distortion
♥For Machines Package, we will pack it in the plywood box to ensure the safe transportation. We will ensure that the machine is well after you got it.
♥For shipping, i suggest that we send it to you by sea. It is very cheap and the delivery cost is reasonable.
After you send payment to us, we can send out machine in about 7-10days. It is very fast
