fertilizer blending plant/Compound Fertilizer Production Line Machinery organic fertilizer equipment

Bio-Organic / Compound Fertilizer Production Line Machine and Solution

Description of Organic Fertilizer Production Line:

This organic fertilizer production line (organic fertilizer equipment) is designed based on advanced, mature and complete equipment technologies. Its fermentation system can simultaneously make the best use of solar energy, bioenergy and mechanical energy, so this equipment can save energy to the largest extent.

The annual production capacity of this equipment varies from 10kilotons to 200kilotons.

The whole fertilizer production process is centralized controlled, so this fertilizer machine is highly automatic and easy to operate. And both of the batching system and the packing system are controlled by the computer, thus ensuring the precision of material batching and fertilizer packing.

Organic fertilizer production line is a complete set of equipment from raw materials collection to the organic fertilizer packing.

1) Organic Materials Fermentation Process: Which plays the preliminary but indispensable role in the whole production line. Two main types of compost turner are widely used to turn and mix the compost and accelerate the fermentation speed, Self-propelled compost turner and hydraulic compost turner.

2) Crushing Process: The compost lump materials should be grinded before the granulating process. But we can leave out crushing process when the compost material is fine enough. Vertical chain crusher and double-shaft horizontal crusher, two types of crushing machine can be used to crush lump compost fertilizer raw materials.

3) Mixing Process: two types of mixing machine are applied to mix raw materials in the fertilizer production line: horizontal mixer and vertical mixer.

4) Granulator Process: Granulating process is the core part in this production line, so we choose the suitable model of fertilizer granulator according to customers detailed requirements. Disc granulator machine can be chosen to granulate the materials evenly.

                                                Rotary Drum Granulator

                                                   Disc Pan Granulator

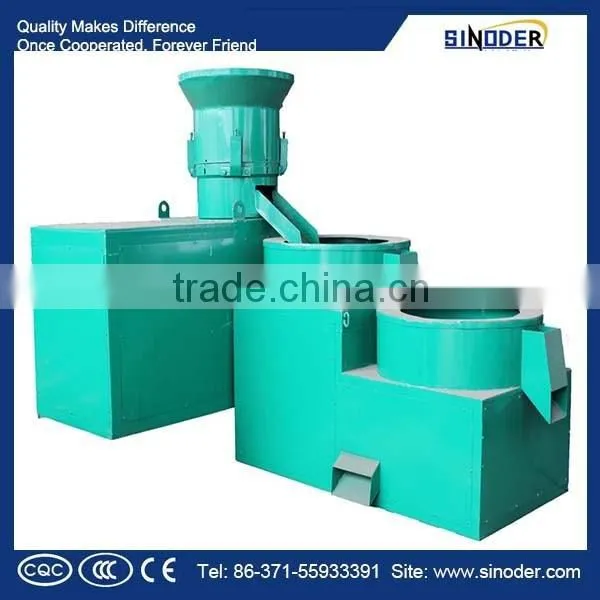

                          Vertical Pellet Machine and Ball Shape Making Machine

5) Drying Process: When granulating, the moisture of fertilizer raw materials should be less than 25%, so we should dry the raw materials if the moisture is more than 25%.Rotary drum drying machine is mainly used for drying the fertilizer with a certain degree of humidity and particle size.

6) Rotary Drum Cooling Machine: Which is used for cooling fertilizer to make fertilizer particles stronger.

7) Rotary Drum Screening Machine: which is used to separate the granules from the large particles which need to be returned for the second crushing and granulating. Rotary drum coating machine is used to coat the fertilizer

and prevent the fertilizer from sticking together.

8) Rotary drum coating machine is used to coat the fertilizer and prevent the fertilizer from sticking together.

9) Packaging Process

NPK Compound Fertilizer Granulation Production Line

NPK (Nitrogen, Phosphorus and Potassium) compound fertilizer granulation equipments are a kind of commonly used fertilizer equipment for producing both organic fertilizers and inorganic fertilizers. Its annual production capacity ranges from 10KT to 500KT. Hence, if you need either organic fertilizer equipment or inorganic fertilizer equipment, please feel free to contact us.

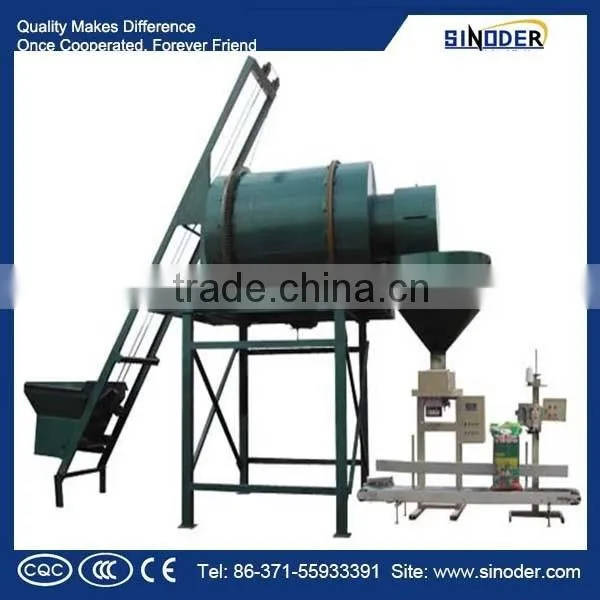

Product Process of Batch Type BB Fertilizer Production Line

PLC control system of computer --> Automatic proportional batching raw materials --> Lifting by slope scraper --> Mixing by roller --> Mixed materials disposed into storage silos of weighing machine --> Quantitative packaging (10-50kg/bag) --> Conveying and sewing --> Finished product pelletizing storage.

Our Fertilizer Plant Features:

1. Equipped with advanced fertilizer manufacturing technique, this fertilizer production line can finish fertilizer granulation in one process.

2. Adopts advanced rotary drum granulator, granulating ratio is up to 70%, high intensity of granules.

3. The inner cylinder body adopts high quality rubber plate lining structure which prevents the raw material from sticking on the plate.

4. Wide adaptability of raw materials, suitable for compound fertilizer, pharmaceuticals, chemicals, fodder and so on.

5. High-quality, stable performance, anti-corrosion and wear-resistant materials components, abrasion proof, low energy consumption, long service lifespan, easy maintenance and operation, etc.

6. High efficiency and economic returns, and the small part of feeding back material can be granulated again.

7. Adjustable capacity according to customers’ requirements.

1. Intallation and debugging.

2. Training workers.

3. 1 year warranty: free change spare parts and maintainence.

4. Big problems , we will arrange engineers to maintain for customers.

5. We also supply the turkey projects from providing steel structure workshops to oil production.

About more deatils, welcome to contact with us.

Sinoder COMPANY INTRODUCTION

Sinoder Enterprise company has developed main equipment for the production of compound fertilizer including: rotary drum granulator, rotary dryer, rotary cooler, rotary conditioning drum(coating drum) and slurry-spraying granulation dryer by using diverse processes such as agglomeration, urea-based slurry and sulfur-based NPK etc. The series of equipment manufactured by the company has attained advanced technological level that is capable of meeting an annual output requirement between 10,000-300,000 tons. Our customers come from all over China and also from countries such as the Philippines, Indonesia, Thailand, Pakistan, Bangladesh and Jordan, etc. The company hence becomes the enterprise in China that enjoys the longest history, covers the largest geographical market, has a longest customer list and a most complete spectrum of products in the developing and manufacturing of the main four pieces of equipment for production of compound fertilizers.

GOOD BUSINESS BEGIN FROM SINCERELY NEGOTIATION.

Please don't be precious little words.

Let us know your idea, no matter what it is.

We will service you all the time no matter what time you come back.

If you like our product, please contact me:

maybe the following question we should know before we give you the solution and quotation:

a, what is your raw material ? what is your detail requirments?

do you want to produce fertilizer pellets or fertilizer powder?

b, what processing capacity do you plan to process?

c, what is your detail plan? what kind of finished product do you need?
