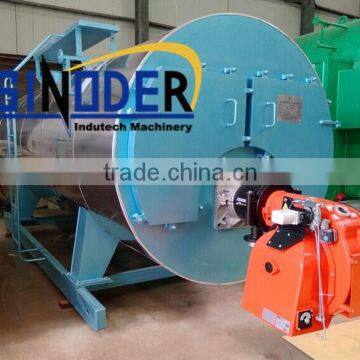

Supply Light Oil Fired Steam Boiler of Fire Tube Water Tube Type Light Oil Fired Water / Steam Boiler -SINODER

Specifications

Supply Wood Fired Steam Boiler, Electric Heating Boiler, Oil Fired Boiler, Gas Fired Boiler, coal fired steam boiler -SINODER

Supply Industrial Steam Boiler, Electric Heating Boiler, Oil Fired Boiler, Gas Fired Boiler, coal fired steam boiler -SINODER

Coal Fired Boiler of SZL Double Drums Series Grate Type Coal Fired Hot Water / Steam Boiler

Gas/Diesel Oil Fired Steam Boiler,Electric Heating Full Automatic Steam Boiler



1. Oil /Gas Fired Boiler                                                         2. Coal/Biomass Fired Grate type Boiler



3. Power Station Boiler                                                       4. Thermal Oil Boiler



5. Waste Heat Recovery Boiler                                         6. Coal Water Slurry Fired Boiler



7.Hot Air Stove                                                                      8.Electric Boiler

9.Fluid Bed Boiler                                                               10. Boiler Auxiliary Equipment





Industrial Boiler General Description
1. Product description:	coal or biomass fired Industrial boiler industrial steam boiler prices
2. Rated capacity:	0.3 to 30ton/hour
3. Rated pressure:	1.25Mpa
4. Rated temperature:	194°C
5.Fuel:	coal, gas, oil, biomass etc
6.Model:	WNS, DZL, SZL etc. industrial steam boiler or hot water boiler
Terms
1. Price Term:	FOB, CIF, DAF etc.
2. Manufacturing Code:	China GB standard
3. Delivery Time:	10-40days
4. Power supply:	380V/230V/260V/440V, 60Hz/50Hz, 3Phase
After Sales Service:	2years to boiler main part with full life after-sales sales and spare parts available
Certification:	Boiler quality certificates, installation drawings, user manual etc.



The technical parameters:

Item			Model Unit	DZL-1-0.7-AII	DZL1-1.0-AII	DZL2-1.0-AII	DZL2-1.25-AII	DZL2-1.6-AII	DZL3-1.25-AII	DZL4-1.25-AII	DZL6-1.25-AII
Rated steam evaporation			t/h	1		2	2	2	3	4	6
Rated steam pressure			Mpa	0.7	1	1	1.25	1.6	1.25	1.25	1.25
Rate steam temperature			'C	170	184	184	193	204	193	193	193
Water supply temperature			'C	20	20	20	20	20	20	20	20
Heating area	main body	emissions		614	6.14	6.8	16.8	16.8	17	24.68	37.2
		convection	m2	214	21.4	44.5	44.5	44.5	50.1	71.07	107.5
	economizer					28.2	28.2	28.2	33.12	42.24	130.8
chain grate effctive area			m2	2.4	2.4	3.42	3.42	3.42	5.6	6.6	7.6
fuel consumption			kg/h	113	115	223	227	230	380	450	670
maximum transportation size			mm	4747*2131*2866	4745*2131*2866	6051*2482*3051	6051*2481*3052	6052*2502*3151	6202*2802*3421	7456*2921*3431	7889*3032*3456
maximum installation size			mm	4745*2555*3065	4746*2555*3066	6051*3622*4234	6051*3622*4236	6051*3841*4236	6204*4507*4771	7455*4241*5083	7889*4573*5436
boiler room size			m	10*9*6	10*9*6	12*10*7	12*10*7	12*10*7	12*10*7	14*11*7	14*11*7
maximum transportation weight			t	14.4	14.5	19.7	19.7	21.8

 Usage: for chemical plant, Printing and Dyeing industries, rice mill, Paper making, Leather Factory, disinfection, food processing, textile industries, laundry, hotel, school, greenhouse heating, central heating etc.



Supply Cope of industrial Steam Boiler
Product name	Quantity (set)
I. Boiler main part	1
1. Draft fan	1
2. Forced fan	1
3. Electric control box	1
4. Valve & Gauge used on boiler main part	1
5. Grate speed reducer	1
6. Water pump	2
7. Steam dividing equipment	1
8. Smoke chimney	1
9. Smoke ducting	1
10. Economizer	1
11. Fuel feeder	1
12. Slag remover	1
13. Dry-type Dust Collector	1
14. Water treatment equipment	1
The above is standard; Other equipments are available, like Wet scrubber, air-preheater, deaerator, pressure tank, condensed water recycling equipment, heat exchanger etc.





Company honor and qualification:

1, A-class boiler production, design qualification;

2, Three kinds of pressure vessel production, design qualification;

3, level 1 boiler installation qualification

4, ISO 9001 quality management system certification

    ISO 14001 environmental management system certification

    ISO 18001 occupational health management system certification,

5.China's environmental protection product certification.

6, AAA credit rating

RFQ

(1).Q:Where is your factory located? How can I visit there?

A: our factory is located on Zhengzhou, henan, China

All our clients, from home or abroad, are warmly welcome to visit us!

(2).Q:What is the type of your products?

A:  Coal-fired boiler and oil-fired boiler, gas boiler, etc

   DZH/DZL/SZL/SZS/WNS/YGL/YGW/YLLseries

(3).How long do you need the delivery time

A:  About 30 days,According to the product.

(4).What is the MOQ?

A: Our MOQ is 1 set ,but if you have other requirements, please contact us.

(5).Payment Terms

A.L/C( high bank charge, not suggest , but acceptable )

B.T/T( 70% deposit , 30% before shippment)
