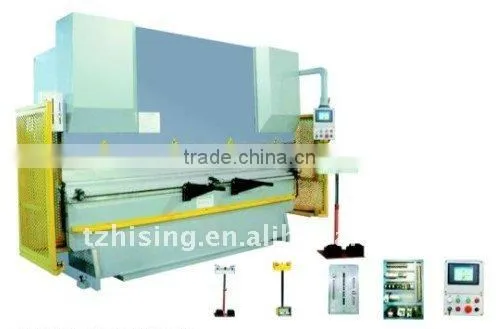

WC67Y Series CNC Hydraulic Press Brake

Name: WC67Y Series CNC Hydraulic Press Brake
Brand: TZHISING
Availability: InStock

FOB Price

USD $8,500 - $25,500 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Power Source	Hydraulic	Place of Origin	Shandong, China
Brand Name	TZHISING	Model Number	WC67K-400/4000
Voltage	Customized	Power(W)	7.5KW
Weight	1-6T	Dimension(LWH)	3800mmx1900mmx1900mm
Certification	ISO9001:2008	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

WC67Y Series CNC Hydraulic Press Brake : for the specification and the detailed information of the product, pls see the photo.

Model	nominal pressure(kn)	length of working table(mm)	distance between two colums(mm)	throat depth(mm)	travel distance of back-gauge(mm)	stroke of the ram(mm)	stroke adjustment of the ram(mm)	stroke number(time/min)	max.open height(mm)	oil tank vol	motor power (kw)	Net weight	Gross weight	dimensions(mm)LWH
WC67K-20/1320	200	1320	1005	200	400	80	70	10	245	80L	4	1.5	1.8	170016002100
WC67K-30/1320	200	1320	1005	200	400	80	70	10	245	80L	4	1.5	1.8	170016002100
WC67K-40/1320	400	1320	1005	250	600	100	80	10	340	85L	4	2	2.5	170016002100
WC67K-63/2500	630	2500	2050	250	600	100	80	8	335	280L	5.5	5	5.5	300017002350
WC67K-80/2500	800	2500	2050	250	600	100	80	8	355	280L	7.5	6.5	7	300017002350
WC67K-80/3200	800	3200	2700	250	600	100	120	8	355	300L	7.5	7.5	8	390017002450
WC67K-100/2500	1000	2500	2050	320	600	150	120	8	415	280L	7.5	7.5	8	310018002560
WC67K-100/3200	1000	3200	2650	320	600	150	120	8	415	300L	7.5	8.5	9	390018002560
WC67K-100/4000	1000	4000	3150	320	600	150	120	5	415	370L	7.5	9	10	450018002580
WC67K-125/3200	1250	3200	3650	320	600	150	120	8	415	550L	7.5	8.5	9	390019002580
WC67K-125/3600	1250	3600	2850	320	600	150	120	8	415	300L	7.5	8.8	10.5	395019002580
WC67K-125/4000	1250	4000	3150	320	600	150	120	8	415	370L	7.5	9	10.5	470019002580
WC67K-140/4000	1400	4000	3150	320	600	150	120	8	415	370L	11	10	11.5	470022502580
WC67K-160/3200	1600	3200	2600	320	600	200	160	8	455		11	11	12	410018002650
WC67K-160/4000	1600	4000	3150	320	600	200	160	8	455		11	13	14	480019002700
WC67K-200/3200	2000	3200	2600	320	600	200	160	8	455		15	11.5	12.5	420020002750
WC67K-200/4000	2000	4000	3150	320	600	200	160	8	455		15	15	16	480020002750
WC67K-250/4000	2500	4000	3150	400	600	250	200	8	660		15	17	18	480020002750
WC67K-400/4000	4000	4000	3280	400	600	250	200	6	735		37	35	36	500027004000
