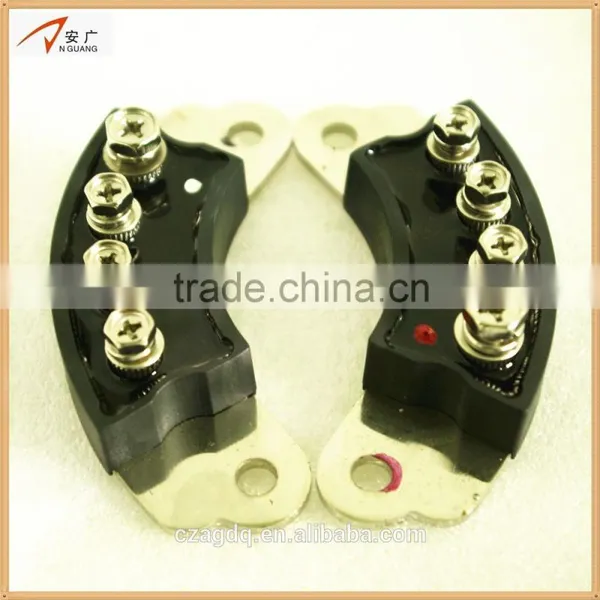

China Wholesale High Quality Silicon Rectifier

Name: China Wholesale High Quality Silicon Rectifier
Brand: Anguang
Availability: InStock

FOB Price

USD $15 - $50 / Piece

100 Pieces(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Anguang
Model Number	MXG(Q)*	Type	Bridge Rectifier
Application	Generator	Package Type	Surface Mount
Peak Repetitive Reverse Voltage	400V-1800V	Mean On-State Current	25A-70A

Packaging Details

Depending on the product size, but all ship with standard, secure packaging or customized for Silicon Rectifier

Product Description

Silicon Rectifier

Product Description

1)ISO9001 & CE

2)10 years professional technical

3)As manufacturer with high quality and low price.

Features

1.High Reliability

2.Low forward voltage drop

3.Space and weight saving

4.Withstand voltage AC 2500v

5.Max junction temperature up to 150°C

6.Simple mounting and easy maintenance
7.Solder joint technology with increased power cycling capability

Applications

Generator Excitation

Specially Designed For Stamford Series Products.

Silicon Rectifier Circuit Diagram:

Technical Data

Silicon Rectifier

TYPE	IT(AV)	VRRM	ITSM	VTM	IDRM	VISO	RTH
	IF(AV)	VDRM	45℃10ms	VFM	@Tc		RTH
	A	V	A	V	mA	V	℃/W
MXG(Q)*	25	400-1800	350	≤1.3	≤2	2500	0.32
MXY(Q)*	40	400-1800	530	≤1.3	≤2	2500	0.26
MXG(Ⅰ)*	40	400-1800	530	≤1.3	≤2	2500	0.26
MXY(Ⅰ)*	50	400-1800	650	≤1.3	≤2	2500	0.34
MXG(Ⅱ)	40	400-1800	530	≤1.3	≤2	2500	0.26
MXY(Ⅱ)	50	400-1800	650	≤1.3	≤2	2500	0.3
MXG(Ⅲ)	25	400-1800	350	≤1.3	≤2	2500	0.32
MXY(Ⅲ)	40	400-1800	530	≤1.3	≤2	2500	0.26
MXGIV)	50	400-1800	650	≤1.3	≤2	2500	0.3
MXY(IV)	70	400-1800	900	≤1.3	≤3	2500	0.26
MXG(V) MXY(V)	50	400-1800	650	≤1.3	≤2	2500	0.28
	70	400-1800	900	≤1.3	≤3	2500	0.24
	100	400-1800	1300	≤1.3	≤3	2500	0.19
MXG(VI)	40	400-1800	530	≤1.3	≤2	-	0.2
MXY(VI)	50	400-1800	650	≤1.3	≤2		0.29
MXG(VII)	50	400-1800	650	≤1.3	≤2	-	0.21
MXY(VII)	70	400-1800	900	≤1.3	≤3		0.19
