Home > Products > Female Header > 2.54mm pitch straight dip type double row female header connector

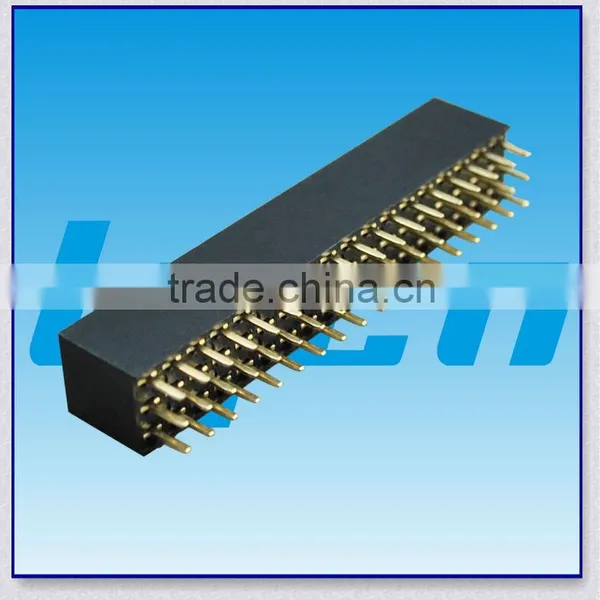

2.54mm pitch straight dip type double row female header connector
- 10000000 Piece / Pieces per Month
- FOB shenzhen or FOB HK
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LYCN | Type: | Other, pcb header |
Application: | PCB | Gender: | Female |
Product Description
2.54mm pitch straight dip type triple row female header
SPECIFICATIONS:
Current Rating: 3.0A
Contact Resistance: 30MΩ Max
Insulation Resistance: 1000MΩ Min
Withstand Voltage: 600VAC/minute
Operation Temperature: -40ºC to +105ºC
MATERIALS:
Contact Material: Phosphor Bronze
Contact Plating: Gold or Tin over 50μ '' Ni
Insulator Material: Polyester(UL94V-0)
Standard: PBT
Others:
1. Pitch: 2.54mm
2. Insulator Height: 8.5mm
3. DIP Spacing: Triple Row
4. Number of Pins: 03~120Pin
5. Tail & Mounting Style: S=Syraight DIP Type
6. Contact Plated: Tin/Gold Flash(Gold 1u'')/Gold 3u''/Gold 5u''/Gold 10u''/Gold 15u''/Gold 30u''
7. Material Type: PPS/PBT/LCP/Nylon-66/Nylon-6T/PA6T
8. Package Options: Tube Tape and reel package
