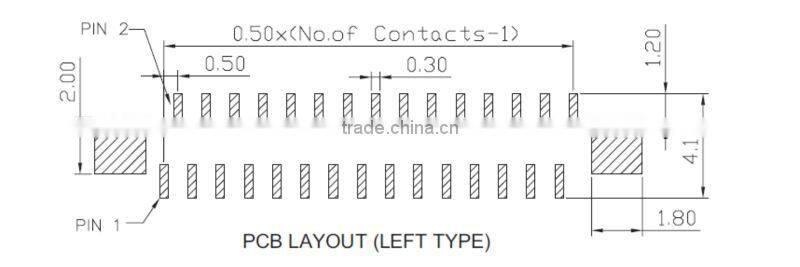

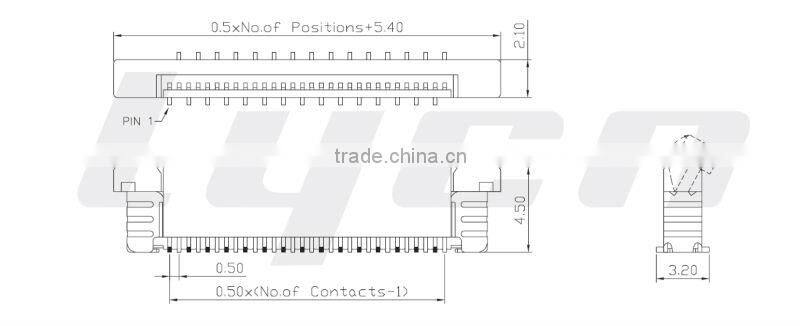

FPC/FFC Connector Pitch 0.50mm SMT/Left Type Vertical Contact
- 100000000 Piece / Pieces per Month
- FOB Shenzhen or FOB HK
- FPC/FFC Connector Pitch 1.00mm SMT/Left Type Vertical Contact
- FPC/FFC Connector Pitch 0.50mm SMT Type/Upside Contact
- FPC/FFC Connector Pitch 0.50mm SMT/Right Type Vertical Contact
- FPC/FFC Connector Pitch 1.00mm SMT Type/Upside Contact
- FPC/FFC Connector Pitch 1.00mm SMT Type/Down Contact
- FPC/FFC Connector Pitch 1.00mm SMT/Right Type Vertical Contact
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LYCN | Model Number: | FPC |
Packaging Details
Standard export carton box
Product Description
Specifications
Connector Pitch 0.50mm SMT/Left Type Vertical Contact1.Pitch: 0.50 mm
2.Current Rating: 0.5AMP
3.Withstand Voltage: 200VAC
FPC/FFC Connector Pitch 0.50mm SMT Type/Upside Contact
Specifications:
Pitch: 0.50 mm
Poles: 4~50
Voltage rating: 60V DC/AC(rms)
Current Rating: 0.5AMP
Contact Resistance: 30mΩ Max
Insulation Resistance: 500MΩ Max
Withstand Voltage: 200VAC/minute
Operation Temperature: -20°c to +85°c
Single Contact
Materials:
Contact : Phosphor Bronze
Solder tab: Stainless steel
Plating : Tin over 50μ Ni
Housing : High-temp thermoplastic(UL94V-0)
Solider: High-temp thermoplastic(UL94V-0)
