2g 3g Dual Band gsm repeater ,cell phone signal 900 2100 Repeater

Name: 2g 3g Dual Band gsm repeater ,cell phone signal 900 2100 Repeater
Brand: Kingtone
Availability: InStock

FOB Price

USD $1 - $1,999 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port XIAMEN
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Fujian, China

Brand Name:

Kingtone

Model Number:

KT-G/WRP-B25/60-B

Packaging Details

1,Cartons lined with safety foam; 2,Customized;

Product Description

2g 3g Dual Band cell phone signal receiver 900 2100 Repeater

Description:

RF Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS).

GSM/WCDMA Signal Repeater are very effective equipment that can offset the covering shortage of the base station of the mobile network, expand the cover range of the base station and fill the signal blind zone to ensure the convenient and pleasant communication.

2g 3g Dual Band cell phone signal receiver 900 2100 Repeater Features:

l High linearity PA; High system gain;

l Intelligent ALC technology;

l Full duplex and high isolation from uplink to downlink;

l Automatic Operation convenient operation;

l Integrated technique with reliable performance;

l Local and remote monitoring (optional) with automatic fault alarm &remote control;

Weatherproof design for all-weather installation;

2g 3g Dual Band cell phone signal receiver 900 2100 Repeater Application:

To expand signal coverage of fill signal blind area where signal is weak or unavailable.

The coverage of sites including Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

2g 3g Dual Band cell phone signal receiver 900 2100 Repeater Technical Specification:

Items		Testing Condition		Technical Specification
				Uplink	Downlink
Working Width(MHz)		Nominal Frequency		GSM:890~915MHz WCDMA:1920~1980MHz; (Customized)	GSM:935~960MHz;WCDMA:2110~2170MHz; (Customized)
Gain(dB)		Nominal Output Power -5dB		≥95(Customized)
Output Power (dBm)		GSM/WCDMA modulating signal		37	43
ALC (dBm)		Input Signal add 20dB		Po≤±1
Noise Figure (dB)		Working in-band(Max.Gain)		≤5
Ripple in Band (dB)		Nominal Output Power -5dB		≤3
Frequency Tolerance (ppm)		Nominal Output Power		≤0.05
Transmissions Delay (us)		Working In-band		≤5
Peak Phase Error(°)		Working In-band		≤20
RMS Phase Error (°)		Working In-band		≤5
Gain Adjustable Range(dB)		Nominal Output Power -5dB		≥30	≥30
Gain Adjustable Linear(dB)	10dB	Nominal Output Power -5dB		±1.0	±1.0
	20dB	Nominal Output Power -5dB		±1.0	±1.0
	30dB	Nominal Output Power -5dB		±1.5	±1.5
Intermodulation Attenuation(dBc) GSM		Working In-band		≤-45	≤-45
ACPR(WCDMA)		Working In-band	5M	≤-45	≤-45
			10M	≤-50	≤-50
Spurious Emission (dBm)	9kHz-1GHz	BW:30KHz		≤-36	≤-36
	1GHz-12.75GHz	BW:30KHz		≤-30	≤-30
VSWR		BS Port		1.5
		MS Port		1.5

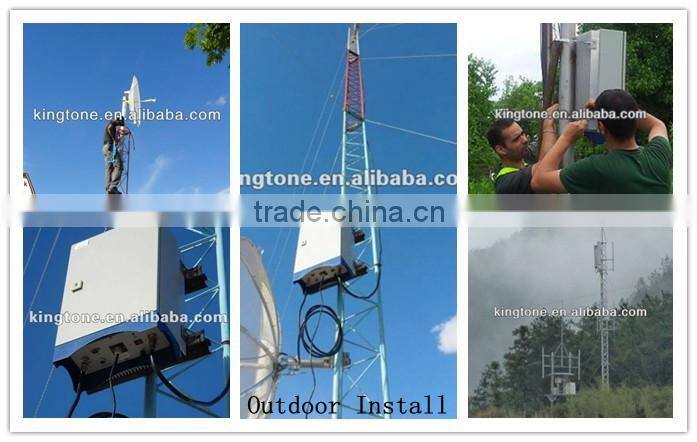

900/2100dual band gsm repeater for Outdoor Coverage :

900/2100dual band gsm repeater for In-Building Coverage

Product Overviews

repeater service

Frequency range list for our repeaters :

Support System	Frequency Range	Output Power
GSM900MHZ	890-915MHz/935-960MHz	2W/5W/10W/20W/30W/40W/50W/60W
DCS1800MHz	1710-1785MHz/1805-1880MHz	2W/5W/10W/20W/30W/40W/50W/60W
PCS1900MHz	1895-1910MHz/1975-1990MHz	2W/5W/10W/20W/30W/40W/50W/60W
GSM850MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA450MHz	450-457.5MHz/460-467.5MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA800MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA1900MHz	1880-1890MHz/1960-1970MHz	2W/5W/10W/20W/30W/40W/50W/60W
UMTS850MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
UMTS2100MHz	1920-1980MHz/2110-2170MHz	2W/5W/10W/20W/30W/40W/50W/60W
GSM900/1800MHZ	890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz	2W/5W/10W/20W/
GSM850/1900MHZ	824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz	2W/5W/10W/20W
GSM900/UMTS2100	890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz	2W/5W/10W/20W/

Our repeater support above frequency range .

Our present manufacturing service:

1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA

2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;

3. Tri-band repeater of GSM/DCS/WCDMA

4,Trunk Amplifier

5. All kind of Antenna/Splitter/Connector/Cable

Question: I work in an office building where my cell phone coverage in certain areas, including my office, is non-existent or spotty at best. How can I improve my coverage?

Answer: The requirement for reliable, always-on cell phone coverage within the office environment is increasing dramatically. It is not unusual to encounter trouble spots within a building where cell phone signals are weak or non-existent.

Kingtone repeater provides affordable and clear coverage to those trouble spots. The unit can be easily deployed and provides a coverage range of up to 100,000 square feet. Multiple units can be easily deployed to cover office areas and working locations.

Kingtone repeater can be deployed even without access to the roof or outside.

Packaging & Shipping

Our Services

Company Profile

Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.

Established in 2006, Kingtone is a high-tech enterprise specialized in developing, producing and selling wireless communication equipments and microwave functional module, such as Repeater for cell phone network, Mobile phone Jammer ,Handheld Transceivers, Vehicle Radio,Marine Radios etc.. Located in Quanzhou City of Fujian Province, we enjoy comfortable environment and convenient transportation. Covering an area of 1710 square meters, our factory is equiped with cutting-edge spectral analyzer, network analyzer, noise figure meter and signal generator, and operating under strict QC guidelines to guarantee high-quality products at competitive prices.

We also deal in high-quality alarm system. Our products conform to international standards, such as CE, GS, CE, EMC, UL and CSA. Meanwhile, OEM and ODM orders are welcome. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build long and successful business relationships with us.
