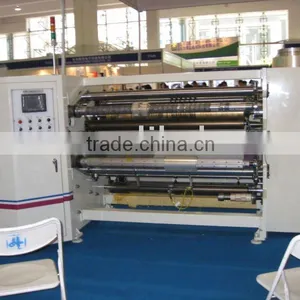

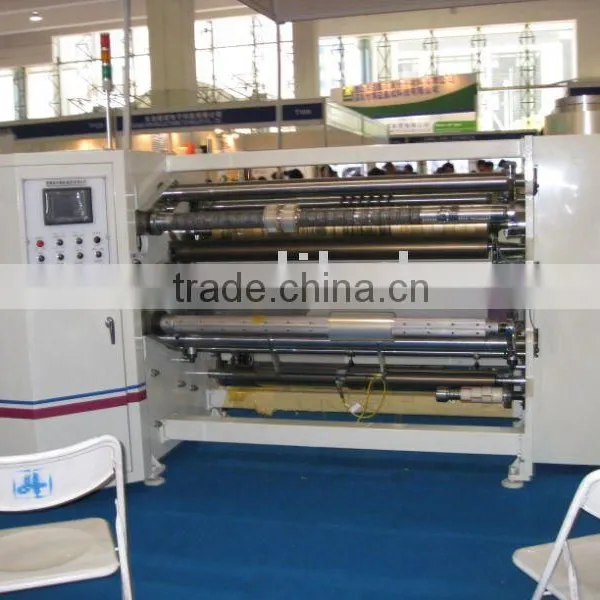

double-shaft double-pole automatic cutting machine

Specifications

Application:
suitable for PVC/OPP/PE/Masking tape/Double sided tape/Plastic films/foam tape...etc.
cutting machine

Application:suitable fot the cutting of PVE,OPP,PE,masking paper,double-side tape,kraft paper tape, cloth and foam tape etc.

feature:

1)computer integrated control, LCD touch screen operation,and the parameters,functions could be set from the screen directly.

2)silicon liquor cooling system is used for preventing the gluing of blade and keeping the blade working in good conditions.

3)high stability of the cutting tube,gas oil pressure back pressure control blade,adjustable cutting tube pressure,and suitable for different materials.

4)stepless speed changing AC motor is adopted in blade and main shaft.

5)the round trip is driven by servomotor, matched up with prcision ball screw and wire slide rail, to smooth the round trip of the blade and position accuracy.

6)stepping motor could adjust the angle of the blade directly wghen the cut  surface of the procuct is uneveness,to make guarantee the procuct quality.



Technical parameters:

Max. cutting diameter                       400mmMax

Max.length of rolled-cutting               1.3M or 1.6M or 1.8M

Max.cutting speed                             35cuts/min

inside diameter of paper core              Φ32-Φ76.2

rang of cutting width                          3-1300mm

main drive motor                                5HP

blade drive motor                               3HP*6P(serve motor)

blade diameter                                  150-Φ350mm

blade speed                                      360-180rpm
