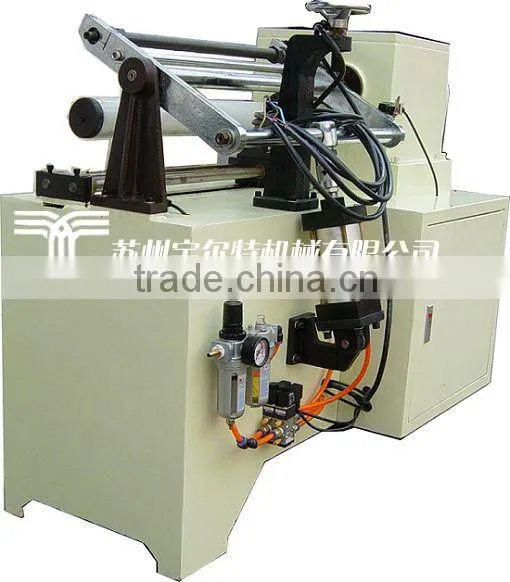

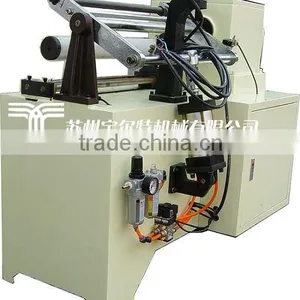

auto paper tube cutting machine
- 3 Set / Sets per Month
- SHANGHAI
Product Details
| Condition: | New | Application: | Other, Machinery & Hardware | Packaging Type: | Cartons |
| Packaging Material: | Paper | Automatic Grade: | Automatic | Driven Type: | Electric |
| Power: | 7kw | Place of Origin: | Jiangsu, China | Brand Name: | yuerte |
| Model Number: | YET04-04 |
Product Description
Specifications
1.it is slitter rewinder's associated equipment2.it is used for cutting paper tube
3.easy operation.
4.high efficiency.
1.Application:
suitable for cutting the paper tube,whose inside diameter is 76mm,the thickness of the paper core is less than 5mm
2.feature:
1). Adopt pneumatic thrust type round knife cutting, cutting pressure adjustable, incision edge smooth.
2).push tube also adopt pneumatic institutions, drastically reduce the labor intensity, operators operating personnel only need to press the starting button on the operation panel can be automatically complete the whole cutting process.
3). Paper tube mould, given by cutting width mold to customize according to the requirement, so can cut various specifications.
4). The machine adopts air pressure 4kg - is 6 kg
5). Panel main function :
(1) The machine power switch.
(2) Cutting starting with buttons and pedal switch.
(3) Cutting stop button.
3.Techanical papameters:
Max. slitting width | 600mm |
Min. slitting width | 12mm |
valid slitting width | 600mm |
Inside diameter of paper core | 76.2mm |
the thickness of paper core | 3-5mm |
main motor | 2 HP |
air pressure | 5kg/cm2 |
auomatic grade | automatic |
mechine L*W*H | 1.7.*0.6.*0.6m3 |
