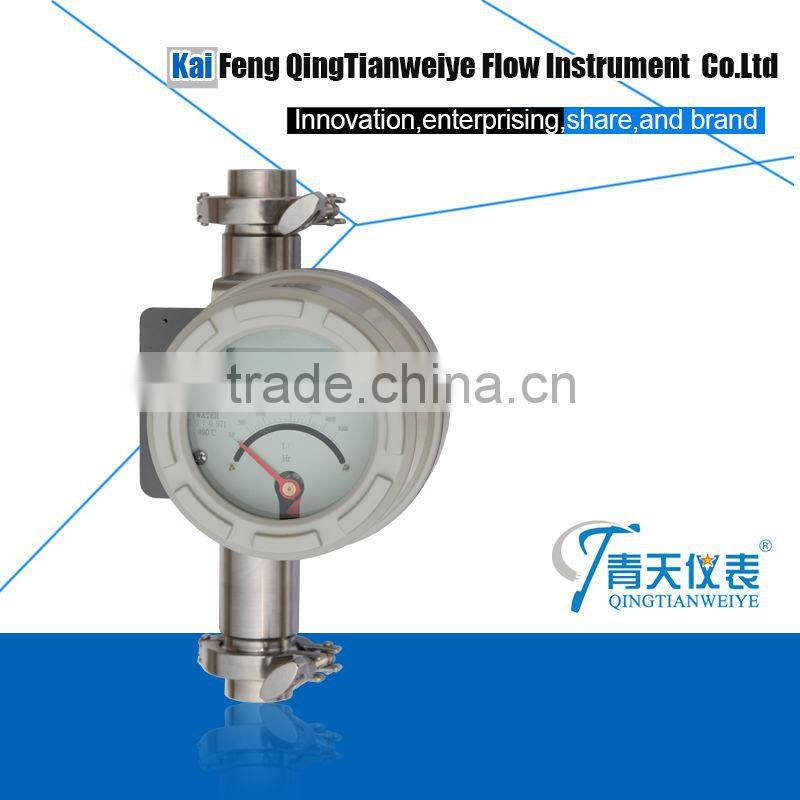

SS304 LCD display metal tube rota meter 3A type
- 3001 Set / Sets per Month
- Shanghai Qingdao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Henan, China | Brand Name: | qtyb | Model Number: | Metallic tube |
Packaging Details
1.Package is carton covered with plastic wrap film
2. No-nail packing for the wooden box
Product Description
SS304 LCD display metal tube rota meter 3A type
Introduction
It has 0-10mA or 4-20mA standard analog signal output and local indiction, accumulation flow, digital communication, field modification and measure parameters, different power supply function, it is widely applicable in petrol, chemical, power supply, pharmacy, food, water treatment industry etc.
Features
| Measuring Medium | Liquid, gas, steam etc |
| Environment Temperature | -25℃~+100℃, High Temperature Type:300℃ |
| Accuracy | Normal type:±2.5%, high accuracy type:±1.5% |
| Medium Viscosity | DN15:≤5mPa.s ≤30mPa.s; |
| DN25:≤250mPa.s; | |
| DN50-150:≤300mPa.s | |
| Flow Range Ratio | 10:1 |
| Power Supply | 24VDC,3.6V lithium battery power |
| Power voltage influence | ≤±0.1%F.S |
| Load Influence | ≤±0.1% |
| Max Working Pressure | DN15~DN50:4.0MPa; DN80~DN150:1.6MPa |
| Pipe Connection | Flange,Thread,Quick coupling |
| Shell | Aluminum Alloy |
| Protection Class | IP65,IP67 |
| Explosion Proof | ExiaIICT1~T6 |
Diameter (mm) | work number | flow range | Pressure loss kpa | ||||
| Water L/h | Air m3/h | Water Kpa | Air | ||||
| normal type | Anti-corrossion type | normal type Anti-corrossion type | normal type | Anti-corrossion type | |||
| 15 | 1A | 2.5~25 | -- | 0.07~0.7 | 6.5 | - | 7.1 |
| 1B | 4.0~40 | 2.5~25 | 0.11~1.1 | 6.5 | 5.5 | 7.2 | |
| 1C | 6.3~63 | 4.0~40 | 0.18~1.8 | 6.6 | 5.5 | 7.3 | |
| 1D | 10~100 | 6.3~63 | 0.28~2.8 | 6.6 | 5.6 | 7.5 | |
| 1E | 16~160 | 10~100 | 0.48~4.8 | 6.8 | 5.6 | 8.0 | |
| 1F | 25~250 | 16~160 | 0.7~7.0 | 7.0 | 5.8 | 10.8 | |
| 1G | 40~400 | 25~250 | 1.0~10 | 8.6 | 6.1 | 10.0 | |
| 1H | 63~630 | 40~400 | 1.6~16 | 11.1 | 7.3 | 14.0 | |
| 25 | 2A | 100~1000 | 63~630 | 3~30 | 7.0 | 5.9 | 7.7 |
| 2B | 160~1600 | 100~1000 | 4.5~45 | 8.0 | 6.0 | 8.8 | |
| 2C | 250~2500 | 160~1600 | 7~70 | 10.8 | 6.8 | 12.0 | |
| 2D | 400~4000 | 250~2500 | 11~110 | 15.8 | 9.2 | 19.0 | |
| 40 | 4A | 500~5000 | 300~3000 | 12~120 | 10.8 | 8.6 | 9.8 |
| 4B | 600~6000 | 350~3500 | 16~160 | 12.6 | 10.4 | 16.5 | |
| 50 | 5A | 630~6300 | 400~4000 | 18~180 | 8.1 | 6.8 | 8.6 |
| 5B | 1000~10000 | 630~6300 | 25~250 | 11.0 | 9.4 | 10.4 | |
| 5C | 1600~16000 | 1000~10000 | 40~400 | 17.0 | 14.5 | 15.5 | |
| 80 | 8A | 2500~25000 | 1600~16000 | 60~600 | 8.1 | 6.9 | 12.9 |
| 8B | 4000~40000 | 2500~25000 | 80~800 | 9.5 | 8.0 | 18.5 | |
| 100 | 10A | 6300~63000 | 4000~40000 | 100~1000 | 15.0 | 8.5 | 19.2 |
| 150 | 15A | 20000~100000 | -- | 600~3000 | 19.2 | -- | 20.3 |
| PHLZ | X | X | X | X | X | X | X |
| Indicator | code | ||||||
| local indicator | Z | ||||||
| LCD indicator with ouput | D | ||||||
| norminal caliber | code | ||||||
| DN15 | -15 | ||||||
| DN25 | -25 | ||||||
| DN40 | -40 | ||||||
| DN50 | -50 | ||||||
| DN80 | -80 | ||||||
| DN100 | -100 | ||||||
| DN150 | -150 | ||||||
| structure | Code | ||||||
| bottom-top | / | ||||||
| Left-right (horizontal) | H1 | ||||||
| right-left (horizontal) | H2 | ||||||
| side-side | AA | ||||||
| bottom -side | LA | ||||||
| thread connection | S | ||||||
| quick coupling connection | M | ||||||
| body material | Code | ||||||
| 304SS | R4 | ||||||
| 316SS | R6 | ||||||
| 316LSS | R6L | ||||||
| hastelloy C | Hc4 | ||||||
| Titanium | Ti | ||||||
| liner F46(PTFE) | F | ||||||
| indicator type | Code | ||||||
| linear indicator | M7 | ||||||
| nonlinear indicator(local indicator display instataneous flow) | M9 | ||||||
| combination function | Code | ||||||
| 24VDC;remote transfer 4~20mA standard current signal | S | ||||||
| 24VDC;remote transfer 4~20mA,local LCD display instantaneous & accumulative flow | Z | ||||||
| local lithium battery power ;local LCD display instantaneous & accumulative flow | D | ||||||
| added function | Code | ||||||
| measuring tube with thermal preservation / heat insulation jacket | T | ||||||
| measure medium temperature higher than 120.C | HT | ||||||
