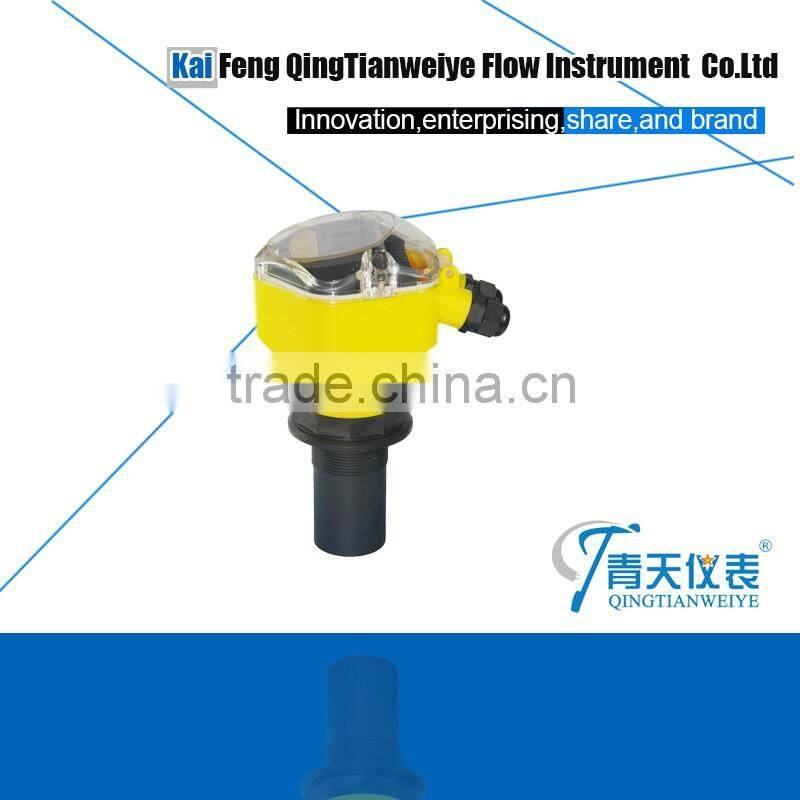

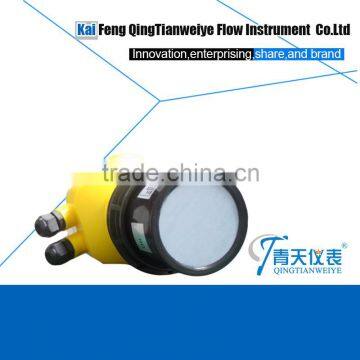

Ultrasonic Liquid Water Level Sensor

Use

Liquid level or material level measurement.

Application

This series is compact type ultrasonic level meter for continuous non-contact level measurement in liquids and solids. It's widely applied to the metallurgical, water treatment, chemical, electricity and oil industries.

Features

• Integrated design, installed conveniently;
• Protected in the excessive voltage and current , protected in the thunder and lightning;
• The big show window of LCD is easy to debug and observe;
• Over-voltage over-current protection, lightning protection;
• Advanced since the clamp type terminal, to ensure that wiring never loose;
• Intellectual signal treatment technology, guarantee that the instrument meets various kinds of operating occasion;
• All plastic probe, acid and alkali resistant, adapt to bad environment;

<tr >  P  Standard Type(Non ex-proof)
  I   Intrinsically safe (Exia IIB T6 Ga)

PLUT
Measure range(m)
4	6	8	12	20	30
License
Energy Transducer Material/Process Temperature/Protection Grade
A  ABS/(-40-75)℃/IP67        B  PVC/(-40-75)℃/IP67        C  PTFE/(-40-75)℃/IP67
Process Connection/Material
G  Thread            D  Flange
Electronic Unit
2  4~20mA/24V DC Two Wire                 3  4 20mA/24V DC  Four Wire                4  4 20mA/220V  AC  Four Wire                5  4 20mA/24V DC /HART Two Wire                6  4 20mA/24V DC /HART Four Wire                7  4 20mA/220V DC /HART Four Wire                Y Special custom
Shell / Protection Grade
L  Aluminum / IP67                    G  SS304 / IP67
Cable Entry
M  M20*1.5                          N  1/2'' NPT
Programmer/Display
A  With Display                               B  Without  Display
