Oil project mass flow meter

Name: Oil project mass flow meter
Brand: Qingtianyibiao
Availability: InStock

FOB Price

USD $300 - $5,000 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port Shanghai Qingdao Tianjin shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Henan, China

Brand Name:

Qingtianyibiao

Model Number:

QTMF, QTMF

Packaging Details

1.DN6-DN100, package is carton covered with plastic wrap film
2.Above DN150,it is No-nail packing for the wooden box

Product Description

Oil project mass flow meter

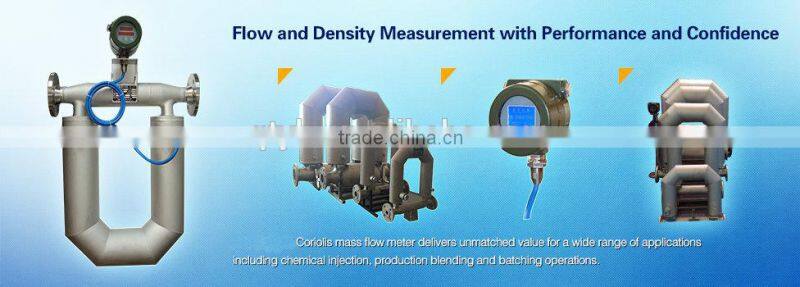

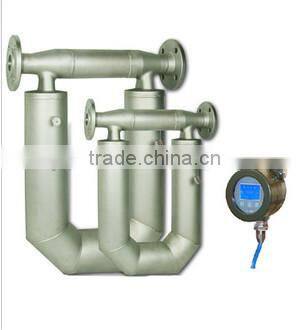

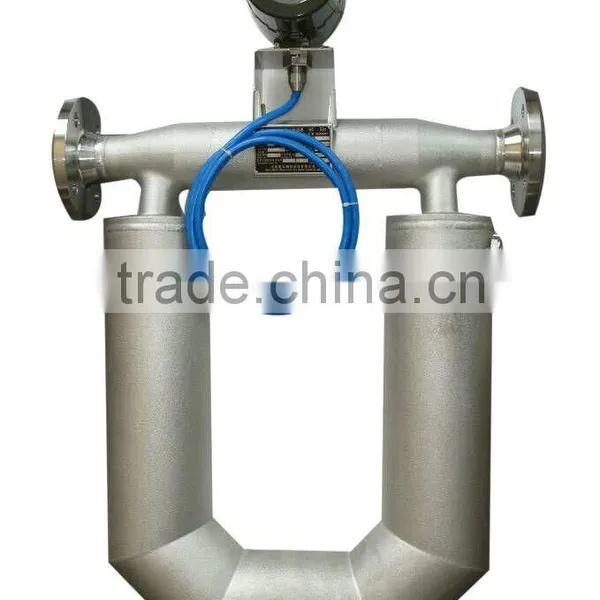

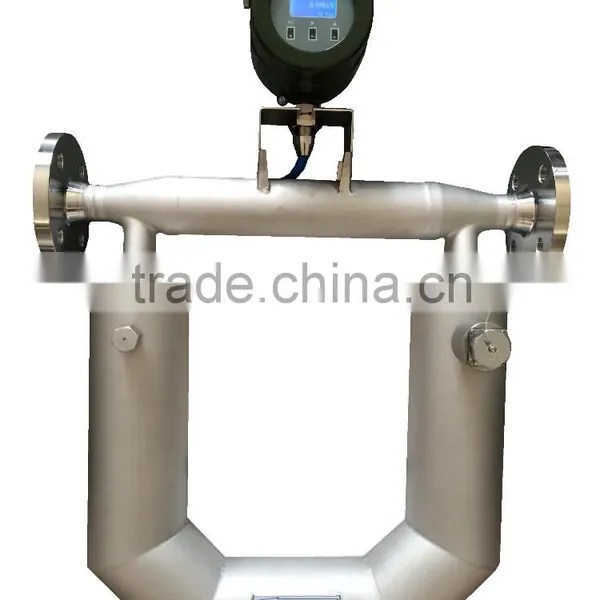

Coriolis mass flow meter (QTCMF) is a new type flow meter which is designed according to Micro Motion and Coriolis principle. This kind of new flow meter can measure the fluid directly in a sealed pipeline. It consists of two sections: Sensor and Signal Transmitter.

Main Features

Measuring fluid flow rate directly (It is significant to the energy measurement and chemical reaction during the producing detection)

High Measurement accuracy: (0.1%~0.5%)

Wide Application (Besides general fluid measurement, other industrial medium which is hard to be measured by general flow meters also can be measured, such as Non-Newtonian fluid and Slurry etc.)

Low Installation Requirement: (there is no requirement for straight pipe upstream or downstream) Reliability, low maintenance rate.

Display	Digital/LCD local display
Display variable	Mass flow, Volume flow, Density, Temperature
Accuracy	±0.2%, ±0.1% optional
Repeatability	±0.1~0.25%
Density measurement range	0.5~2g/cm3, Accuracy: ±0.002 g/cm3
Operating temperature	-150~+300℃
Ambient temperature	-40~+60℃ or -20~+55℃
Output signal	Pulse+4~20mA+RS485
Communication	Modbus / Hart
Power supply	18~36VDC power≥7W; 85~265VAC power: 10W
Nominal pressure	20MPa
The measuring tube material	SS316L; The housing material: SS304
Protection grade	IP65
Ex-proof	Exd (ia)ⅡC T6Gb

Parameters

Specification	DN (mm)	Flow range(kg/h)
QTCMF-006	6	0~900~1000
QTCMF-010	10	0~1800~2100
QTCMF-015	15	0~3600~4500
QTCMF-020	20	0~6000~7200
QTCMF-025	25	0~9600~12000
QTCMF-032	32	0~18000~21000
QTCMF-040	40	0~30000~36000
QTCMF-050	50	0~48000~60000
QTCMF-080	80	0~150000~180000
QTCMF-100	100	0~240000~280000
QTCMF-150	150	0~480000~600000
QTCMF-200	200	0~900000~1200000

The QTCMF mass flow meter can be used in the following fields to meet the requirements of ingredient, mixing processes and commercial measurement.

Chemical: containing chemical reaction system

Petroleum: moisture content analysis

Lipids: including vegetable oils, animal fats and other oils

Pharmaceutical

Painting

Paper making

Textile printing and dyeing

Fuel: Crude oil, heavy oil, coal slurry, lubricant and other fuels.

Food: Gas dissolving beverage, health drink and other liquid.

Transportation: Pipeline liquid measurement.

Production process

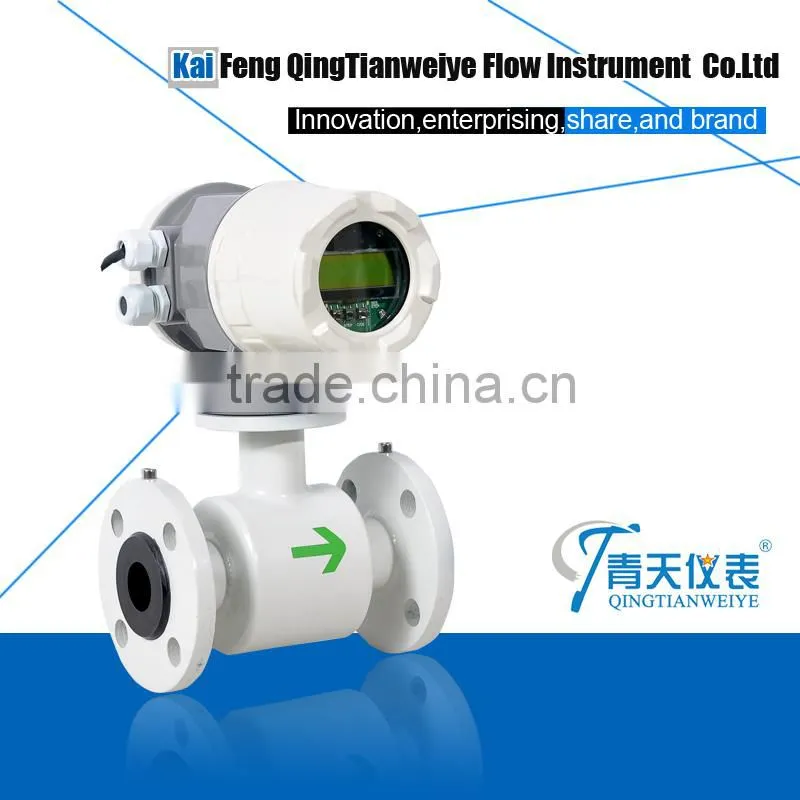

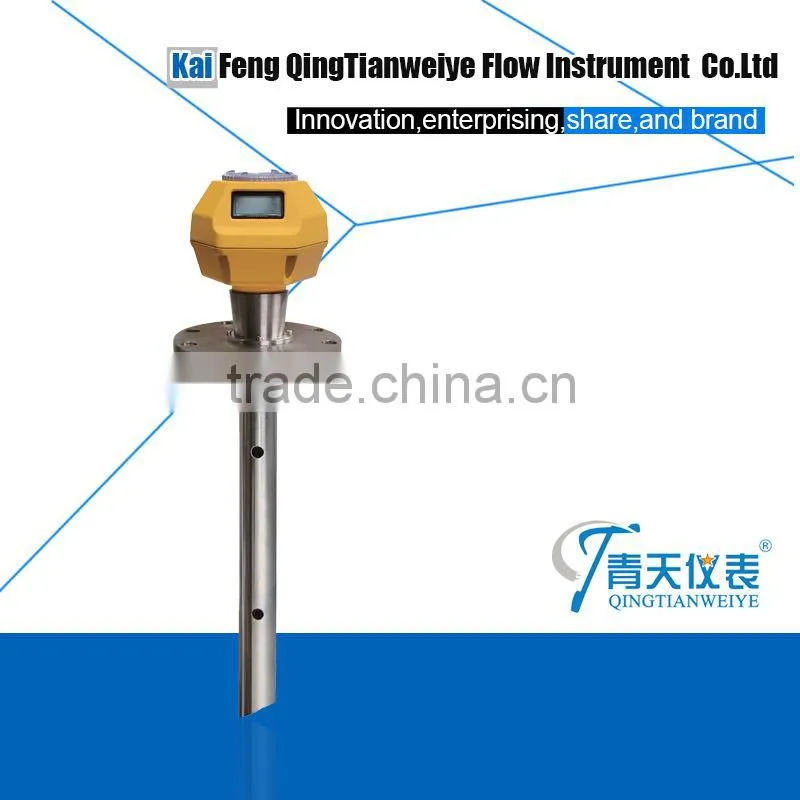

Recommend products

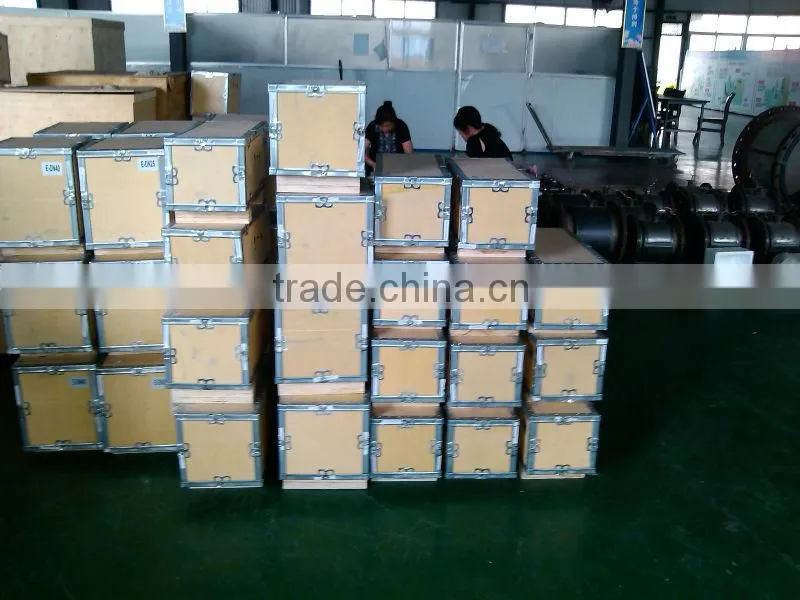

Packaging & Shipping

Customer show

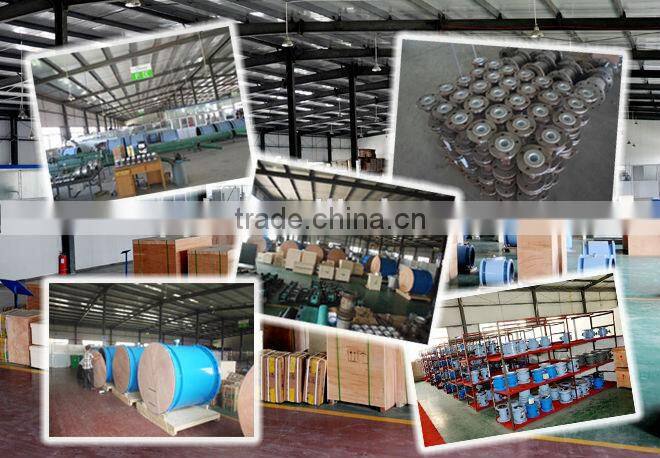

Factory show

FAQ

Q:What is the typical Accuracy of measurement for Flow Meters?
A:The typical accuracy of these meters is +/- 0.2 % of reading. The specified accuracy is +/- 0.5% of reading between 10 % to 100 % of calibrated flow rate range.

Q:What is meant by Full Bore Meter ?
A:A Full Bore meter is a circular meter where, when the flow passes by filling the entire bore area, the meter can measure the average velocity inside the meter. Naturally the accuracy of a full bore meter is always much better than any other type.

Welcome to contact us

Company Profile

Kaifeng Qingtianweiye Flow Instrument Co., Ltd.

Company Profile
Exported to more than 30 COUNTRIES around the global; 500 SETS/MONTH production capacity; More than 10 YEARS MANUFACTURING EXPERIENCE; 5 Categories main products; the first company who own FIVE SETS CALIBRATION SYSTEMS in China, enjoys Class 0.2 high accuracy can equal to the world famous brand SIEMENS, ABB,ETC; 8 national patents;etc. All above makes KAIFENG QINGTIANWEIYE FLOW INSTRUMENT CO.,LTD.

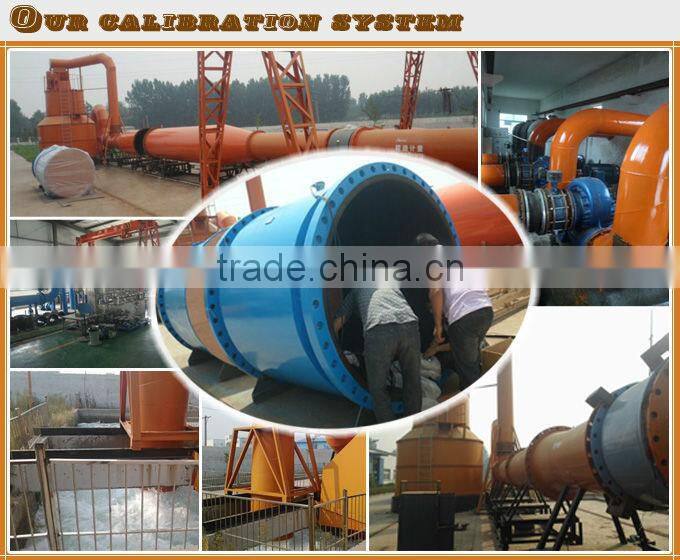

Our Advantages - Class 0.2 accuracy
