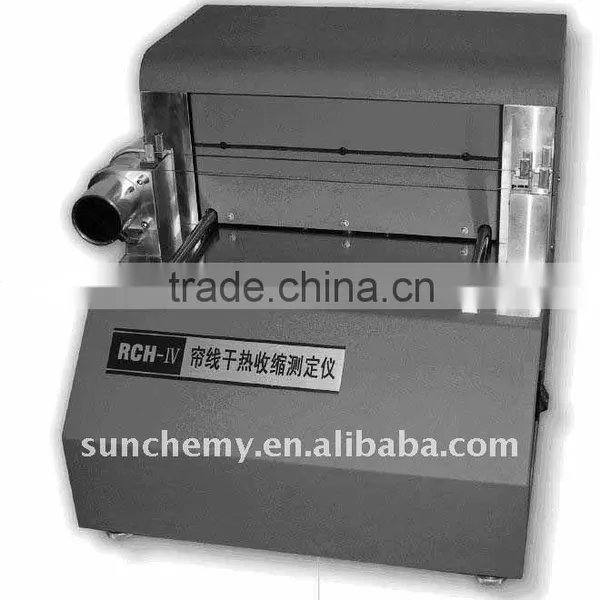

Cord Shrink Tester
- 1000 Set / Sets per Month
- Beijing Xingang
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Beijing, China | Brand Name: | Rubberinfo | Model Number: | RCH-IV |
| Power: | Electronic | Usage: | Process Testing Machine |
Product Description
Specifications
Cord Shrink TesterCord shrink Tester
Test mechanism:

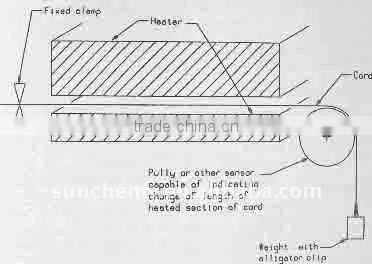

RCH-IV Cord Dry-heating Shrink Tester is designed and manufactured according to the national standard GB/T 9101-2002,GB/T 9102-2003,GB/T 19390-2003. And it also meets the American standard ASTM D4974, set by the American Society for Testing and Materials. During testing, after humidity equilibration, a sample subjected to a given tension is placed in dry air at given temperature for a designated time. Then its heat-shrinking ratio, heat-shrinking ratio residuals and heat-shrinking force are recorded.

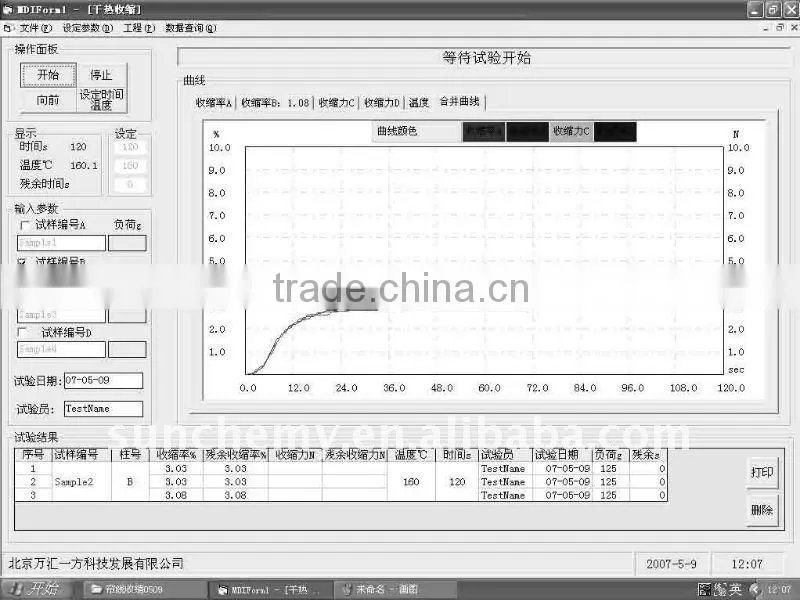

Main operation interface

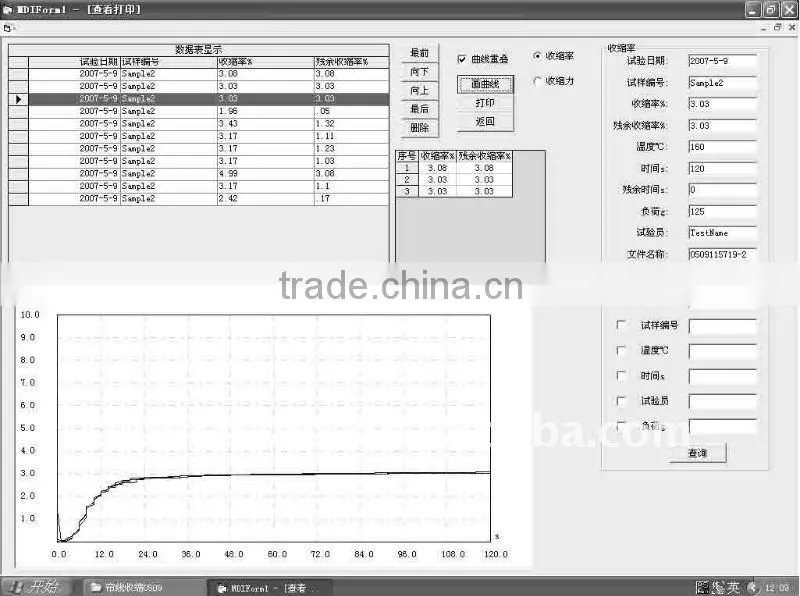

File management interface
Technical parameters:
| Sample hold capacity | for 4 cords (2 for shrinking ratio and 2 for shrinking force) |
| Testing temperature continuously adjustable | 50°C~250°C |
| Shrinking ratio testing range | ~+40% |
| Shrinking force testing range | 0~30N |
| Working power | 220V /2A/50Hz |
Cord Shrink Tester
