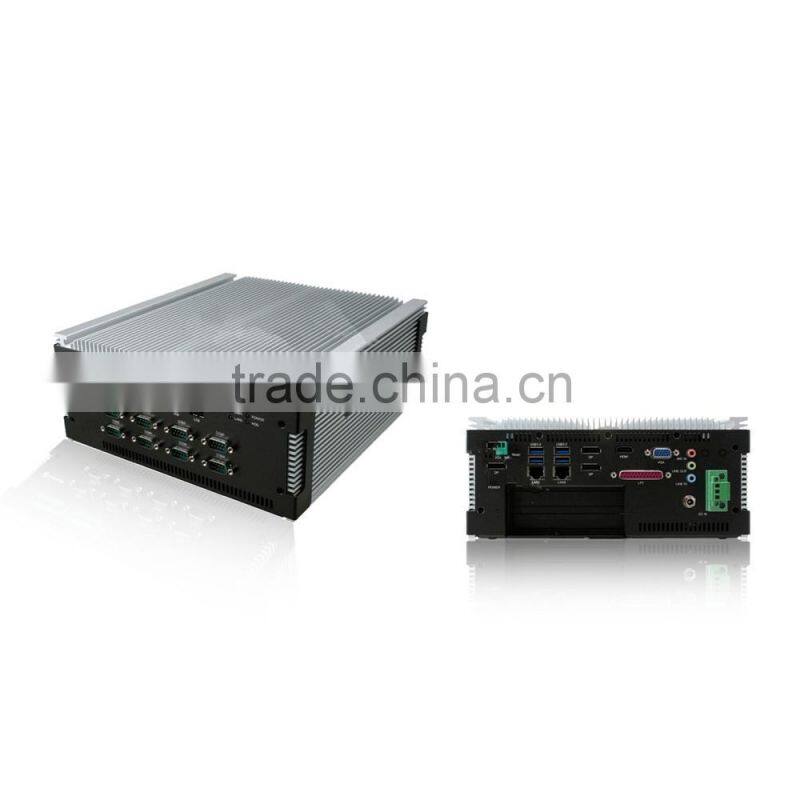

Help CenterMini Fanless Box pc Intel Core i3 i5 i7 CPU 2*LAN 8*USB 8*COM 2*PCI-Express or 2 *Mini PCIE 1*VGA
Related Products
-
Intel D525 CPU Atom Dual-core 1.8G 2G DDR3 1*VGA 2LAN 4*USB 6*COM Intel 82801HBM Chipset Fanless ComputerUS$ 435 - 465MOQ: 10 Sets -
Intel Core I7-2710QE 2.1GHz Intel Core I5-2510E 2.5GHz CPU 1*VGA 1*DVI-D 5*LAN 6*USB 4*COM Fanless pcUS$ 200 - 500MOQ: 10 Sets
-
Cpu Intel Boxed D525 CPU Atom Dual-core 1.8G 2G DDR3 1*VGA 2LAN 4*USB 6*COM 1*PCI(PCI-E) Embedded pcUS$ 455 - 485MOQ: 10 Sets
-
Hdmivga Media Player Show Box Embeded System Intel D525 CPU Atom Dual-core 1.8G 2G DDR3 1*VGA 2LAN 4*USB 10*COM 2*PCI( PCI-E)US$ 470 - 500MOQ: 10 Sets
-
Intel i7 i5 P4500 CPU 1*VGA 1*DVI 3*LAN 6*USB 4*COM Multiple Lan pcUS$ 200 - 500MOQ: 10 Sets
Product Overview
The product is a based on Intel® QM77 Chipset design, high-performance, highly reliable, Multiple Ethernet Ports,fanless industrial-grade embedded multifunction miniature cassette machine. It can provide customers with flexible product feature set and performance requirements.
CPU | Intel® Core™ i7/ i5/ i3 | |
Chipset | Intel® QM77 | |
RAM | DDR3 SODIMM ,Maximum support 16G | |
Display interface | VGA | DB-15 x 1,Maximum 512MB shared system memory |
HDMI | HDMI x 1 | |
Storage device | Interface | 2 SATA III, 2 SATA II |
HDD | 2*2.5″SATA | |
| MiniCard | 1, support half/full length size, mSATA(Optional) |
USB | 4 | |
Network | Networking chip | 1000M Ethernetx 2, Intel® 82577LM/82574L |
Ethernet port | RJ-45*2 | |
Front I/O | USB | 4USB 2.0 |
| DIO | 16, 8-in/8-out |
| Serial port | 8COM(4*RS-232S-422/RS-485) |
Rear I/O | USB | 4USB 3.0 |
Ethernet port | RJ-45*2 | |
parallel port | 1*LPT | |
VGA | DB-15 x 1,Maximum 512MB shared system memory | |
HDMI | HDMI x 1 | |
| Audio | HD Audio, support LINNE-OUT |
Power supply | DC_IN 12V-26V | |
Extension | Expansion slot | 2 PCI/2 Mini PCIE |
| USB | 4USB 3.0 |
Indicator light | front | LAN*4,POW*1,HDD*1 |
Power supply mode | DC_IN 12V-26V | |
Installation | Support wall hanging, embedded installation | |
Work temperature | -10-60℃(Require wide temperature hard disk) | |
Storage temperature | -40℃-80℃ | |
Storage humidity | 5%-95%,no condensation | |
Watchdog | Watchdog timer 256 ,Programmable time to interrupt, time to event reset | |
Anti-Vibration | 5g rms/5-500Hz/operation state-MinpcieDOM | |
1g rms/5-500Hz/operation state-HDD | ||
Impact resistance | 50G peak acceleration(duration 11 msec.)-MinpcieDOM | |
Total weight | 5.0KG | |
Dimensions | 250x270x108mm(WxDxH) |
Product application industries
Order information
FSX-QM77-P2:Intel® Core™ i7/ i5/ i3 CPU/1*VGA/1*HDMI/2LAN/8USB/8COM/PCI-Express *2 or 2 *Mini PCIE
paper carton ocean transport
1 years tecnical service
Qingdao Fu shun Xing Electronics Technology Co., Ltd is a technology company specializing in the research, development and service of automatic intelligent control, visual image identification. The company promotes series products of portable computer, industrial tablet pc, reinforced anti-riot army-regulation computer, non-fan Embedded IPC, X-RAY foreign matter detector, basket washing machine, slicer and turnover washing machine. The products have been applied in the military industry, telecommunication, metallurgy, transportation, electricity, railway, aviation, communication, finance, network, medical treatment, machine manufacturing, precise instrument, food processing and other sectors extensively.
