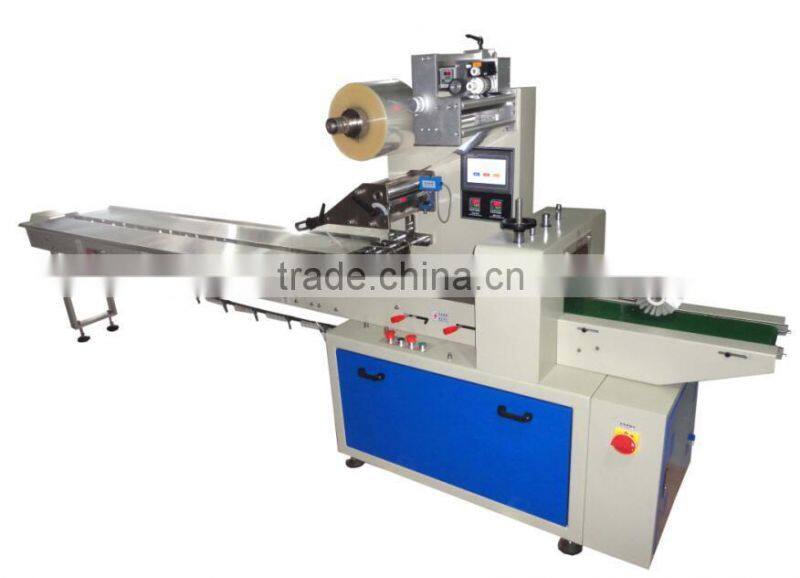

Mini flow packing machine
1.The machine controlled by PLC, hence steady in performance and easy to operate.
2.Touch screen Interface, set and save the parameter easy and quick.
3.Main motor equipped with high quality dual frequency inverter.
4.High accuracy photoelectric tracking system with automatic compensation.
5.The conveying chain can be adjusted without stopping machine.
6.The machine can be equipped with nitrogen filling device and date printer.
Specifications:
Model | AB-250SM | AB-350SM | AB-450SM | AB-550HH |
Max. film width | 230mm | 330mm | 430mm | 530mm |
Packing speed | 70-180 bag/min | 60-160 bag/min | 50-150bag/min | 30-120bag/min |
Film thickness | 0.03-0.06mm | 0.03-0.06mm | 0.03-0.06mm | 0.03-0.06mm |
Bag length | 60–200mm | 90-300mm | 90-300mm | 180-600mm |
Bag width | 20–100mm | 30-140mm | 50-180mm | 80-200mm |
Product height | 1–40mm | 1-80mm | 1-80mm | 1-110mm |
Power supply | 220V,50/60 Hz , | 220V,50/60Hz | 220V,50/60Hz | 220V,50/60Hz |
Machine size(mm) | 4200×610x1450 | 4200x710x1450 | 4200x810x1450 | 4200x910x1450 |
Machine weight | 600Kg | 650Kg | 700Kg | 800Kg |
Having focused on manufacturing and exporting packing machine for more than 8 years, we transform ourselves into a company supply many kinds of packing machines to serve customer as one station service.
With a technical teamwork , we design and make special machines for our customer in different purpose and needs.
We sold hundreds of machines in our history, In the last year our machines have been installed in the following countries :Australia, Chile, Ecuador, India, , Portugal, Greece. Spain
Q1 : Why Choose ANBOPACK?
A: We involved in packing machine for 15 years, we are able to get many resouces of packing machines to serve your needs as 0ne station.
We have professional poeple for after sale service, we will be patient and passionately to solve your problems.
We have exported our machines to many countries.
Q2 : What' the guarantee
A: one year.
Q3 : Do i need engineer from you to install machine and train our people ?
A: No, our machines is simple and easy to get start.
If you need engineer service, we can discuss this , but you need to pay round air tickets and accomodation.
Q4 : Delivery time ?
A: 15-30days after confirmation.
Q5 : What are the payment term?
A:30% as deposit by T/T, and the balance before shipment.
Q6 : What is the MOQ of this item:
A: 1 unit.
Q7 : Where is the loading port?
A: Ningbo or Shanghai Port.
