Home > Consumer Electronics > Display & Accessories > LCD Module > LVDS Interface 12.1 TFT 1024X768 LCD Display Module

LVDS Interface 12.1 TFT 1024X768 LCD Display Module

Name: LVDS Interface 12.1 TFT 1024X768 LCD Display Module
Brand: Palm Technology
SKU: 122659755
Availability: InStock

Palm Technology Co., Ltd.

LVDS Interface 12.1 TFT 1024X768 LCD Display Module thumbnail-1

LVDS Interface 12.1 TFT 1024X768 LCD Display Module thumbnail-2

LVDS Interface 12.1 TFT 1024X768 LCD Display Module thumbnail-3

LVDS Interface 12.1 TFT 1024X768 LCD Display Module thumbnail-4

LVDS Interface 12.1 TFT 1024X768 LCD Display Module thumbnail-5

LVDS Interface 12.1 TFT 1024X768 LCD Display Module thumbnail-6

LVDS Interface 12.1 TFT 1024X768 LCD Display Module photo-1

LVDS Interface 12.1 TFT 1024X768 LCD Display Module photo-2

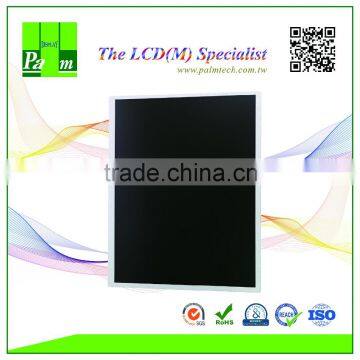

LVDS Interface 12.1 TFT 1024X768 LCD Display Module photo-3

LVDS Interface 12.1 TFT 1024X768 LCD Display Module photo-4

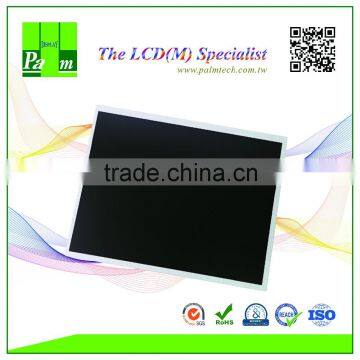

LVDS Interface 12.1 TFT 1024X768 LCD Display Module photo-5

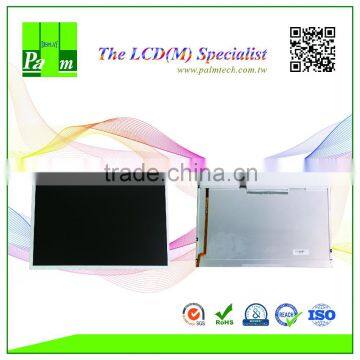

LVDS Interface 12.1 TFT 1024X768 LCD Display Module photo-6

US$ 108 - 120 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

Palm Technology

Model Number:

PT121XGA-A001

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Kaohsiung

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name Palm Technology

Model Number PT121XGA-A001

Type TFT

https://www.china.cn/product-detail/12-1-TFT-1024X768-LCD-Display_60507644515.html

product: PT121XGA-A001 12.1" TFT 1024 x 768 XGA Display module LVDS interface

Key Specifications/Special Features:

TFT Module

Outline dimensions: 260.5 x 240.0 x 7.2 (D)mm

Polarizer mode: transmissive type

B/L: LED backlight, color white

Active area: 245.76 x 184.32 mm

Number of dots: 1024 x 768 dots

Pixel pitch: 0.24 x 0.24 mm

Viewing angle: 70/ 70/ 80/ 80

**The real dimensions of the product, welcome to purchase our samples.

*** Price can be discussed by real requirement.

Product list- TFT:

Display Size (inch)	Model No.	Resolution	Outline Dimension W x H x D mm	Active Area W x H mm
1.5"	PT0151212-A704	128 * 128	32.35 x 38 x 2.6	25.5 x 26.5
1.77"	PT0181216-B101	128 * 160	34.0 x 45.83 x 2.75	28.032 x 35.040
2.4"	PT0242432-B707	240 * 320	42.72 x 60.26 x 2.6	36.72 x 48.96
2.4"	PT0242432T-B707(RTP)	240 * 320	42.72 x 60.26 x 3.75	36.72 x 48.96
2.4"	PT0242432-D101	240 * 320	42.72 x 60.26 x 2.3	36.72 x 48.96
2.4"	PT0242432T-D101(RTP)	240 * 320	42.72 x 60.26 x 3.4	36.72 x 48.96
2.4"	PT0244823-A001	480 * 272	55.20 x 47.55 x 2.8	48.00 x 35.685
2.8"	PT0282432-B704	240 * 320	50.0 x 69.2 x 2.6	43.20 x 57.60
2.8"	PT0282432T-B704(RTP)	240 * 320	50.0 x 69.2 x 3.8	43.20 x 57.60
2.8"	PT0282432-D503	240 * 320	50.0 x 69.2 x 2.5	43.20 x 57.60
2.8"	PT0282432-E501	240 * 320	50.0 x 69.2 x 2.45	43.20 x 57.60
2.8"	PT0282432T-E501(RTP)	240 * 320	50.0 x 69.2 x 3.6	43.20 x 57.60
3.5"	PT0353224-C701	320 * 240	76.9 x 63.9 x 3.26	70.08 x 52.56
3.5"	PT0353224T-C701(RTP)	320 * 240	76.9 x 63.9 x 4.4	70.08 x 52.56
3.5"	PT0353224-D102	320 * 240	76.9 x 63.9 x 3.2	70.08 x 52.56
3.5"	PT0353224T-D102(RTP)	320 * 240	76.9 x 63.9 x 4.3	70.08 x 52.56
3.5"	PT0353224-E201	320 * 240	76.9 x 63.9 x 3.15	70.08 x 52.56
3.5"	PT0353224T-E201(RTP)	320 * 240	76.9 x 63.9 x 4.25	70.08 x 52.56
3.5"	PT0353224-E501	320 * 240	76.9 x 63.9 x 3.05	70.08 x 52.56
3.5"	PT0353248-C001	320 * 480	54.5 x 83.0 x 2.1	48.96 x 73.44
3.5"	PT0353248T-C001(RTP)	320 * 480	54.5 x 83.0 x 3.3	48.96 x 73.44
4.0"	PT0404880-B701	480 * 800	58.94 x 97.80 x 2.0	51.84 x 86.4
4.0"	PT0404880T-B701(RTP)	480 * 800	58.94 x 97.80 x 3.2	51.84 x 86.4
4.3"	PT0434827-A413	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856
4.3"	PT0434827T-A413(RTP)	480 * 272	105.5 x 67.2 x 4.05	95.04 x 53.856
4.3"	PT0434827-C801	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856
4.3"	PT0434827T-C801(RTP)	480 * 272	105.5 x 67.2 x 4.0	95.04 x 53.856
4.3"	PT0434880-B101	480 * 800	60.86 x 104.5 x 1.95	56.16 x 93.60
4.3"	PT0434880TC-B101(CTP)	480 * 800	85 x 120 x 3.68	56.16 x 93.60
4.5"	PT0454885-A001	480 * 854	60.62 x 108.25 x 1.9	55.44 x 98.637
5.0"	PT0508048-A701	800 * 480	120.8 x 75.9 x 3.2	108.0 x 64.8
5.0"	PT0508048T-A701(RTP)	800 * 480	120.8 x 75.9 x 4.31	108.0 x 64.8
5.0"	PT0508048TC-A701(CTP)	800 * 480	120.8 x 76.0 x 4.43	108.0 x 64.8
5.0"	PT0508048-B001	800 * 480	120.7 x 75.8 x 2.9	108.0 x 64.8
5.0"	PT0508048T-B001(RTP)	800 * 480	120.7 x 75.8 x 4.1	108.0 x 64.8
5.0"	PT0508048TC-B001(CTP)	800 * 480	120.8 x 76.0 x 4.13	108.0 x 64.8
5.0"	PT0508048TC-B301(CTP)	800 * 480	128.8 x 88.3 x 4.45	108.0 x 64.8
7.0"	PT0708048-A902	800 * 480	165 x 100 x 6.6 max.	154.08 x 85.92
7.0"	PT0708048T-A902(RTP)	800 * 480	165 x 100 x 6.6	154.08 x 85.92
7.0"	PT0708048-C603	800 * 480	164.9 x 100.0 x 3.4	154.08 x 85.92
7.0"	PT0708048T-C604(RTP)	800 * 480	164.9 x 100.0 x 5.1 max.	154.08 x 85.92
7.0"	PT0708048TC-C603(CTP)	800 * 480	164.9 x 100.0 x 5.3 max.	154.08 x 85.92
7.0"	PT0708048T-D201(RTP)	800 * 480	164.9 x 100.0 x 7.3	154.08 x 85.92
7.0"	PT0708048-D204	800 * 480	164.9 x 100.0 x 3.5	153.84 x 85.63
7.0"	PT0708048T-D204(RTP)	800 * 480	164.9 x 100.0 x 4.6	153.84 x 85.63
7.0"	PT0708048TC-D204(CTP)	800 * 480	195.6 x 130.0 x 5.75	153.84 x 85.63
7.0"	PT0708048TC-D204T(CTP)	800 * 480	164.9 x 101.55 x 5.75	153.84 x 85.63
7.0"	PT0708048-D205	800 * 480	164.9 x 100.0 x 3.5	153.84 x 85.63
7.0"	PT0708048T-D205(RTP)	800 * 480	164.9 x 100.0 x 4.7	153.84 x 85.63
7.0"	PT0708048TC-D205(CTP)	800 * 480	195.6 x 130.0 x 5.75	153.84 x 85.63
7.0"	PT0708048TC-D205T(CTP)	800 * 480	164.9 x 101.55 x 5.75	153.84 x 85.63
7.0"	PT0708048-D301	800 * 480	165.0 x 104.4 x 5.2	154.08 x 85.92
7.0"	PT0708048TC-D202(CTP)	800 * 480	195.60 x 130.00 x 7.95	154.08 x 85.92
7.0"	PT07010260-B401	1024 * 600	165.75 x 105.39 x 3.5	153.6 x 90.0
8.0"	PT0808060-A201	800 * 600	183.0 x 141.0 x 5.6	162.0 x 121.5
8.4"	PT0848060-A001	800 * 600	203.0 x 145.9 x 5.7	170.40 x 127.80
10.1"	PT101WXGA-B201	1280 * 800	229.46 x 149.20 x 2.40	216.96 * 135.60
10.1"	PT101WXGAT-B201(RTP)	1280 * 800	229.46 x 149.20 x 4.3 max.	216.96 * 135.60
10.4"	PT104XGA-A001	1024 * 768	238.6 x 175.8 x 7.5	210.4 x 157.8
10.4"	PT104XGATC-A001(CTP)	1024 * 768	264.60 x 204.0 x 9.99	210.4 x 157.8
12.1"	PT121XGA-A001	1024 * 768	260.5 x 240 x 7.2	245.76 x 184.32

Product List- Graphic LCD module:

Display Format Dots x Dots	Model No.	Outline Dimension LCM W x H mm (COG LCD W x H mm)	Viewing Area W x H mm
128 x 32	PHG1203D1	42.0 x 17.66	39.0 x 8.66
128 x 64	PHG1206A4	40.5 x 34.0 (38.3 x 33.0)	33.8 x 22.2
128 x 64	PHG1206E	42.0 x 30.0	37.0 x 20.0
128 x 64	PHG12061F2	65.0 x 39.2 (63.0 x 37.7)	60.0 x 29.0
128 x 64	PHG12061G	77.0 x 39.2 (63.0 x 37.7)	60.0 x 29.0
128 x 64	PHG1206I	46.1 x 33.0 (43.8 x 30.7)	39.5 x 20.0
128 x 64	PHG12062M	35.2 x 29.0 (34.0 x 27.8)	31.0 x 19.0
128 x 64	PHG1206Q	65.0 x 39.15 (63.0 x 37.7)	60.0 x 29.0
128 x 64	PHG1206S1	47.4 x 44.4 (46.0 x 36.0)	41.8 x 26.1
128 x 64	PHG1206X2	80.5 x 45.0 (64.0 x 43.0)	60.0 x 32.6
128 x 64	PHG12A06A	74.8 x 54.5 (63.0 x 42.5)	59.0 x 32.0
128 x 64	PHG12A06B	78.0 x 50.5 (68.0 x 47.0)	63.84 x 35.68
128 x 64	PHG12A06C	38.2 x 27.13 (36.0 x 26.0)	34.0 x 18.5
128 x 64	PHG12A06D	35.2 x 33.0 (33.0 x 31.0)	30.0 x 24.0
128 x 64	PHG12A06P	56.6 x 44.2 (54.6 x 42.2)	50.6 x 31.0
128 x 64	PLG1206GW	80.0 x 54.0 (76.1 x 44.5)	70.7 x 38.8
128 x 64	PQG1206B	93.0 x 70.0	70.7 x 38.8
128 x 80	PHG1208A1	40.5 x 34.0 (38.3 x 33.0)	35.3 x 24.34
128 x 128	PHG1212CW6	36.6 x 44.5 (36.5 x 42.5)	33.5 x 33.5
128 x 128	PHG1212G	46.0 * 54.4 (46.0 * 52.4)	43.0 x 42.8
128 x 128	PHG1212I	36.6 x 39.3 (34.0 x 37.3)	28.0 x 28.0
128 x 128	PLG1212B	92.0 x 106.0	73.0 x 73.0
132 x 64	PHG1306H	77.0 x 47.5 (75.0 x 45.5)	72.0 x 36.5
240 x 64	PBG2406A	125.0 x 60.0	111.6 x 37.0
240 x 64	PQG2406A	180.0 x 65.0	132.0 x 39.0
240 x 128	PQG2412A	144.0 x 104.0	114.0 x 64.0
240 x 160	PHG2416A1	69.1 x 52.4 (69.1 x 51.4)	60.6 x 41.4
240 x 160	PQG2416A2	77.4 x 61.0	73.4 x 48.0
240 x 320 (Duty :1/320)	PMGG2432A	83.3 x 92.1	60.6 x 79.8
320 x 240	PFG3224A	167.1 x 109.0	122.0 x 92.0
320 x 240 (Duty : 1/240)	PMGG2432B	92.1 x 83.3	79.8 x 60.6
320 x 240 (Duty : 1/240)	PMGG2432C	92.1 x 83.3	79.8 x 60.6

FACTORY PICTURES:

EXHIBITION PICTURES:

Company Introduction:

One of the Leading Suppliers of LCD/LCM Modules

Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.

To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.

Well Experienced Leadership

Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.

Providing Excellent Services

Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.

Owning Factories in Taiwan and Mainland China

Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.

We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.

To know more, contact us today.
