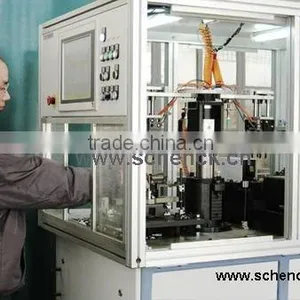

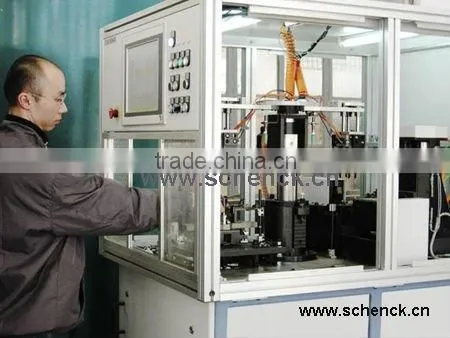

Schenck dynamic balancing equipment RBTU

Specifications

Automatic dynamic balancing equipment
RBTU
Schenck
Digital measurement and control

Automatic dynamic balancing equipment RBTU

Schenck Automatic  Machines
Digital measurement and control

German original measuring unit base on Windows XP operation system and human-machine interaction
German rich mechanical design and manufacture experience
Digital measurement and control
Software system can be recovered by backup conveni-nently
Be capable to connect armature production line
Support remote control and maintenance
Product Specification

Application of this Balancing machine

The balancing machine is designed for measuring and correction theunbalance of various kind of armatures. Be able to connect armatureproduction lines to attain a high production rate.

Unbalance correction by slot milling, polar profile milling or drilling.

Correction Procedure

Polar Profile Milling

The unbalance is corrected in the measured angular position regardless to the slot division.

Slot Milling in Components

In accordance to the number of pole heads the measured unbalance issplit into components and corrected by slot milling into the pole headsof the rotor stack.

Drilling

Correct the unbalance by drilling into the lamination or pole claws

Product parameters
Permissible Rotor Sizes   weight   Max. kg   1.5   Depending on weight and shaft diameter either prism or roller bearing are used in the measuring station.   Shaft length   Max. mm   230   Shaft diameter   Max. mm   12   Stack height   Max. mm   70   Stack diameter   Max. mm   80   Cycle Time   17s   Above technical data will be amended because of improving balancing machines.
