Automatic shearing slitting line

FOB Price

USD $100,000 - $200,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port foshan guangzhou shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Guangdong, China	Brand Name:	TX MACHINERY
Model Number:	Automatic shearing slitting line	Voltage:	380V	Rated Power:	380kw
Dimension(LWH):	17009001400mm	Weight:	1000KG	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

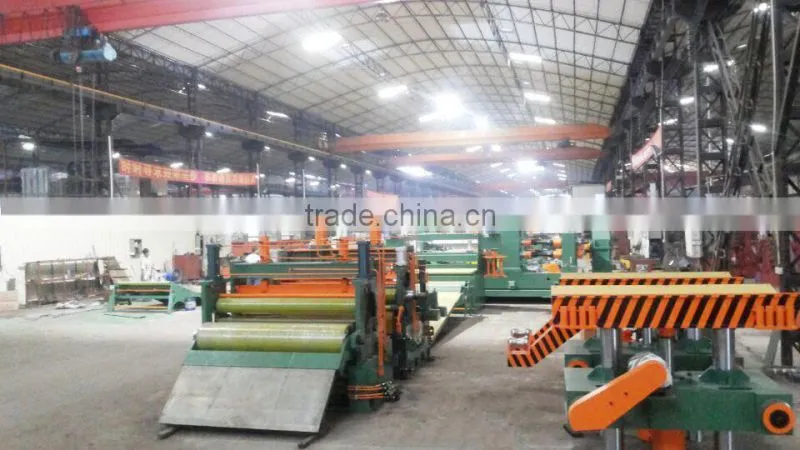

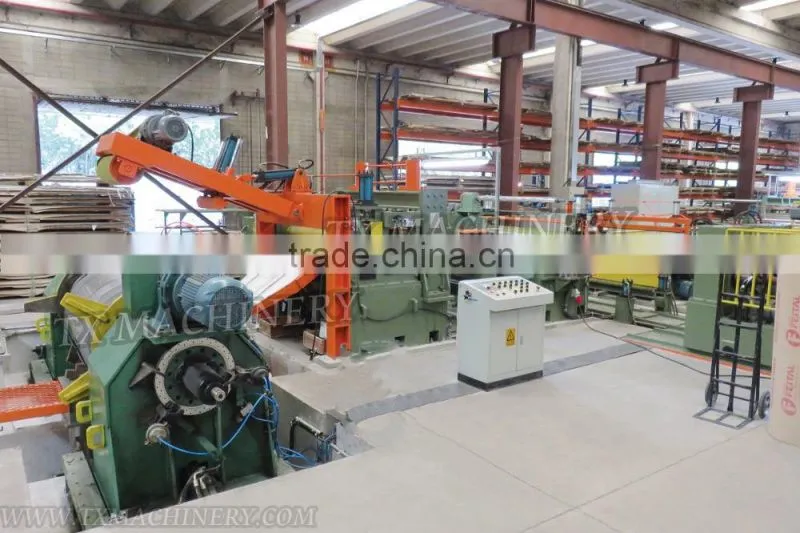

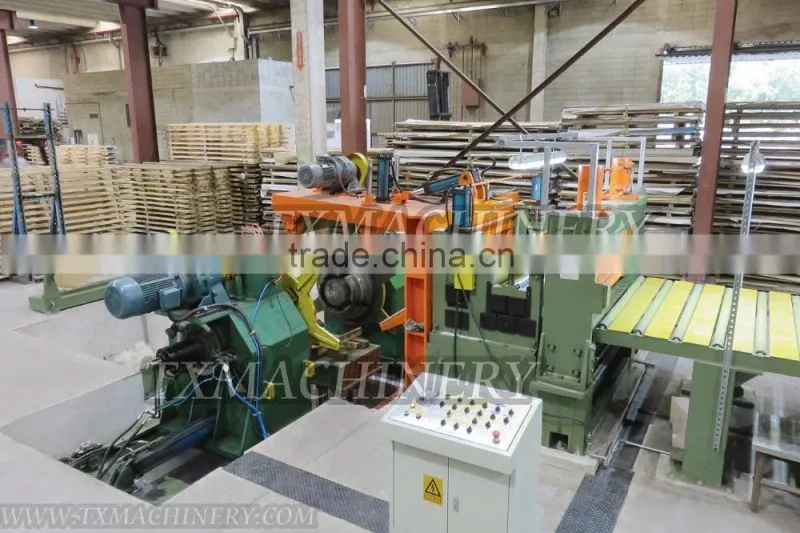

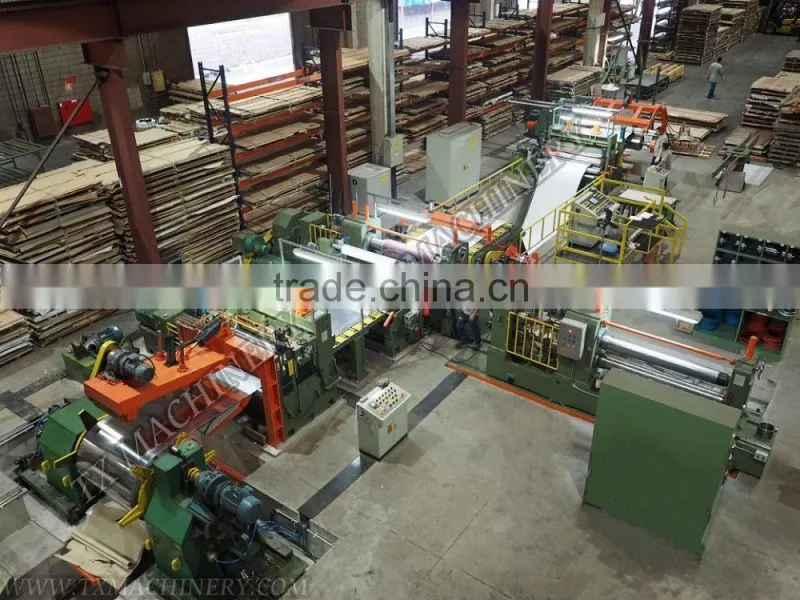

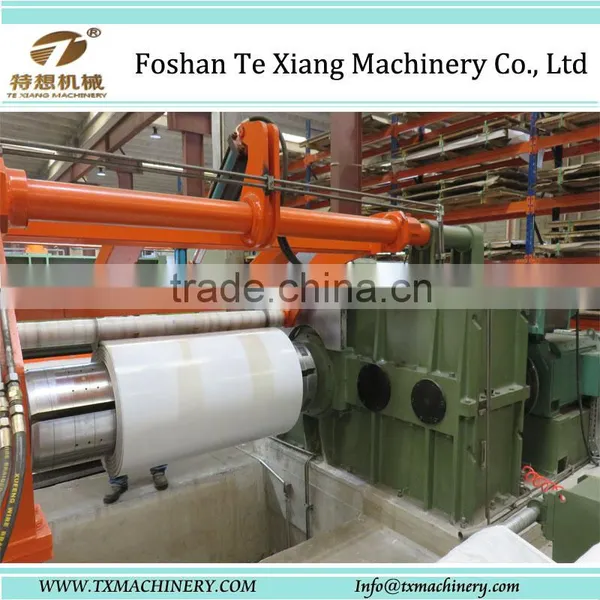

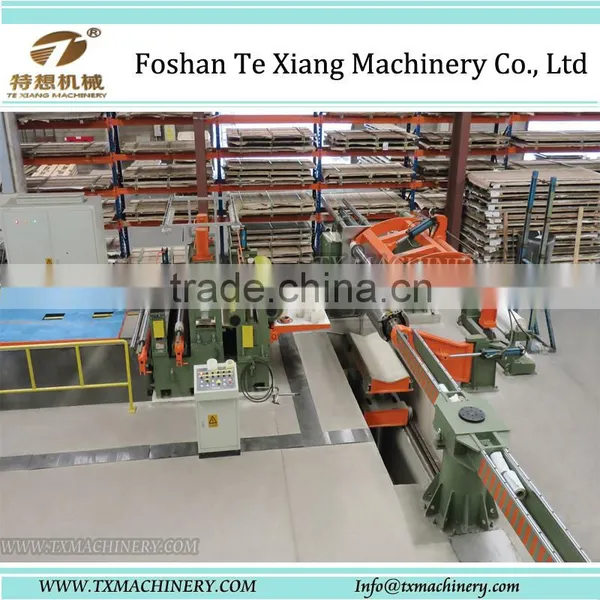

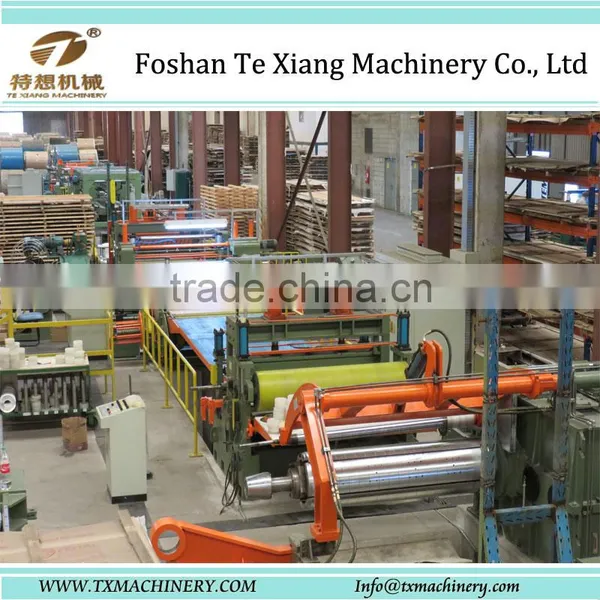

Name: Automatic shearing slitting line

..........................................................................................................................................

lHigh quality machines and tooling to achieve high precision slitting quality.

l No marks no scratches on the material.

l High speed: max up to 250m/min.

l Brand electric, hydraulic, pneumatic control system and components.

Automatic shearing slitting line Features:

........................................................................................................................................

l Low operating costs

l High automation level to reduce non-productive times

l Flexibility from customer-specific arrangement and design

l Fully automatic strip threading systems

l Fully automatic coil peeler for over-payoff and under-payoff uncoilers

l Double slitters(optional), one slitter in production, the other in tool setting, interchanged after the production is finished, minimize the time for tool changing

l Fully automatic adjustment of edge scrap guiding, automatic scraps discharge

l Automatic clamping and unclamping of the cutting tools on the knife arbor

l Automatic strip strand transfer systems

l Special braking units for strips with high surface finish(optional)

Parameters Of This Line

........................................................................................................................................

Description			Technical Parameters
Raw Material Parameters		Raw material	Stainless Steel
		Thickness	0.3~3.0mm
		Width	400~1600mm
		Coil OD	≤Φ1900mm
		Coil ID	Φ480mm~Φ520mm
		Coil Weight(Max)	20T

Finished Product Parameters	Coil ID			Φ508mm
	Coil OD			≤1900mm
	Coil Weight(Max)			Max:20T
	No. of Slit Strip			Thickness: 3.0mm≤10 strips
	Accuracy of Slit width			±0.05mm
	Tolerance of Burr			≤0.05mm
	Minimum Slit Width			25mm
	Scraps width range			2~5mm

Parameters Of Other Configurations

........................................................................................................................................

Model	TX 0.14-1.5	TX 0.3-2.5	TX 0.3-3.0	TX 0.5-4.0	TX 1.0-6.0
Thickness(mm)	0.14-1.5	0.3-2.5	0.3-3.0	0.5-4.0	1.0-6.0
Width(mm)	500-1850	500-1850	500-1850	500-2000	500-2000
Line Speed(m/min)	250	230	200	180	150
Coil Weight(ton)	10,15,20	10,15,20	10,15,20	20,35	20,35
No. of Slit Strip	35	30	20	15	10
Slitting Accuracy(mm/m)	<±0.10	<±0.10	<±0.10	<±0.2	<±0.2
Tolerance of Burr	<5%	<5%	<5%	<5%	<5%
Recoiling Misalignment(mm)	≤1	≤1	≤1	≤1	≤1
Recoiling Looseness(mm)	≤2	≤2	≤2	≤2	≤2

Packaging & Shipping

Electrical panel shipped should be sea worthy packing and treated by anti-rust,
the cargo shall be properly packed in seaworthy packing to the specific items.
The other equipment are naked shall be strong enough to withstand long distance oceanic transportation and multiple handling. Waterproof material shall be adopted where ever it is necessary to protect the cargo from moisture, rain and sea water.
