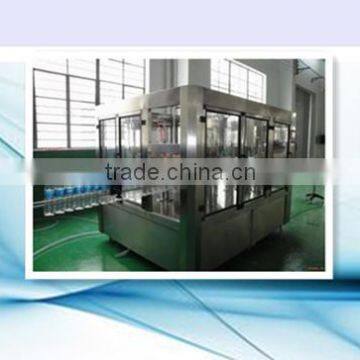

Full automatic small bottle water filling line

1.CGF series filling machine is my compary combined with international advanced technology for atmospheric pressure filling technology and independent research and development of suitable for pure water ,mineral water  and  various water filling of the advanced  type.

2.Frame adopts steel main body ,the appearance of 304 stainless steel ,304 stainless steel frame,adjustable foot.



3.This innovative design has also the effect of the machine being very easily accessible for maintenance purposes and that it can be expanded at any time without conversion for example with an additional cap feeder.

4.The OMRON PLC system offers the ideal solution for conductive non-carbonated fill products,as the fill quantity is measured precisely by an inductive flow meter.

5.All filling process steps can be programmed easily and individually-adjusted to the product to be filled and to the container.

6. Depending on the pitch circle, a central or a tubular ring bowl is employed;

7.Product feed pipes connect the product tank with the filling valves. In each connecting pipe, there is an inductive flow meter which measures the quantity of the product flowing through the pipes via the product’s conductivity;

8. The filling process begins after centring of the container and is effected by the free-jet method;



9. In order to be able to cope with the different bottles and products to be filled, one or two filling speeds are available.

Non-carbonated beverages are filled pressureless in multi-chamber operation;



10. Once the preprogrammed amount of liquid has flown into the container, a flow meter signal will trigger closing of the valve;



11. The fill parameters and programmes are stored in the controller making quick change-overs via touch-screen.



Filling Line Include

Water treatment

- Blow molding machine

- Unscrambler

- Air conveyor

- Rinsing-filling-capping 3-in-1 monoblock

- Sleeve / OPP labeler

- Air dryer, visual inspection, ink jet printer

- Shrink wrapper / wrap-round case packer

- Palletizer



- Etc.

Technical Parameters

Model	CGF8-8-3	CGF12-12-5	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15	CGF60-60-15	CGF72-72-18
RinsingHead	8	12	18	24	32	40	50	60	72
FillingHead	8	12	18	24	32	40	50	60	72
CappingHead	3	5	6	8	10	12	15	15	18
Capacity(BPH)	2000	3000	6000	8000	12000	18000	22000	25000	28000
MotorPower(KW)	1.5	2.2	2.2	3	4.5	6	7.5	9.5	11.2
Weight(kg)	2000	2500	3000	3800	4500	5500	6800	7500	8000



Competitive Advantag



1.Flexibility

It is easy and quick to change-over to other products or filling temperature, and it is reproducible.



2.Hygienic bottling conditions

Minimised surfaces on the filler’s exterior thanks to freestanding transfer starwheels. Mechanical drive units such as gears and joint shafts have been replaced by closed servo drives.



3.Easy maintenance

This machine is accessible so that all maintenance and service job can be performed easily.



4.Future viability

The design of the filler enables retrofitting of another capper or the creation of  a Bloc with rinser, below moulder, or labeller.
