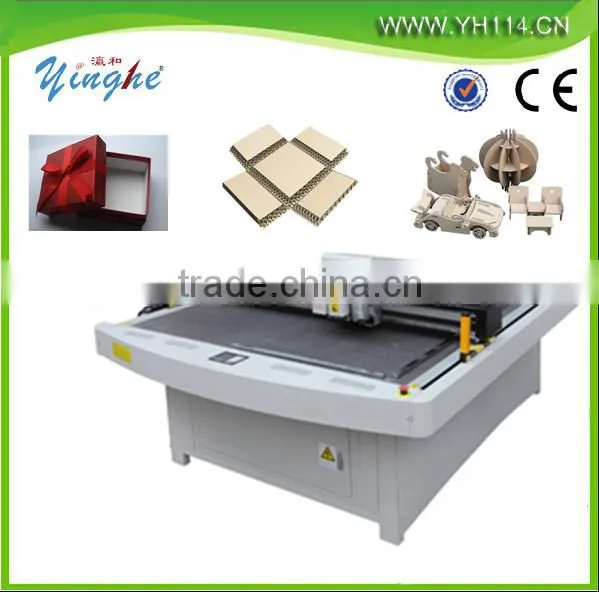

acrylic board, corrugated paper,gray board cutter/cutting plotter machine price

FOB Price

USD $16,000 - $21,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Application:	Textiles, Other, Textiles, packing	Packaging Type:	Cans, Cartons, Case, Film, Foil
Packaging Material:	Paper	Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	AC 220V 380V ±10%,50HZ	Power:	2 KW	Place of Origin:	Guangdong, China
Brand Name:	Yinghe	Model Number:	YH-2516	Weight:	900KG
Dimension(LWH):	330022501200mm	Certification:	CE Certificate	After-sales Service Provided:	Engineers available to service machinery overseas

Technical parameters

Technical parameters/model			YH-2516
Operation properties			Computer operation and cutting machines can be used
			simultaneously for quick data transmission capable of continuous
			operations
Cutting speed			Maxi 1500mm/s
Cutting Thickness			0.5-15mm
Cut materials			Corrugated materials,sponge and foam board,lvory cardboard,
			gray paper, corrugated paper,plastic sheets,composite materials
			and leather materials maximum cutting thickness at 15mm
Number of pens			8 different groups of strokes,half blades,full blades and pressure
			wheel setup
Positioning device			Red Ultra-Light
Method for fixing paper			Vacuum absorption
Cutting tolerance			±0.2mm
Repeat accuracy			less than 0.05mm
Minimum circle			less than 5mm diameter
Transmission interface			Ethernet port
Format compatible			Compatibility format AI software,Autocad,Coraldraw and all box
			software
Direcive system			HP-GL and GP-GL

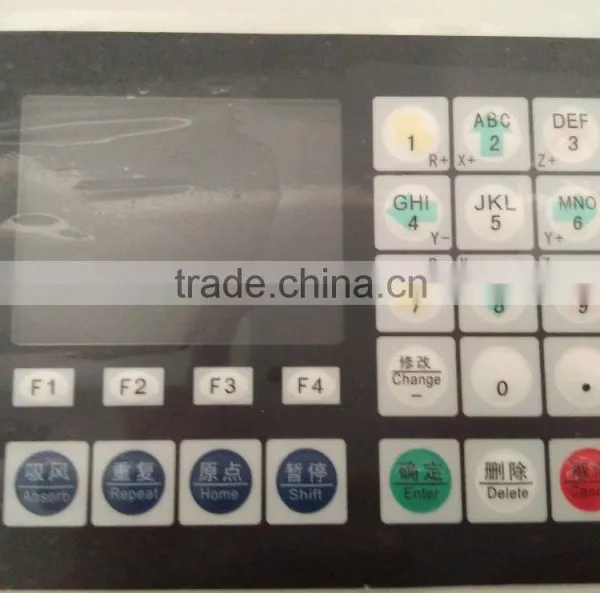

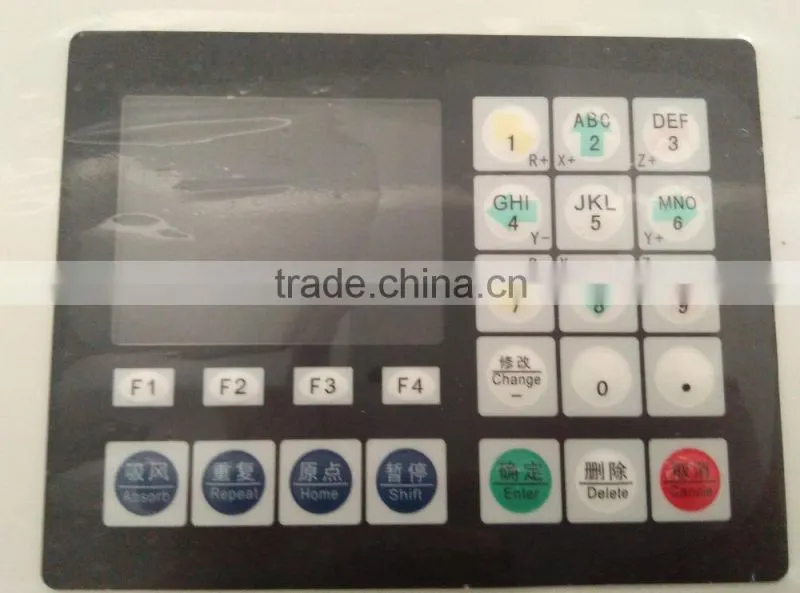

Digital control panel			Liquid crystal display and contact button
Transmission materials			Straight-line guide rails and imported synchronous belts
Supply voltage			AC 220V 380V ±10%,50HZ
Vibration blade			Vibration cutter head motor at 25000rpm
Cutting area			2500mm*1600mm
Overall dimension			330022501200mm

Functions and specialfeature

1. A product of Sino-Swiss technologies,servomotors imported from Switzerland.The motor are
running,Vibrating at rotary speed up to 25000rpm
2. Using Servo-motor from Panasonic,to control up,down and turn of Vibration Cutting head and
creasing head independently.With computerized conttrol,the depth of cutting and creasing can be
adjusted precisely according to the need of box designer and makers.
3. The machines have The machines have three types of functional heads:vibration cutting
head,creasing wheels,V-Cutter,high speed milling Router,with drawing pen.It enable the machine
can work on different materials; corrugated paper, gray board, white cardboard, plastic sheets,
composite materials, textiles, leathers, foam board, sponge etc at option of 15mm maximum
cutting height.
4. Date wire all imported from Germany.
5. Table mat are imported from USA,the fiber board are durable,with good,permeability,very stable
in thickness and shape.
6. Date is transfer by Ethernet,the most stable method.File can be exported to machine directly
from Adobe Illustrator,Coraldraw without conversion to maintain maximum accuracy.
7. Ultra Red Light sensor are equipped for user friendly and safety(machine automatically stop
when perator's hand into the working area).
8. Machine can ruu at the maximum speed of up to 1500mm per second.
9. All fine tuning can be made with control penal on the machine.
10. Red Ultra-light positioning device for printed work can be cut accurately in easy and quickest
way.

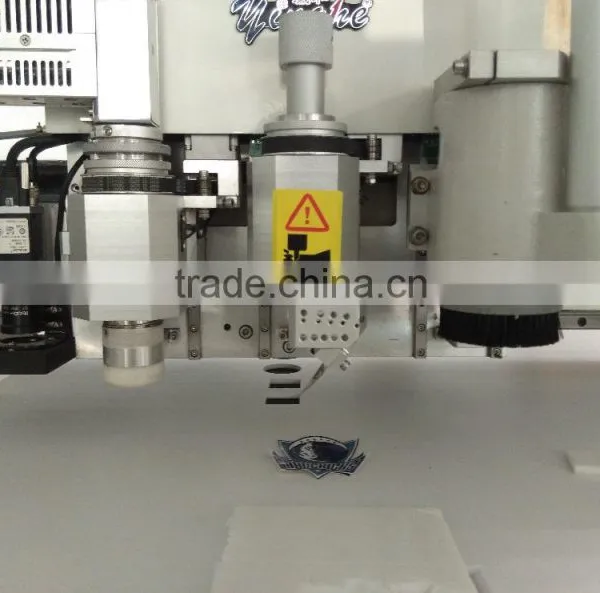

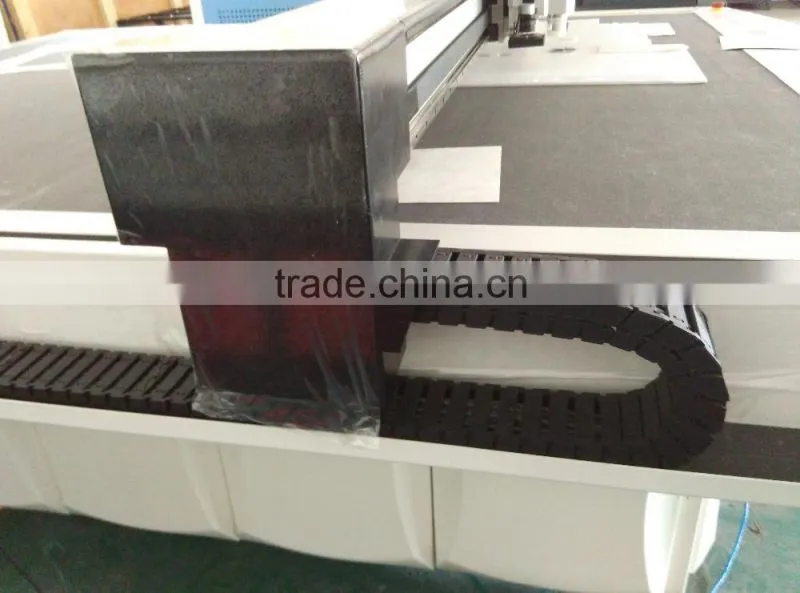

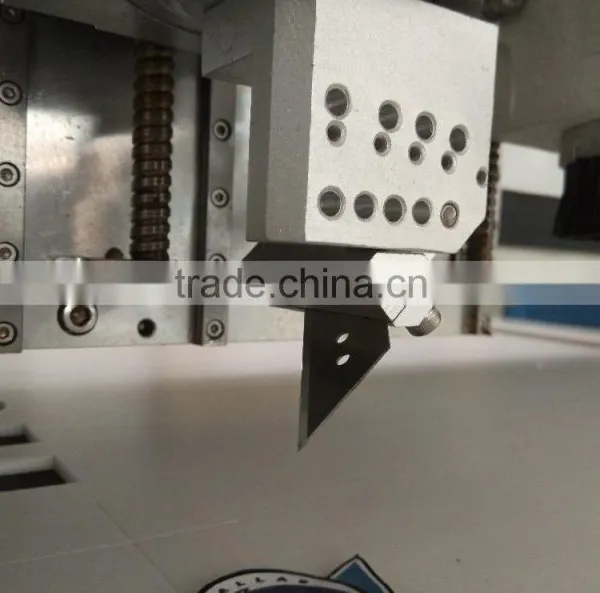

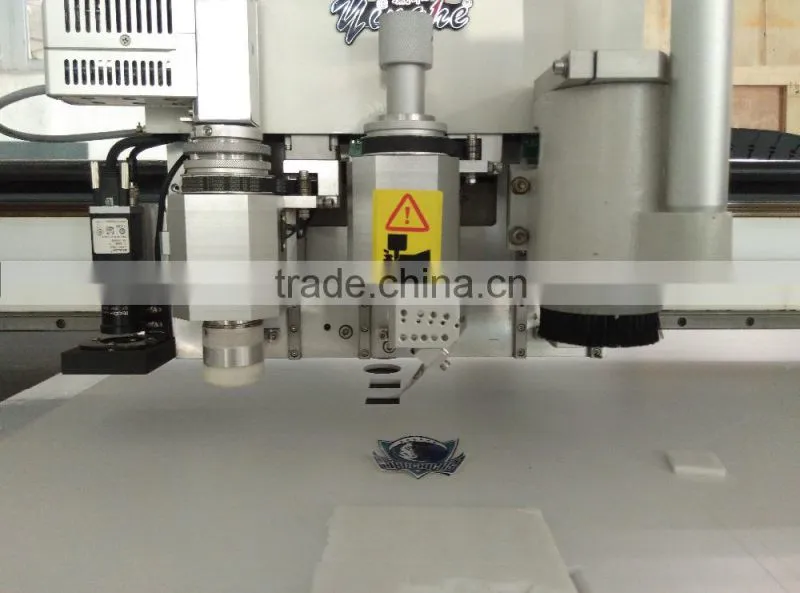

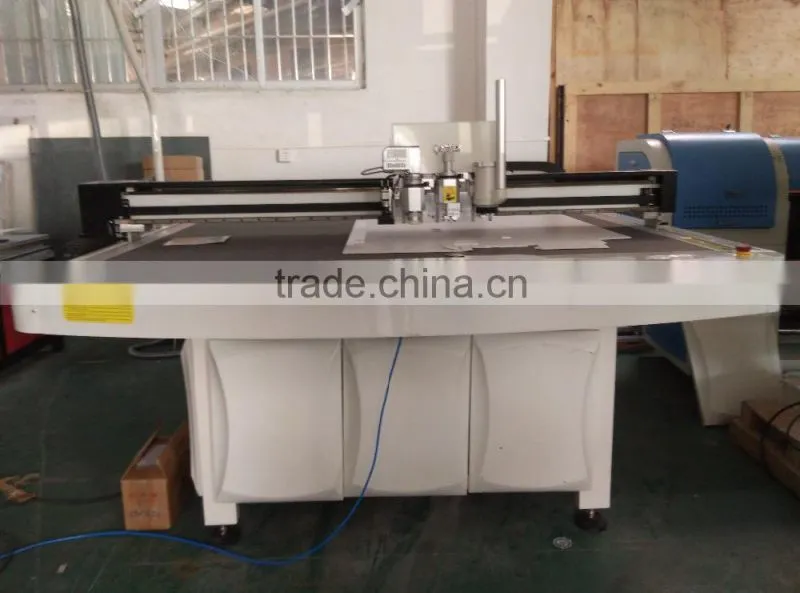

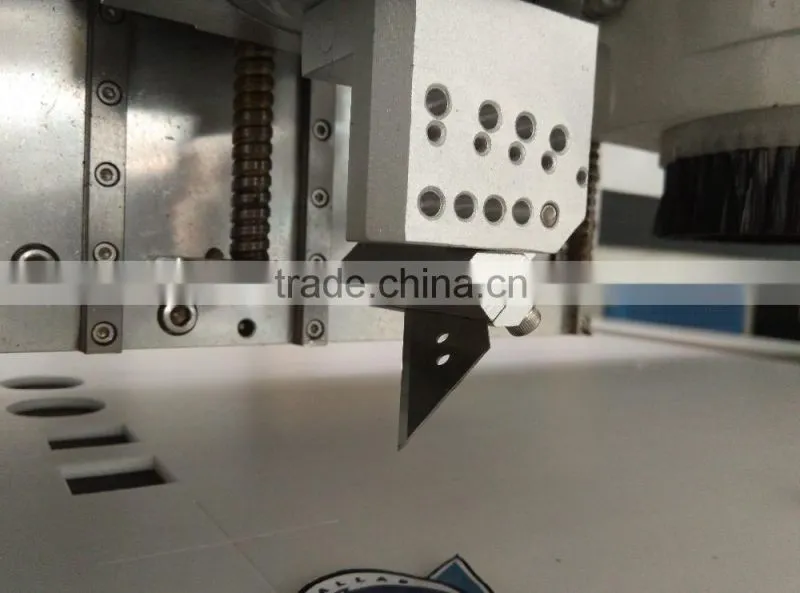

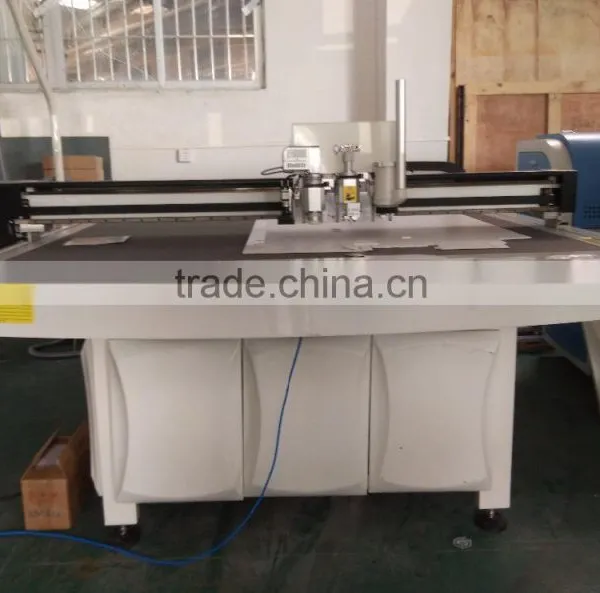

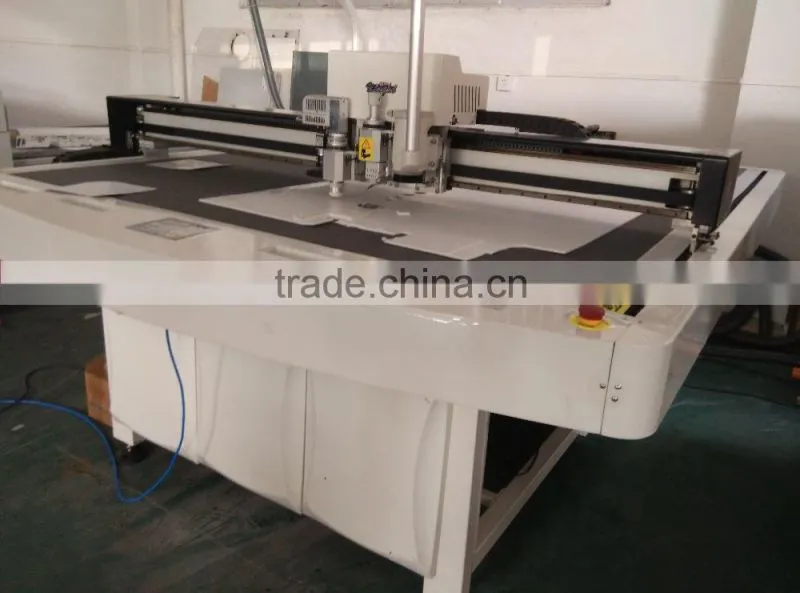

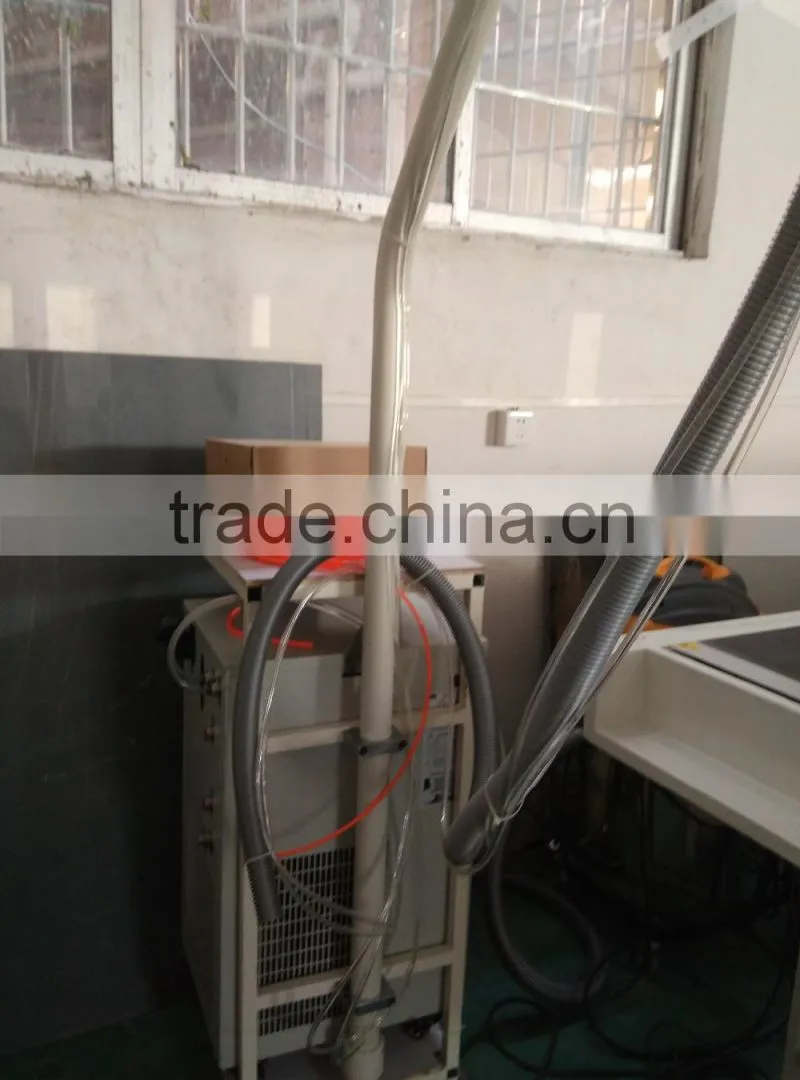

Picture of details

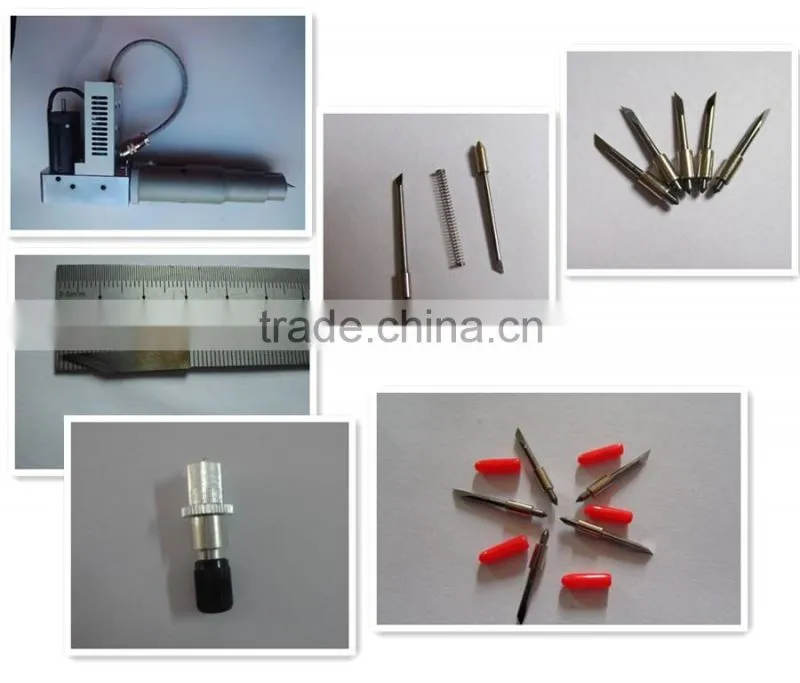

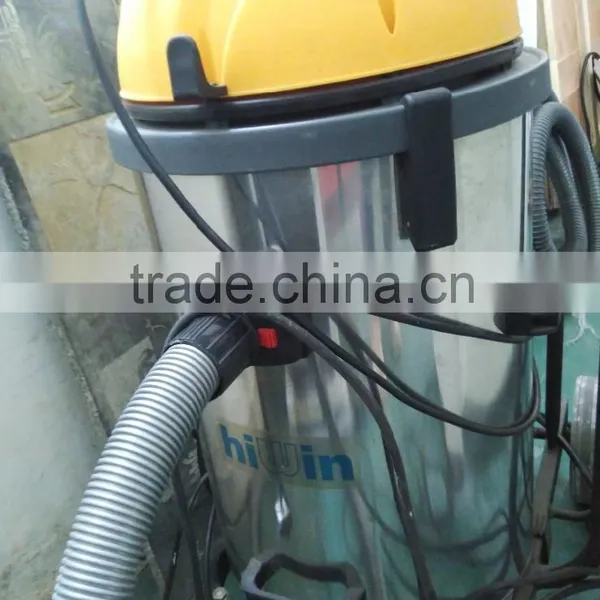

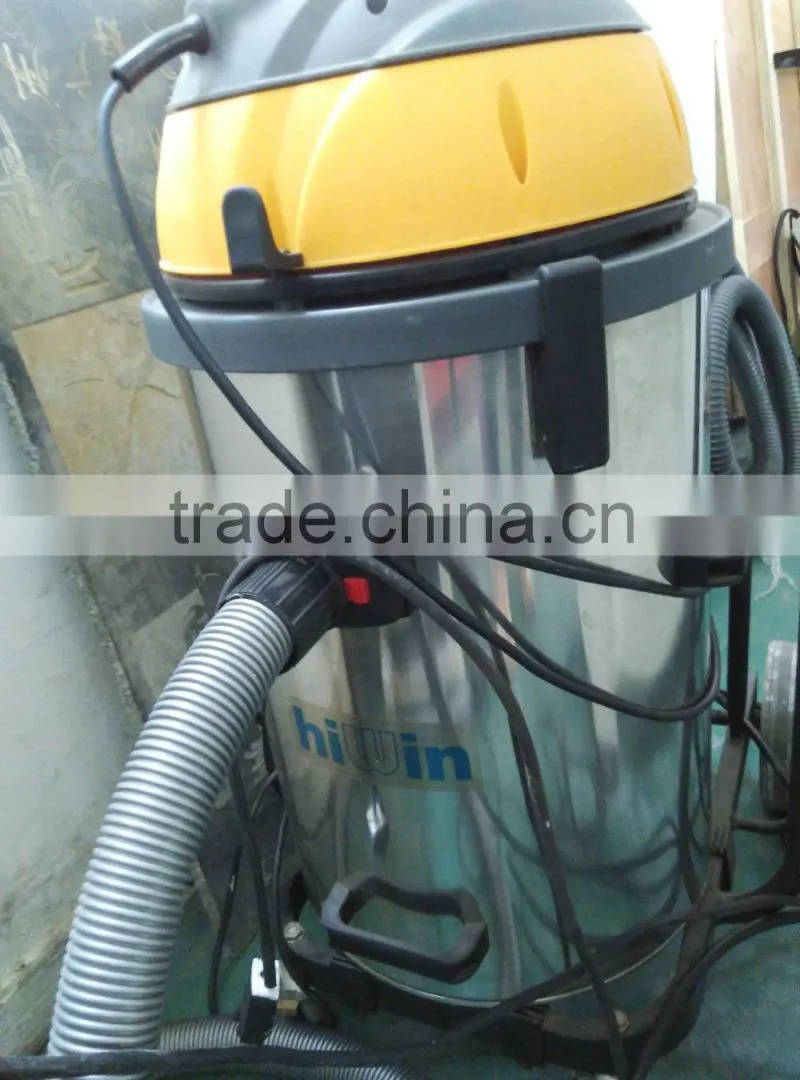

Spare part

Samples
