Specifications

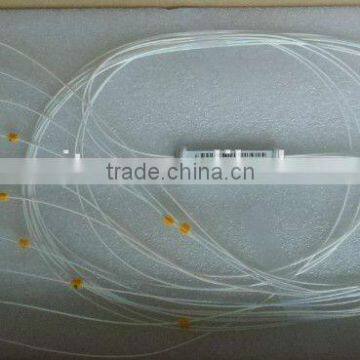

mini type..steel tube design.Applications:
1. Optical communication system
2. System and signal monitoring
3. CATV Systems & Fiber Sensors
4. Fiber to the home (FTTH)
5. Network redundancy
6. Laser splitting
Features:
1. Various coupling ratio
2. Single mode and multi mode available
3. Low insertion loss, low PDL
4. Industry standard and custom housing available
5. Variety of connectors available
6. 1x2, 1x4 and 1x n customized couplers configuration available
Parameter:
Parameter | Configuration | |||
N x 4 (N=1,2,4) | N x 8 (N=1,2,8) | N x 16 (N=1,2,16) | N x 32 (N=1,2,32) | |
Operate Wavelength(nm) | 1310/1550, or customized | |||
Bandwidth(nm) | ±20 | |||
Max.Excess Loss(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Typ.Insertion Loss(dB) | 6.2 | 9.3 | 12.4 | 15.5 |
Max.Insertion Loss(dB) | 6.8 | 10.2 | 13.6 | 17 |
Uniformity(dB) | 1.2 | 1.8 | 2.4 | 3 |
PDL(dB) | 0.08 | 0.12 | 0.16 | 0.2 |
Thermal Stability(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Directivity(dB) | ≥60 | |||
Operate Temperature(°C) | -20~+70 | |||
Lead Length(m) | customized | |||
Lead Type(mm) | φ3.0, φ2.0, φ0.9 | |||
