Fully Automatic solder cream mixer

FOB Price

USD $960 - $2,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	SAM	Model Number:	MIX5000D
Voltage:	220V	Current:	60W	Rated Capacity:	500*2
Dimensions:	420420447mm(WDH)	Weight:	30kg	Usage:	Mixing solder paste
Certification:	CE	After-sales Service Provided:	Overseas service center available

High efficient; mixing paste
MAX dosage:2 cans paste one time.
Mixing method:revolution/rotation
solder paste soften machine

Features:

Unique contoured shape, geneous appearance and practical, which is made by advanced coating process workmanship.
Mixing principle is on the basis of Motor rotation and revolution mode of agitation, no need to defrost the paste. Need to recovery the paste in short time, then can be used after stirring well and deforming.
500g paste applied to all brands can be mixed with 2 cans one time, which can save time and improve efficiency.
Closed stirring can fix running time, make sure stability of paste softness, and by stirring old and new paste can make new

Specifications:

Working voltage	220V AC 50HZ 60W / 110V AC 60HZ 60W (OPTION)
Running speed	Primary rotating : 1000PRM Secondary rotating : 380PRM
Working capacity	Adapter: 500g* 2Jar 1000g* 2 jar (option: please contact supplier)
Accept jar size	M dia.60-67 Standard size S dia. 53-60 (Option: please contact supplier) L dia. 67-84 (Option: please contact supplier)
Time setting	0.1-9.9 min can adjust 0.1 min every time 10-30 min can adjust 1.0min every time
Display and alert	LED display, light and buzzer alert
Machine Size	420420447mm(WDH)
Package size	520510510mm(WDH)
Weight and net weight:	30/32KG

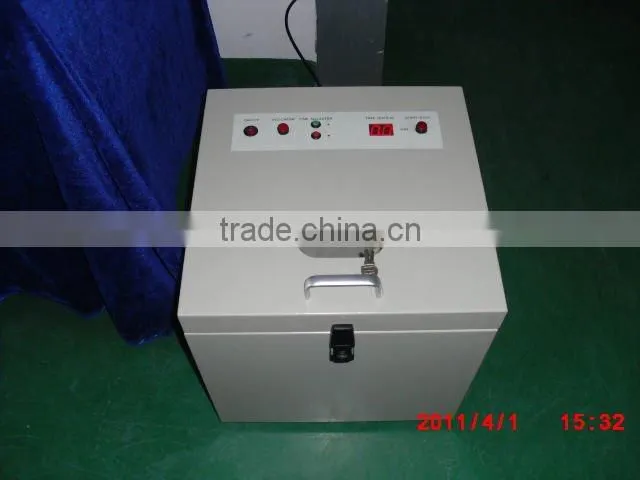

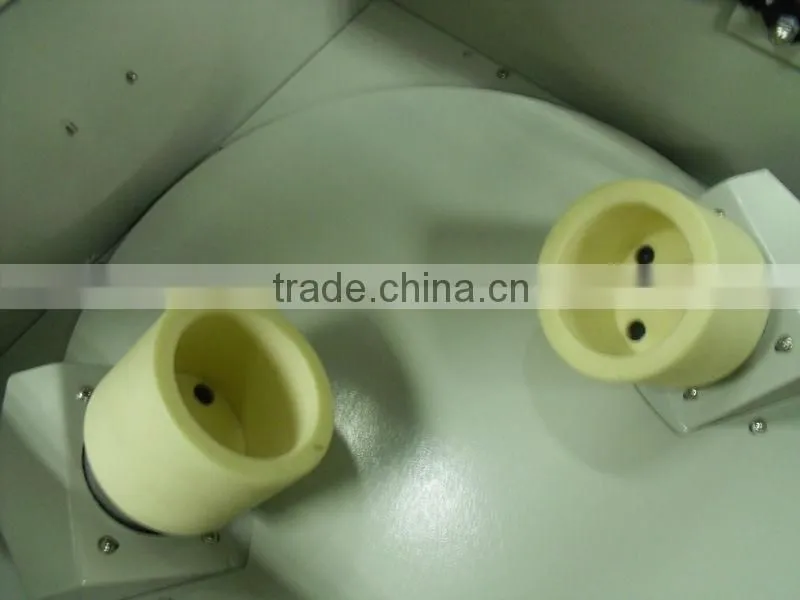

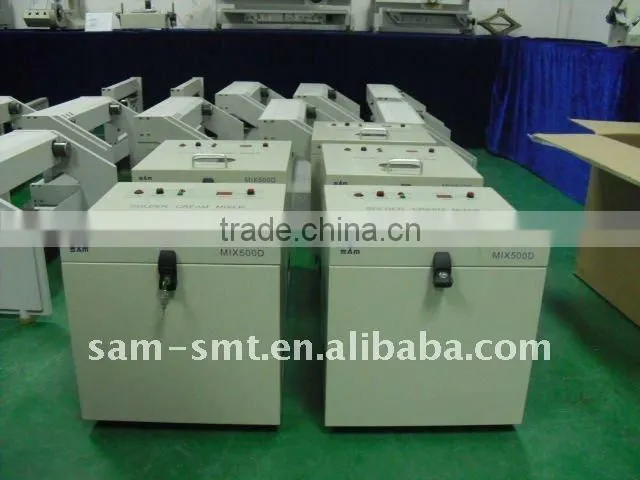

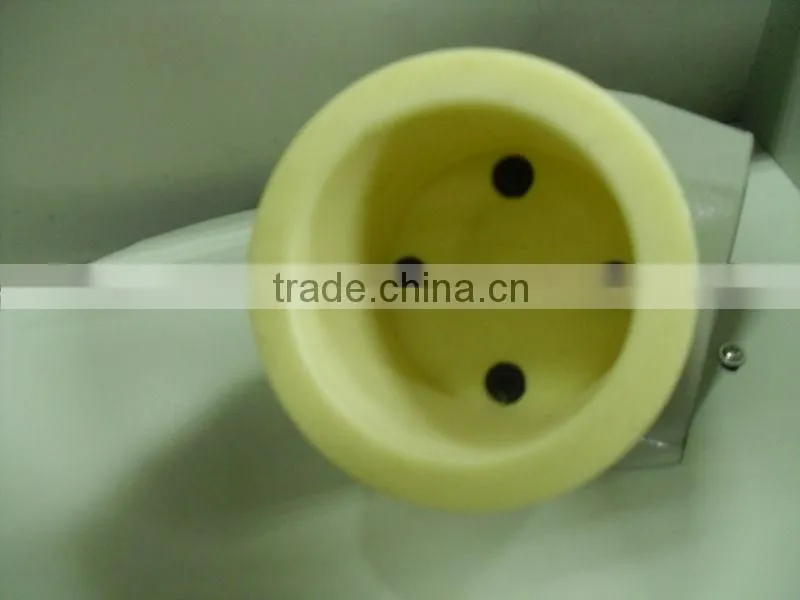

Detail pictures :

Package
