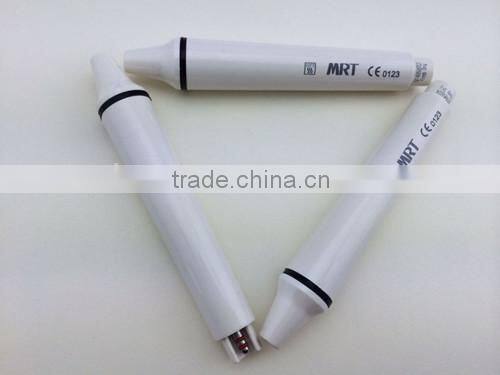

Ultrasonic Scaler Dental Surgical Handpiece

The air supply must be free of moisture.

The water supply must be filtered.

2. Installation:

Holding the tip-end, turn clockwise and fasten securely tighten with wrench.

Shout off the water supply.

Adjust air pressure to 2.8KG/CM2

Adjust the water flow until a fine mist ejects from the tip.

3. Lubrication:

Supply 2-3 drips into the drive air tube once or twice a day or spray lubricant into inlet hole of handpiece for about two seconds.

Technical data:

1. Available AirPressure: 2~3.5KG/CM2

2. Air Volume: 15~24L/Min

3. Air Pressure: 2.8KG/CM2

4. Sound Level: 65-68dB

Packing List:

1 x Air Scaler Handpiece 4H

1 x Air Scaler Tip G1

1 x Air Scaler Tip G2

1 x Air Scaler Tip G3

1 x Tip Wrench

Features

1>The handpiece is cast from Titanium alloy to ensure sound mechanic function
and durability.
2>The handpiece has high and long lasting power and generates little heat.
3>Detachable handpiece can be autoclaved under the high temperature of 135
and pressure of 0.22Mpa avoiding cross-infection effectively .
4>To eliminate the dental calculus ,bacterial plaque ,and tea scalers on the teeth
quickly without hurting the gum and the enamel.
5>Small and high designed,easy operation.
