Home > Products > Conjoined rear axle and motor > brushless dc motor with gearbox
brushless dc motor with gearbox
Negotiable
/ Set
50 Sets(Min.Order)
- 1000 Set / Sets per Month
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | DT | Model Number: | 770mm,800mm,900mm,1000mm,1100mm,1200mm |
| Usage: | Car, Other, Car, passer and van | Certification: | CCC, CE | Type: | Gear Motor |
| Torque: | 40-70N.m | Construction: | Permanent Magnet | Commutation: | Brushless |
| Protect Feature: | Waterproof | Speed(RPM): | 2800-3000rpm | Continuous Current(A): | 25A |
| Output Power: | 800 | Voltage(V): | 48v | Efficiency: | IE 2 |
Product Description
Specifications
48v/60v/72v dc brushless motor800w-1500w controller
3000rpm dc gear motor
35-45km/h dc motor
800mm,1200mm rear axle

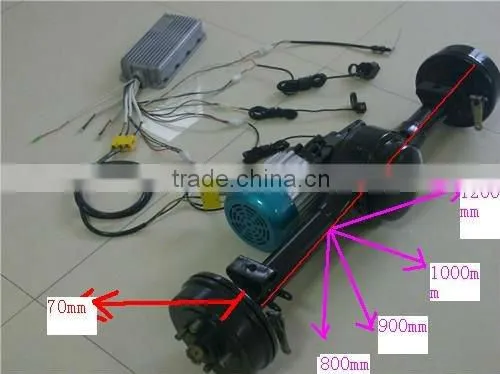

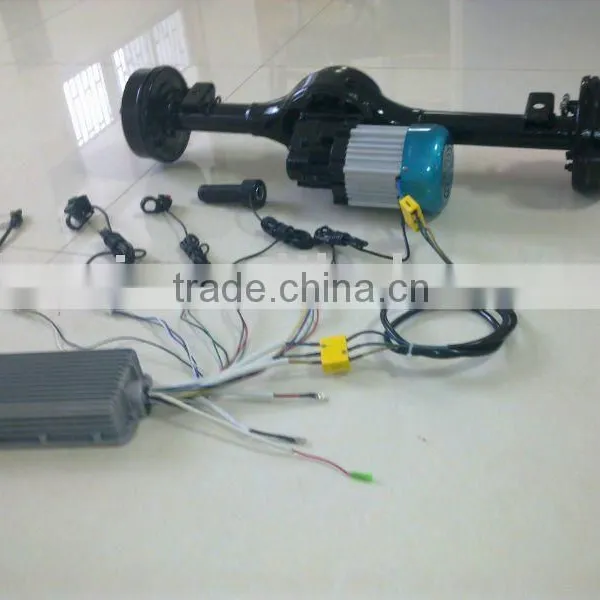

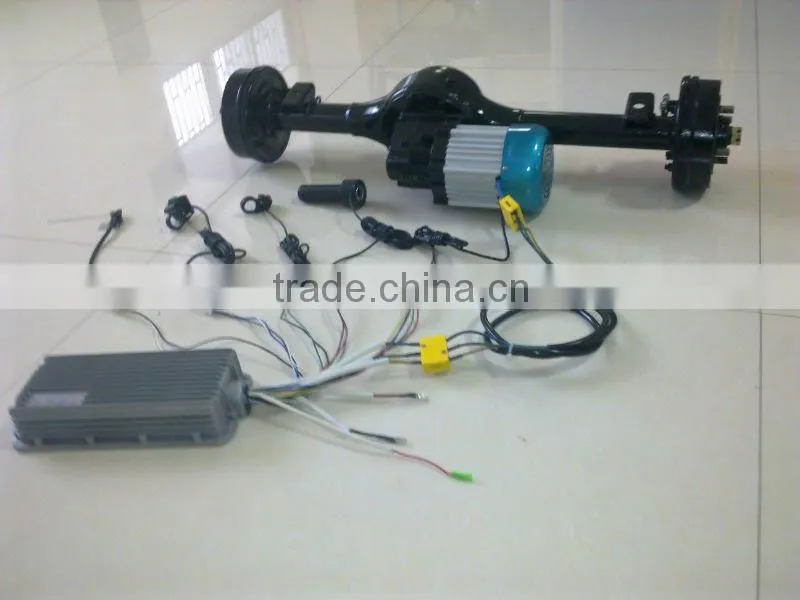

complete set of a transaxle kit as shown in the picture(1.brushless dc Permanent magnet gear motor ntroller 3.rear transaxle 4.two direction awith 5.brake power switches nnection box 7.afterburner start switch 8.throttle) Rear Transaxle size:800mm,1200mm or accoding to your Requirements,Brake hub Diameter:180mm(40km-50km/h) it use for Electric tricycle
(passenger and van)CCC,CE
(passenger and van)CCC,CE
1.motor details
| Rated | Maximum load | Eff | Climbing degree | ||||
| voltage | current | Power | Speed | torque | |||
| 48V | 25A | 800W | 3000rpm | 40N.m | 1000KG | 83% | 20-30 |
| 48V | 28A | 1000W | 3000rpm | 45N.m | 1200KG | 83% | 20-30 |
| 60V | 25A | 800W | 3000rpm | 40N.m | 1100KG | 83% | 20-30 |
| 60V | 28A | 1000W | 3500rpm | 45N.m | 1300KG | 83% | 20-30 |
| 60V | 30A | 1200W | 3500rpm | 50N.m | 1400KG | 83% | 20-30 |
| 60V | 32A | 1500W | 3500rpm | 60N.m | 1500KG | 83% | 20-30 |
| 72V | 28A | 1000W | 3500rpm | 50N.m | 1400KG | 83% | 20-30 |
| 72V | 30A | 1200W | 3500rpm | 60N.m | 1500KG | 83% | 20-30 |
| 72V | 32A | 1500W | 3500rpm | 70N.m | 1600KG | 83% | 20-30 |
60v 2000w speed is 40-45km/h
48v 2000w speed is 40-45km/h
72v 2000w speed is 40-45km/h
ntroller details
| Rated | Maximum limit | under voltage | brake handle voltage | brake blackout | |||
| voltage | Power | ||||||
| 48V | 800W | 75A | 41.5±0.5V | 1.2-4.3V | low level | ||
| 48V | 1000W | 80A | 41.5±0.5V | 1.2-4.3V | |||
| 60V | 800W | 75A | 50.5±0.5V | 1.2-4.3V | |||
| 60V | 1000W | 80A | 50.5±0.5V | 1.2-4.3V | |||
| 60V | 1200W | 85A | 50.5±0.5V | 1.2-4.3V | |||
| 60V | 1500W | 90A | 50.5±0.5V | 1.2-4.3V | |||
| 72V | 1000W | 75A | 63±0.5V | 1.2-4.3V | |||
| 72V | 1200W | 80A | 63±0.5V | 1.2-4.3V | |||
| 72V | 1500W | 85A | 63±0.5V | 1.2-4.3V | |||
2000w controller maximum limit 95A
