15 HP Diesel Engine

Specifications

DIESEL ENGINE 15 HP WATER COOLED FOR AGRICULTURE AND CONSTRUCTION





BRIEF SPECIFICATIONS Vidhata engine factory

TYPE

Vertical, Single / Double Cylinder, Water Cooled, Totally Enclosed, Compression Ignition, Four Stroke, Cold Start, Diesel Engine.



COMBUSTION CHAMBER

Direct injection in open type combustion chamber provided in an aluminium alloy piston with long stem multihole nozzle resultsinto low fuel consumption and easy starting.



FUEL SYSTEM

High Speed diesel is supplied to the fuel pump by gravity feed through an efficient replacable paper element type main filter. Industrial type double bowl heavy duty type filter BOSH make also available.



LUBRICATION

Engine’s moving parts are lubricated by force feed and partly by splash lubrication. A throwaway type bypass filter is provided for filtering the lubricating oil. Lub. Oil is supplied under constant pressure by lub. Oil pump. Centrifigal type Lub. Oil cleaner also available for long engine life.



GOVERNING

A sensible mechnanical centrifugal type governer mounted on the camshaft gear. Speed variation is controlledwithin limits to comply with class B1 governing as per IS:10001 (GENERAL PURPOSE)



COOLING

Engine is continuously cooled by flow of water. Either by Radiator mounted on engine or direct water supply. Front radiator mounted engines also available.



ROTATION

Standard rotation is clockwise looing at fly wheel. Engine with reverse rotation can also be provided on demand.



STARTING

The engine is designed for starting by hand. Electric Start Provision can also be provided against specific reauirement. Dynamo battery chargers also available.



DRIVE

Standerd power take off is from flywheel side. Power Take off from gear end at half speed can be provided on demand.



STANDERD ACCESSORIES

Starting handle, Exhaust Silencer, Air Cleaner, Spanner Set & Screw Driver.



OPTIONAL ACCESSORIES

Drum Pulley, Variable speed Lever, Fly wheel Guard, Engine lift hook.



POLLUTION CONTROL DEVICE

Single Element Catalytic Converter for control of NOx, CO, THC & HAPs.



SOUND & VIBRATION CONTROL DEVICE

We offer Canopy, Industrial type Air cleaner & Silencer, Round Duct Expansion Joints, Anti Vibration Mounts etc.



SOUND & VIBRATION CONTROL DEVICE

We offer Canopy, Industrial type Air cleaner & Silencer, Round Duct Expansion Joints, Anti Vibration Mounts etc.





Diesel engine with (PTO), is an anx. gear box which when coupled to vehicles transmit power to pumps, compressors which are used for operating attatchments. Our precision engineered and heavy duty power take off shafts (PTO shafts) meet the stringent specifications of various tractor and automotive manufacturers worldwide. The PTO are available in different specifications and are made up of high quality metals that are brushed and polished for smooth and rust free operations.

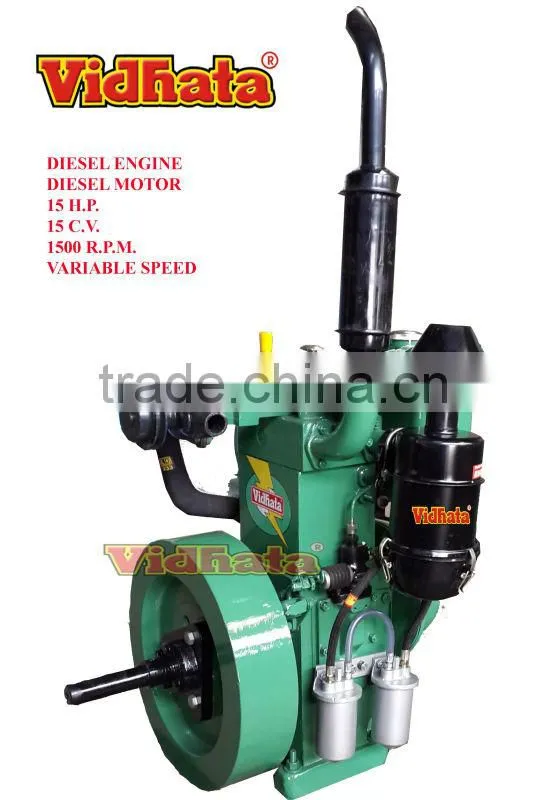

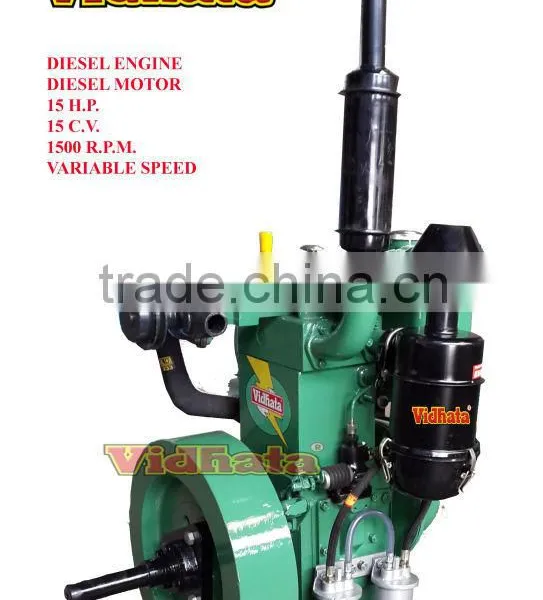

15 hp diesel engine with on and off clutch type arrangements with power take off pulley as per required size water cooled engine with variable speed lever



We provide two types of PTO Diesel Engine:-

1- water cooled

2- air cooled



Attachments such as 12 Volt self start with 12 volt dynamo battery charger with Amp. Meter and charging lamp with key starter also available.

Our company can manufacture other attachments as required by specific data given by the customer.

All above engines are handle start.

STANDARD PARTS SUPPLIED WITH ENGINE (FREE OF COST) Air Cleaner, Silencer, Wrench Set, Screw Driver, Starting Handle, One Bag, Oil Can, Instruction Manual.

ACCESSORIES (EXTRA COST)

• Blower type cooling
• Variable speed lever
• Pulley

STUFFING

In one 20 Ft. Container about 88 Single Cylinder Engines can be stuffed.

APPLICATION

These are Multipurpose Engines can be used in Irrigation , Threshers, Flour Mills, Generating, Turbine Pumps, Saw Mill, Constructive Work, Industries, Powering Crushers use, concrete mixtures, compressors Etc.

PAINTING & PACKING

OUR SPECIAL DIESEL ENGINES ARE BUILT WITH SPECIAL CARE WITH HIGH QUALITY PARTS, HIGH QUALITY EPROXY PAINT FINISH AND PACKING IN REUSABLE IRON FRAMES WHICH CAN EASILY DIMENTAL AND EASSY TO HANDLE

GOVERNING

A sensible mechanical centrifugal type governer mounted on camshaft gear, speed variation is controlled within limits to comply with class A2 governing as per IS:10001(General purpose)
