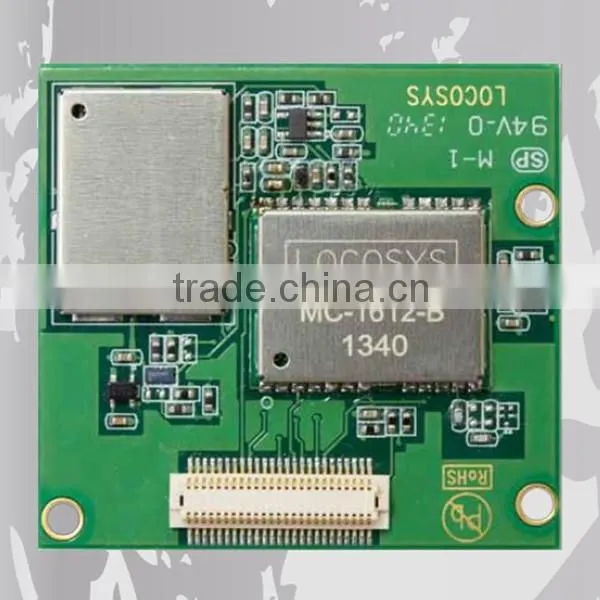

COMBO GNSS, car GPS/GSM/GPRS/GNSS MODULE

Specifications

COMBO GNSS, car GPS/GSM/GPRS MODULE
Supply voltage range: 3.5 ~ 4.5 VDC
50 pins Hirose DF12 board to board connector

COMBO GNSS, car GPS/GSM/GPRS/GNSS MODULE



General Specifications





GPS, BeiDou, SBAS, QZSS L1 frequency for GNSS; standard NMEA-0183 messages output
Quad band GSM/GPRS 850/900/1800/1900MHz; control via AT commands
Dimensions: 33.0 x 35.0 x 6.0 mm ± 0.2 mm
Weight: 7.8 g
Supply voltage range: 3.5 ~ 4.5 VDC
Operation temperature: -20 °C to +70 °C
Storage temperature: -40 °C to +85 °C
50 pins Hirose DF12 board to board connector
ISO/TS 16949 quality control



GSM/GPRS Specifications



Quad-band GSM/GPRS: 850 MHz/900 MHz/1800 MHz/1900 MHz
Maximum transmitter power
GSM850 Class 4 (2 W)
EGSM900 Class 4 (2 W)
GSM1800 Class 1 (1 W)
GSM1900 Class 1 (1 W)
Compliant to GSM/GPRS Phase 2/2+
GPRS Class 10: Max. 42.8kbps (uplink); Max. 85.6kbps (downlink)
Coding schemes CS 1, CS 2, CS 3, CS 4
PBCCH support
Integrated TCP/IP stack
CSD up to 9.6kbps
Point-to-point MO and MT
SMS cell broadcast
Text and PDU mode
Refer to HUAWEI MG323-B GSM LCC AT command list



GNSS Specifications





GPS, BeiDou, SBAS, QZSS L1 frequency for GNSS;standard NMEA-0183 messages output
Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
Support 99-channel GNSS
Fast TTFF at low signal level
Built-in 12 multi-tone active interference canceller
Free hybrid ephemeris prediction to achieve faster cold start
Built-in data logger
Up to 10 Hz update rate ±11ns high accuracy time pulse (1PPS)
Indoor and outdoor multi-path detection and compensation
Sensitivity: tracking -165dBm; cold start: -148dBm
Acquisition time: cold start: 33s; hot start: 1s; AGPS: 15s
Accuracy: 2.5m CEP
