Cheapest SMD3528- 60leds/m 220V rgb ip65 LED Strip lights

Specifications

220V rgb led strip light
Width:8mm waterproof type
CW/WW/Red/Green/Blue/Yellow
110-220v 60LEDs-4.4/m
CE ROHS

Cheapest SMD3528- 60leds/m 220V rgb ip65 LED Strip lights



220V rgb led strip light Features:



1, High Voltage LED light bar installation is relatively simple, can be directly used to drive

high-pressure drive.Can be run in 220V or 110V without extra adaptor or power source.



2, high-voltage LED Flexible Strip can generally be done from 100 m / roll; and also be cut or

connected in every meter.

3, The SMDs are in parallel and independent,so one broken doesn't influence others.

4,  PVC tube is good for waterproof and can be used indoor and outdoor.

5, Solid-state for high vibration resistance and good flexibility for any shape.

6, Energy saving. Power Consumption: SMD3528:3.5W/ M,SMD5050:7W/ M.

7. 3528 & 5050 LED provide greater brightness compared to 3mm LED used in rope light.
8. Independent LED, one led broken will not affect next leds (3538 double row and 5050).

  220V rgb led strip light Aplications

1.Indoor and outdoor decoration lightings
2. Large scale backlight
3. Window display lighting
4. Building contour decorative lighting
5. Ad. Signs, light boxes
6. Landscape outlines
7. Car and motorcycle decorative lighting
8. Bridge edge lighting
9. Architectural decorative lighting
10. Emergency hallway lighting



Product Name	LED Strips
Model No.	SL-LSH-3528R60D
Lamp Total Power	18W/M
LED Light Source	60PCS (SMD3528)/M
IP classification:	ip65/ip66
Product Dimension (mm)	5000*14*8mm
Lamp Rated Luminous Flux @ 20MA	18-20LM/pcs
Cuttable:	every 1 meter
Color:	R,Y,B,G,CW,WW,PW
Function	Chasing,twinkling,Skip,Guadual changing,static single color
CRI	> 70 Ra or >80 Ra
Life time	> 3,500hrs
Input voltage	ac220/110v
Operating temperature:	.-20°C to +50°C

  220V rgb led strip light

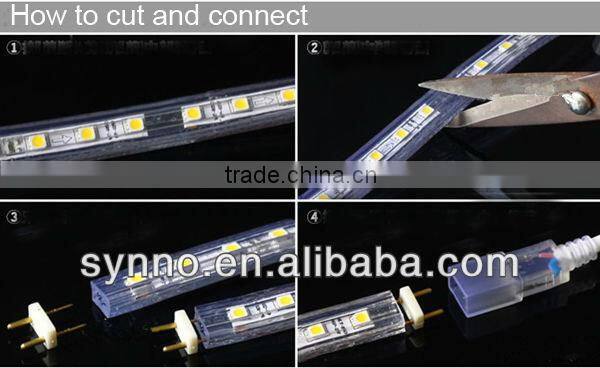

220V rgb led strip light Installation process:

A. Install: Take out the package, make sure it comes with necessary accessories, which should include: fixing clips, middle plugs, end caps, head wires.   Fix the strips with clips onto where you need, put the wire into sockets to light th strips.

B. Cut: Please cut the strips only along the cutting mark on the PCB, don’t cut at random. Block up the end with end caps, seal with enough glue to make sure it’s still waterproof.

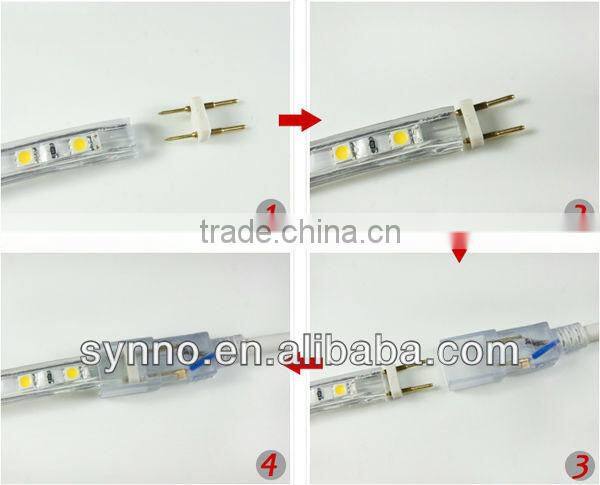

C. Connect: Plug the head wire into a strip to conduct the electricity, or plug a middle plug into the ends of two separate strips to connect them into a long strip, after well connected, seal all the plugs with enough glue.



  different IP 220V rgb led strip light level as below:

IP20: non waterproof strip led 3528 : Stick the leds directly to the PCB's back.

IP65:  Surface Injection: Based on the non-waterproof situation, use silicone to cover the PCB surface

IP67:  Silicone Tube: based on the non-waterproof situation, use silicone tube to trap the whole PCB

IP68:  Whole Injection: based on waterproof - silicone tube, fill the whole tube with silicon

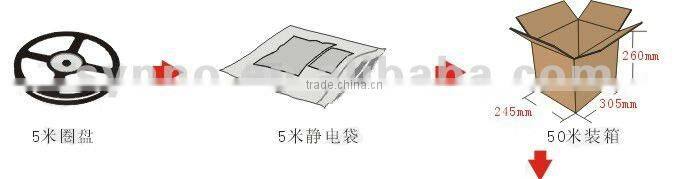

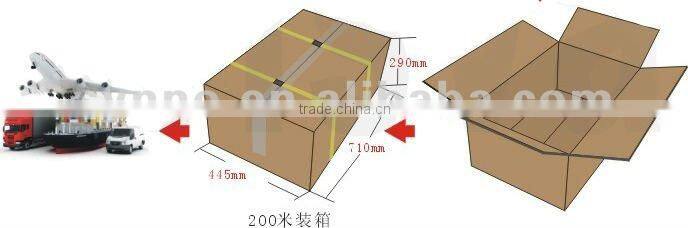

Packaging
5meters/roll, 100rolls/CTN or according to customer's requirement

Payment Mathod:
1.Paypal
2.Credit Card
3.Wire Transfer
4.West Union
5.L/C
30% advance; Balance on fax copy of BOL



220V rgb led strip lightShipping Mathod & Shipping time.
1. Shipping by EXPRESS:Sample can be delivered within 2-5 days on customer request, around 5-7 working days to arrive;
2. Shipping by SEA: Big order can be delivered within 10-25 days on customer request,

After-sales Policy:
There are two-year guarantee for the inserted driver of the light and three-year guarantee for the led source on the condition of the light being used under the normal environment, suitable maintenance and storage; any abnormal using is without guarantee . We can provide the repair, exchange (the components and parts) or replacement with a new item. The three schemas are for your option. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.

Our Service:
1.Your inquiry related to our products or prices will be replied in 24 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributorship are offered for your unique design and some our current models
5.Protection of your sales area,ideas of design and all your private information
6.All the products must through 24 hours aging before delivery to ensure the quality again



Factory Photo
