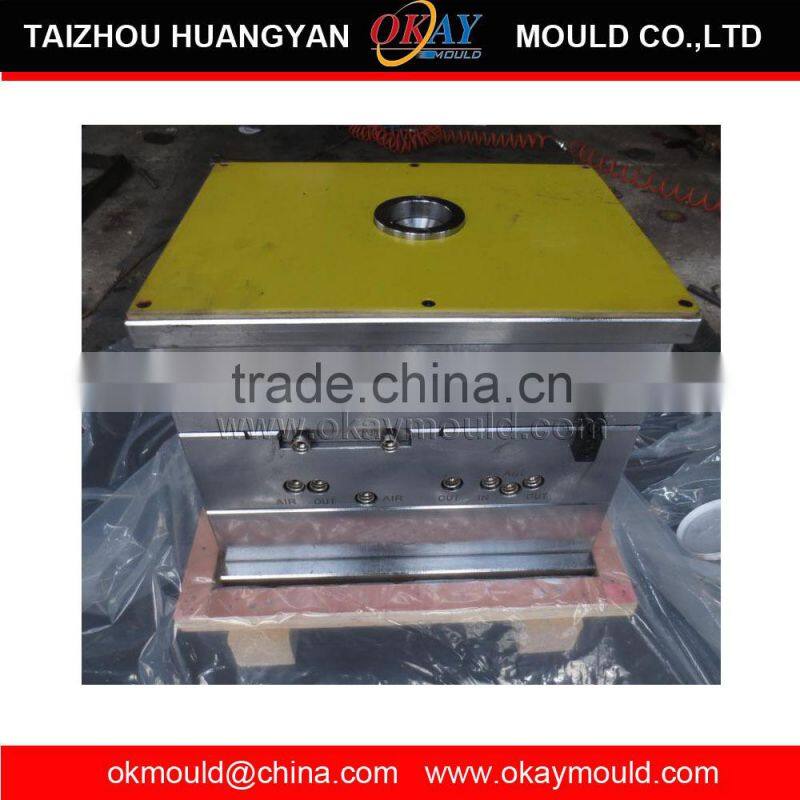

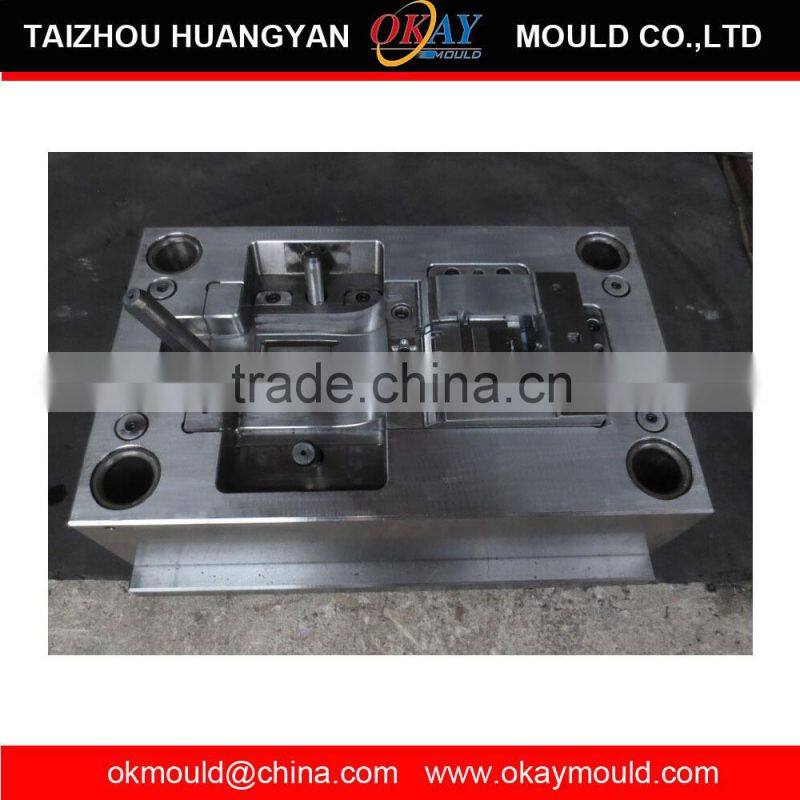

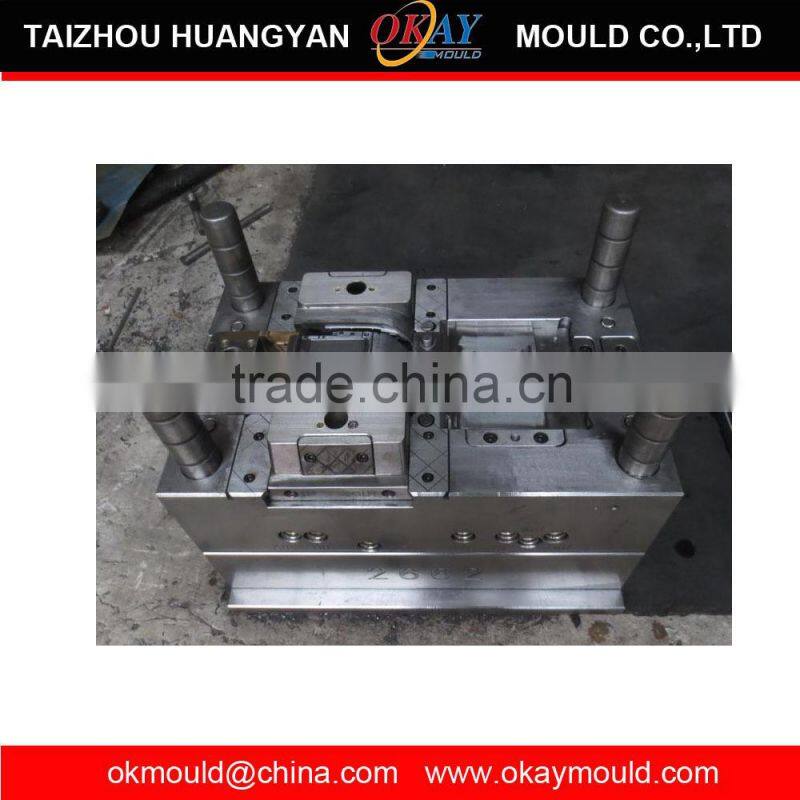

Plastic Injection Mould

Cavity/Core Material

P20, 718,2738,H13,DIN1.2311,DIN2344

Product Raw Material

ABS

Cavity

Single cavity

Cycle Time

30S

Runner System

Hot runner, Cold runner

Finish

Good Polishing

Mold Guarantee

500,000SHOTS

Mould standard

HASCO, DME, or by requested etc.

Software

CAD, Pro-E, UG, Solidwork

Tolerance

± 0.02mm

Main Technique

Milling, Grinding, CNC , Engraving ,EDM, Wire-cutting etc.

Packing

Wooden Case

1.Quote

According Sample or 2D/3D drawing or Picture with detailed information , If the part some design is not good , we will give suggestion and solutions to customer

          ↓

2.Discussion

Mold material, cavity number, price, runner, payment, etc.

          ↓

3.Approved

Order confirmed

          ↓

4. Advance

Pay 50% by T/T

          ↓

5.Product Design Checking.

We will send 2D and 3D part drawing and PPT file for customer check

          ↓

5.Mould Design

According the Approved Part drawing , we will make the mold design and send to customer confirm

          ↓

6.Mold Steel Material and Component Prepare

After drawing confirmed , we will start to prepare the steel material and standard components

          ↓

7.Mold Processing

Send detailed reports with pictures to customer each week

          ↓

8.Mold Testing

Send Test samples with report to customer

          ↓

9. Mold Modification

According to customer’s feedback

          ↓

10.Balance settlement

50% by T/T after the customer approved the test sample and mould quality.

          ↓

11.Packing and Delivery

Each Mold will be packing with some damageable spare parts , and send detailed pictures to customer
