Automatic disposable yogurt paper bowl machine
- 30 Set / Sets per Month
- Ningbo
- T/T Credit Card
Product Details
| Condition: | New | Product Type: | Paper Bowl Machine | Processing Type: | Paper Folding Machine |
| Place of Origin: | Zhejiang, China | Brand Name: | QH | Model Number: | ZW-A35 |
| Voltage: | 380V 50Hz, if your power is different, Please info us in advance. | Power(W): | 6kw | Dimension(L*W*H): | 2900 x 1500 x 1900 mm |
| Weight: | 2500KG | Certification: | CE | Warranty: | one year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.yogurt paper bowl machine2.Rated Speed35~40 cups/minute
3.Easy to operate
4.One year guarantee
5.CE certificate
WENZHOU QICHEN INDUS-TRY & TRADE CO.,LTD
TEL: 86-577-65566111 TEL: 86-18767486531
Add: Room 101, Block B, Tongqian Lake, Qiaoli Village, Feiyun Street, RuiAn, Zhejiang, China
ZW-A35 Ultrasonic Two-PE Paper Bowl Forming Machine
Model ZW-A35 Ultrasonic Two-PE Paper Bowl Forming Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.
It makes both one-side-PE-film-coated and two-side PE-film-coated paper bowls after running a whole procedure of automatic pre-printed-fan-shape-paper feeding, two-step pre-heating, bowl-side-body sealing(ultrasonic wave), silicone-oil lubricating(for top curling), bottom punching, two-step bottom heating, bottom pre-folding, bottom knurling, top curling and bowl discharging.

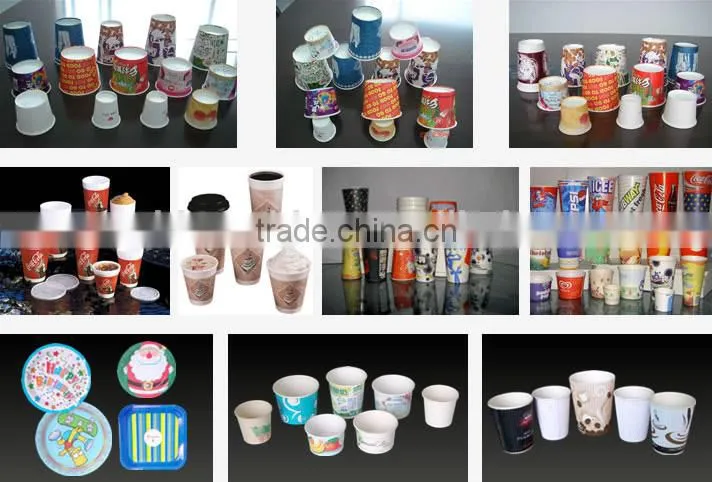

It is an ideal equipment of making soup paper bowls, noodle bowls, bigger paper cups and other large food cone-shaping containers etc.
Paper Cup Size: | 20oz~50oz (mold exchangeable) |
Raw Material: | One-side or two side PE(polyethylene)film coated/laminated paper; |
Suitable paper weight: | 140~450gsm |
Rated Speed: | 35~40 cups/minute |
Power Source: | 380V 50Hz, if your power is different, Please info us in advance. |
Total Power: | 6KW |
Total Weight: | 2500KG |
Pack Size (L*W*H) | 2900 x 1500 x 1900 mm |
Working Air Source: | Air pressure:0.4Mpa; Air Out-put:0.6m³/minute Need to buy Air Compressor |
Cup Side Welding: | Ultrasonic |
Cup Bottom Heating: | Hot Air |
Cup Bottom Knurling: | Heater Knurling (if use single PE coated paper) |
Cool Device (recycle water) knurling, for double PE coated paper |

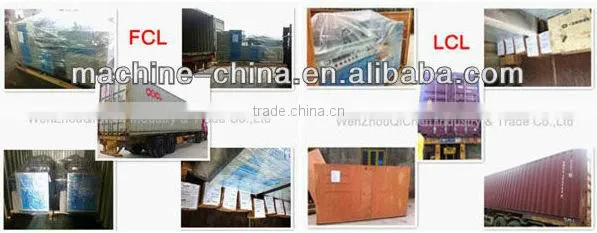

Packaging Details:Standard export case.
Delivery Times: within 45 days after the receipt of advanced payment.
ZW-A35 Ultrasonic Two-PE Paper Bowl Forming Machine
