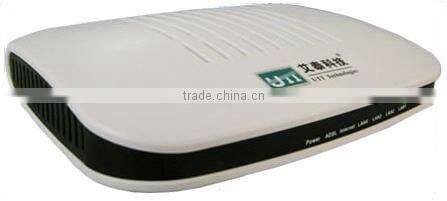

UTT A-201 Mini Adsl Modem Router support Packet filter based on address, protocol and port

FOB Price

Negotiable / Piece

200 Pieces(Min.Order)

Supply Ability 2500 Set / Sets per Month
Port SHANGHAI/SHENZHEN
Payment Terms:T/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status:	Stock	Type:	Wired	Application:	Other, Soho& Home
Function:	Firewall, Other, Firewall, NAT, IP/Mac binding,PPPoE server	LAN Ports:	4	WAN Ports:	1
Certification:	CE.FCC.CCC	Brand Name:	UTT	Model Number:	A201
Place of Origin:	Shanghai, China

Product Description

UTT A-201 Mini Adsl Modem Router support Packet filter based on address, protocol and port

Overiew:

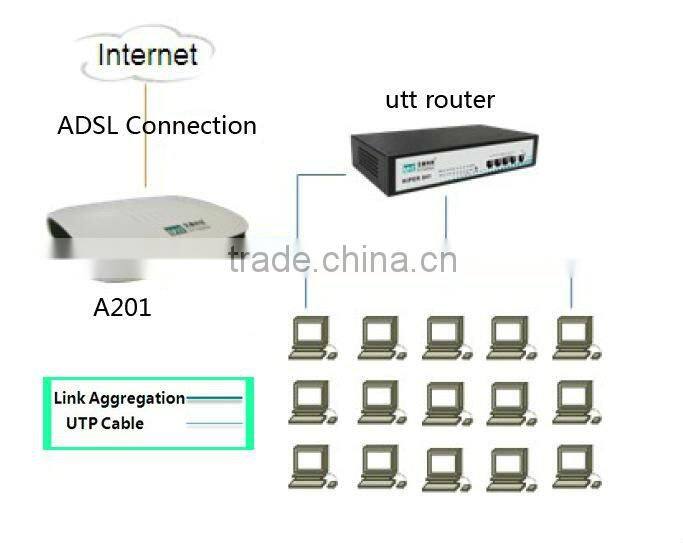

A201 Broadband ADSL Modem/Router, designed for family SOHO user, is a suitable choice for SOHO and family user. provides an ADSL2 + RJ11 ports and 4 Ethernet ports, with which you can efficiently access the Internet and provide an efficient application platform for users.

Key Features

1. Support 1483 Bridged/1483 Mer/PPPoE/PPPoA/1483 Routed
2. 4 RJ45 ports, 1 RJ11 port
3. 10/100M Ethernet port, auto MDI/MDIX, Auto-Negotiation
4. Packet filter based on address, protocol and port
5. Support DHCP Server, DHCP Client, and DHCP Static Binding
6. Support IP/MAC binding
7. Support ZIPB(Zero Installation PPP Bridge Mode)
8. Support DDNS
9. Support SNTP
10. Support SNMP(MIB II)
11. Support UPnP
12. Support IGMP Snooping
13. Support 802.1D

Specification	Description
Dim ensions (H x W x D):	182mm129mm27mm
Weight:	0.5 kg
Temperature:	0°C~40°C
Altitude:	0 ~ 4000 m
Relative humidity:	10~90%, non-condensing
Power Input:	5W
Voltage:	12V DC 0.5A
Protocols Supported:	IP, TCP, ARP, UDP, ICMP, NAT, reverse NAT, DHCP, SNTP, TELNET, HTTP, TFTP, PPP, PPPoE, PAP, CHAP
User Interface:	Web, CLI
