Concrete Pump for Sale in Uae and Manual Electric Concrete Pump for Sale XHBT-15SA

Item

XHBT-15SA0708

Max. Theoretical Throughput (m3/h)

15

Max. Pumping Pressure (MPA)

8

Max. Theoretical Vertical Conveying Distance (m)

110

Max. Theoretical Horizontal Conveying Distance (m)

400

Max. Aggregate size (mm)

30

Slump (cm)

12~23

Conveying Pipe Radius (mm)

100A/70A

Number of Conveying Cylinder (piece)

2

Conveying Cylinder Bore X Piston Stroke (mm)

Φ140×700

Hydraulic Oil Tank Capacity (L)

180

Feeding Height (mm)

1100

Hopper Capacity (m3)

0.30

Power of Main Electric Motor (kw)

30

Dimension (Length x Width x Weight) (mm)

4000x1350x1550

Total Weight (kg)

2200

No.

Name

Specification

Unit

Qty.

1

Concrete pump

XHBT-15SA/0708

set

1

2

Operation manual

pcs

1

3

Certificate of inspection

pcs

1

4

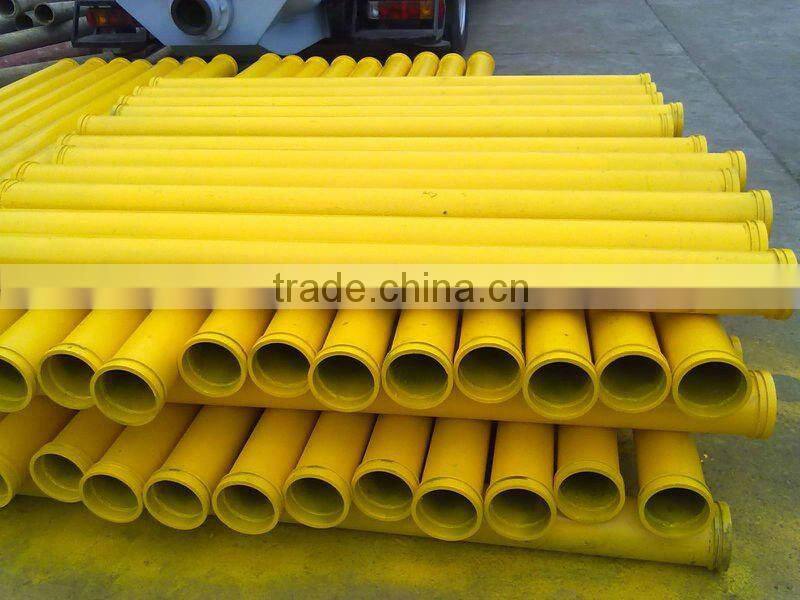

Transporting steel pipe

80A×3m

pcs

31

80A×2m

1

80A×1m

2

5

Diameter reducing steel pipe

125A-100A

pcs

1

100A-80A

1

6

Elbow pipe

125A×90°

pcs

2

80A×90°

4

80A×45°

4

7

Joint card

125A

pcs

4

100A

2

80A

40

8

Joint sealing gasket

125A

pcs

10

100A

10

80A

80

9

Hose

Φ83mm×6m

pcs

3

10

Pushing cylinder piston

pcs

2

11

Sealing gasket of mixing shaft

pcs

2

12

Remote control

pcs

1

13

Cleaning gun

pcs

1

14

Cleaning ball

Φ70mm

pcs

4

15

Hydraulic repairing kit

set

1

16

Other tools

set

1

17

paulin

sheet

1
