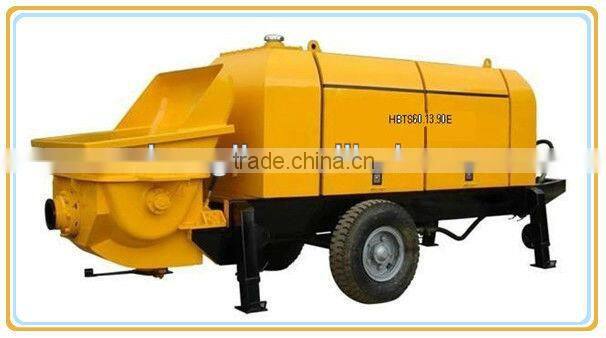

High Quality HBTS60-13-90E New concrete boom pump from China
1. Zhengzhou Changli Machinery Manufacturing Co., Ltd is a professional manufacturer and supplier of concrete pump with electric motor/diesel engine. Capacity covers: 15m3/h, 20m3/g, 30m3/h, 40m3/h, 50m3/h, 60m3/h, 80m3/h, 90m3/h, etc.
2. Main Technical Parameters of 60m3/h Concrete Pump with Electric Motor HBTS60-13-90E:
Model | HBTS60-13-90E |
Main pump: | Rexroth pump 190 Model:A11VLO190LDR |
Max. Theoretical.Concrete Output: | 69 M3/h |
Concrete Pumping Pressure: | 13 Mpa |
Hydraulic system: | opened type |
Concrete Cylinder Spec.(bore*stroke): | 200*1600 mm |
Hopper Capacity: | 0.7m3 |
Diameter of Pump exit | 180mm |
Hopper height: | 1400mm |
Theoretical.Max.Delivery Distance(Vertical/Horizontal) : | 300 /1200 m |
Electromotor power: | 90Kw |
Electromotor Model | Y280M-4 |
Rated Rotate Speed: | 1480r/min |
Hydraulic Circuit form | Opened-circuit |
Hydraulic oil tank capacity: | 580 L |
Fuel tank capacity: | 250L |
Concrete slump: | 120-230 mm |
Overall dimension(L*W*H): | 6300X2100X2250mm |
Total weight: | 6000Kg |
Characters of Concrete pump truck for sale
1. Leading professional design and manufacturing;
2. Different type meet different aggregate size requirement.
3. High reliable working performance;
4. Long working service;
5. Sell well at home and abroad.
Models of Concrete pump truck for sale
XHBT Small Size Aggregate Concrete Pump
HBT Electrical Motor/ Diesel Engine
Products Certificates: ISO9001:2000, SGS test
After-Sale Service:
1. Operator Training;
2. Spare Parts Supply.
Warranty Terms: More than 12 months
Quality certificates: SGS; ISO:9001:2000
Certificates:
We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad. Holding high quality products and honest operation as tenets, we have developed international market very well, such as Russia, Southeast Asia, Central Asia, Mid-East, South Africa, America, etc, more than twenty countries and regions.

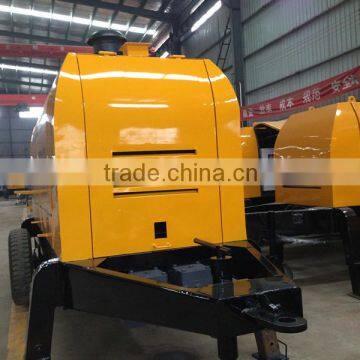

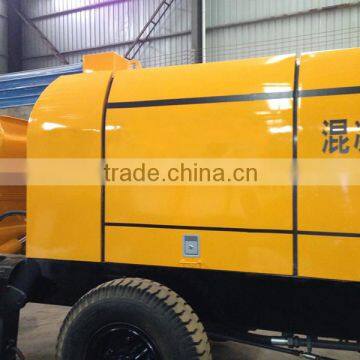

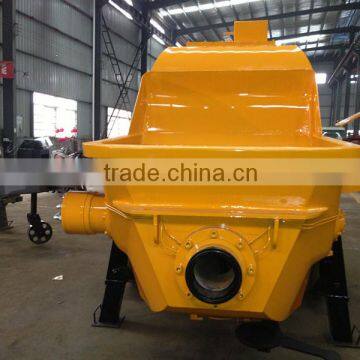

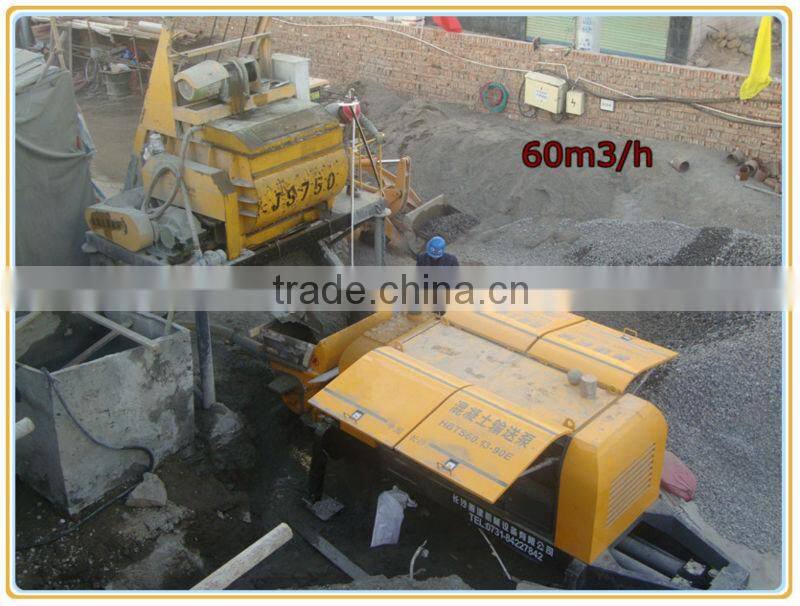

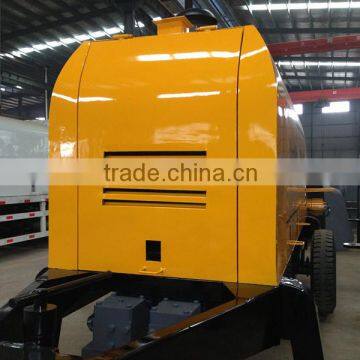

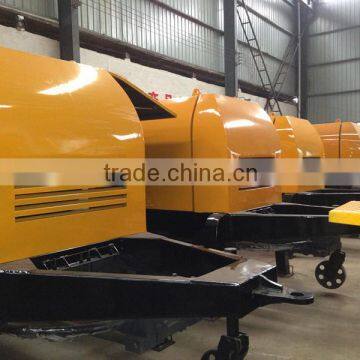

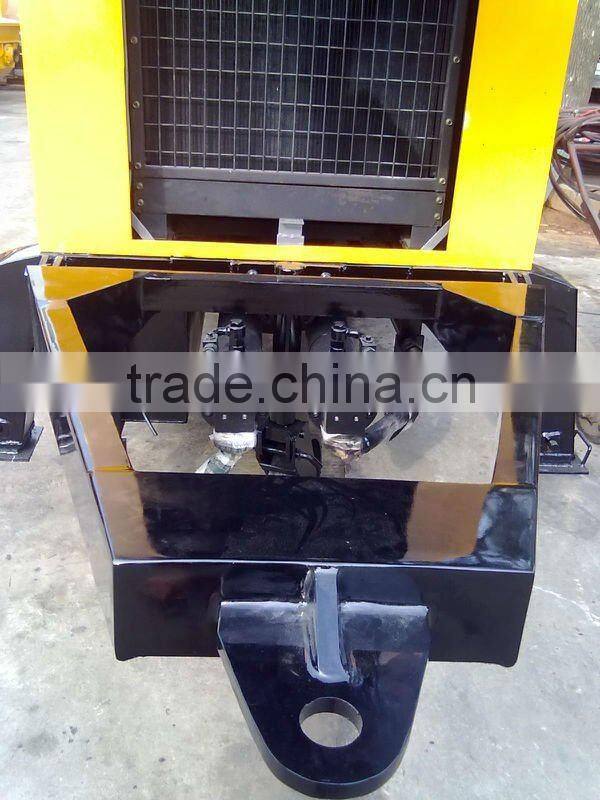

More pictures of concrete pump
