Wireless queue management system for multi-counters and multi services

show room

1)              Input voltage:AC220V/110V

2)             Output signal: two RS485 signal (one to manipulator, another to display); Another network signal connect to others computer, last audio signal supply to the out sound box.

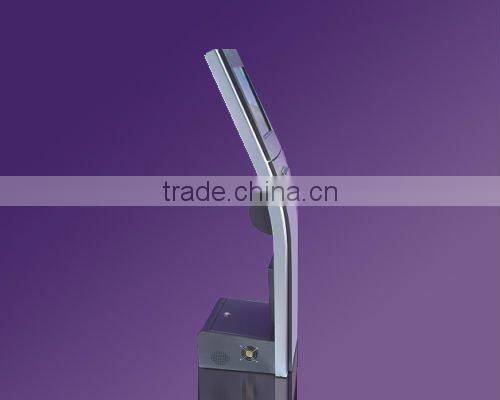

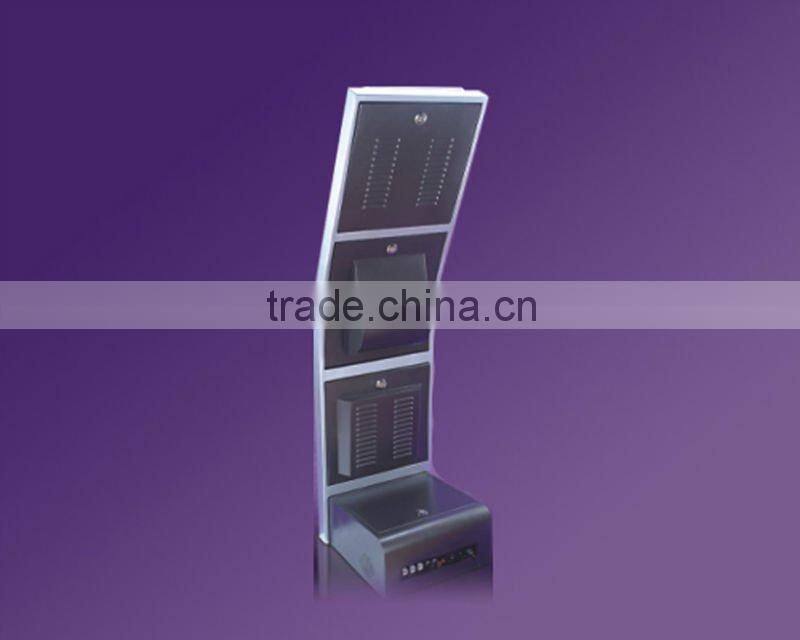

3)             Mainframe stand molding made, shape beautiful and taste.

4)             Mainframe face is 15.1 inch LCD, have SAW touch display.

5)              Inner 1 to 2 RS232 turn RS 485 communicate controller, 20W amplifier, sound box 10W.

6)             Inner printer is paper width 80mm thermal printer, print speed is 150 mm/s, Cutter’s life is 1.5 million, printer head life not less than 100km.

7)             Can choose the magnetic card reader, ID card reader.

8)             Can choose wireless communicate, (433MHZ, maximum transmit power 10dbm,based on GFSK/FSK modulation, open transmission distance 500m/9600bps)

9)             Can choose GSM/GPRS SMS MODEN(Appointment for SMS)

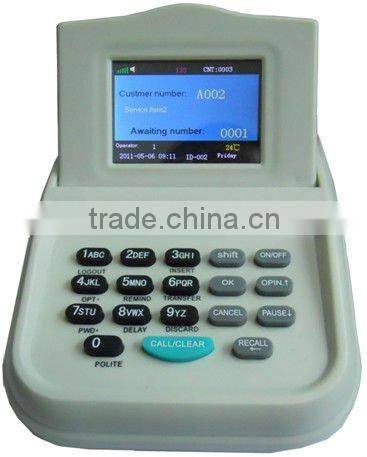

1.2  Manipulator

1)      2.6 inch TFT 262,144-color display, can display “customer NO.” ,” service item”, “waiting people”, “date time”, “temperature” , “total service people” etc.

2) Display can show any national characters.

10)           Installation is simple, signal and power in a 4-core-cable.

11)         There are call, optional, delay, insert etc. 18 buttons in the manipulator.

12)         Input RS485 signal

13)         Input voltage DC8-15V

1.3  Counter Display

14)          High brightness red LED display, resolution is 16*96

15)          Shape made by injection molding, beautiful appearance, convenient installation, suitable for different parts of the installation.

16)          Can display any national character and graph.

17)          Input RS485 signal

18)          Input voltage: AC200V/110V

1.4   LED Main Display

19)         High brightness red LED display, resolution according to the requirement of customer needs configured.

20)         Aluminum alloy shell.

21)         Input voltage AC220V/110V

22)         Input RS485 signal

23)         Can display any national character and graph.

2.4       LCD Main Display

Connect to computer by VGA, and the computer install QPLAY software, can play video and flash ad, and display queue information, this display optional accessory by customer.
