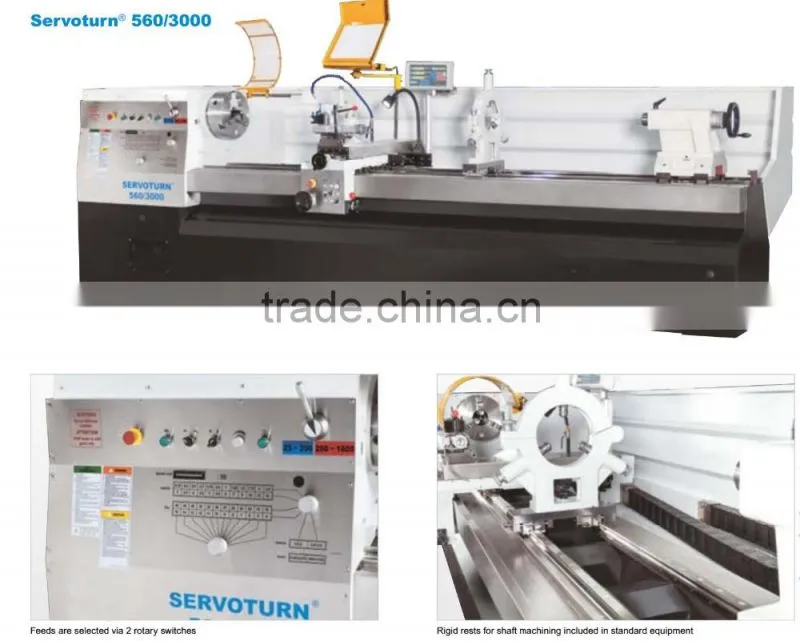

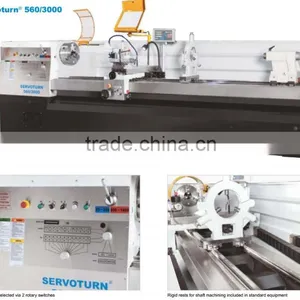

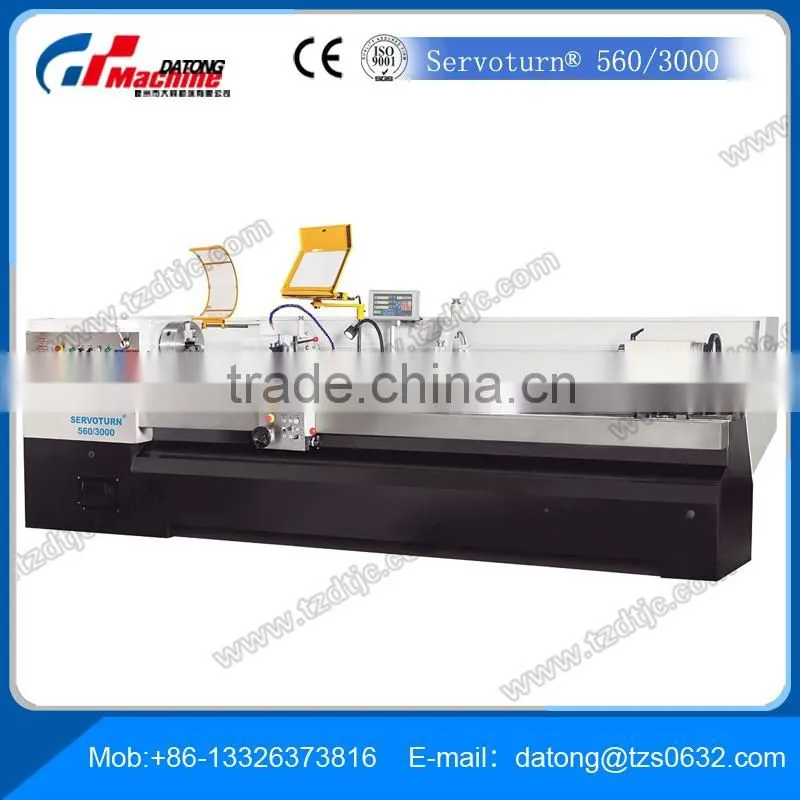

Servoturn 560/3000 Precision Lathe
- 20 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 560mm | Place of Origin: | Shandong, China |
Brand Name: | DATONG | Model Number: | Servoturn 560/3000 | Voltage: | 400V |
Power(W): | 7.5kw | Dimension(L*W*H): | 4500x1260x1800 mm | Weight: | 5000kg |
Certification: | ISO9001 CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

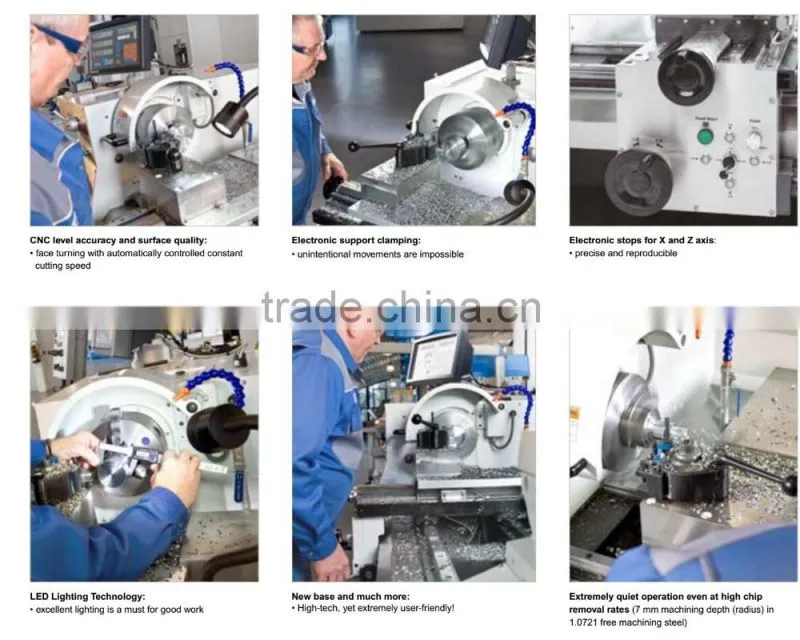

Conventional Precision Lathe with servo drive - easy to operate, more reliable, more
precise, for higher loads and reduced maintenance

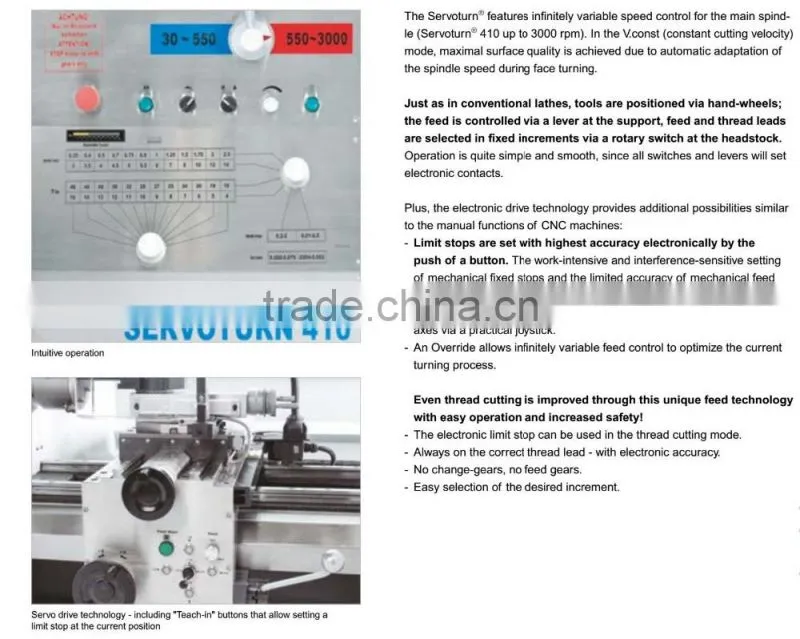

Intuitive operation as we know it from conventional machines - only much better:

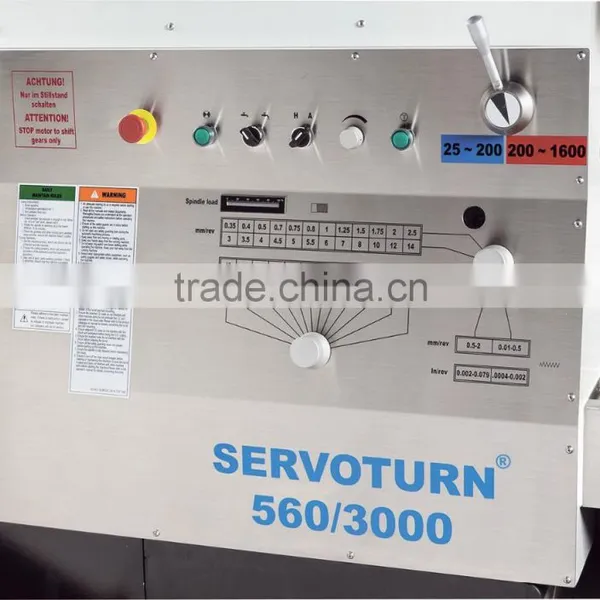

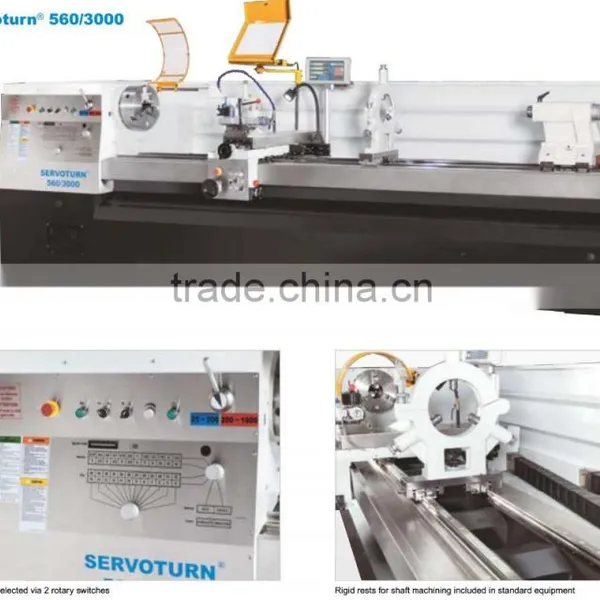

- feed and thread leads can be selected via rotary switch - what a brilliant concept

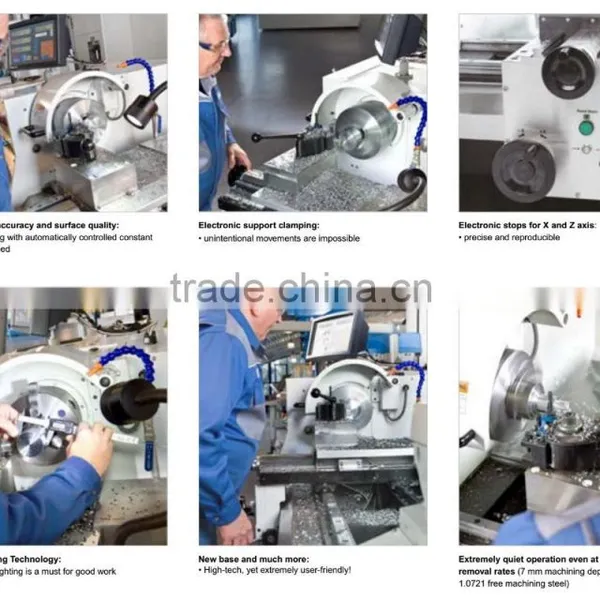

- stops can be set electronically with the press of a button
- feeds are infinitely variable between 50 and 100% via override potentiometer - finally available on a conventional lathe
- micro-control via electronic hand-wheels - but handling and postioning just as with a conventional machine
- axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
- infinitely variable speed adjustment and constant cutting speed of headstock
The definition of a new standard for conventional lathes had to be perfect - therefore, we complemented the Servoturn with the following features:
Mineral-Casting Machine Frame
- mineral-casting reduces vibration 6 times faster than cast-iron (GG25) and up to 10 times faster than steel- this ensures excellent surface quality that could not be achieved with conventional machines
- excellent thermal stability
- modern manufacturing process with excellent energy footprint

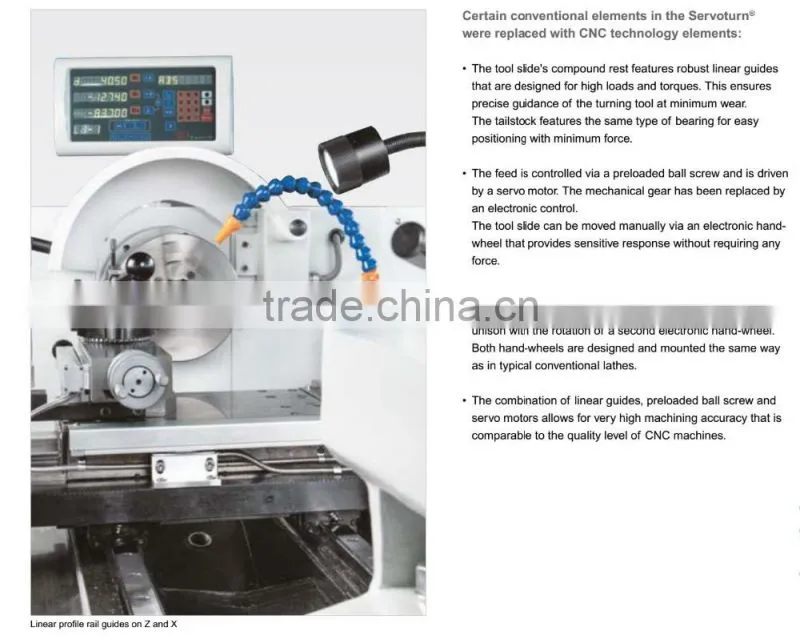

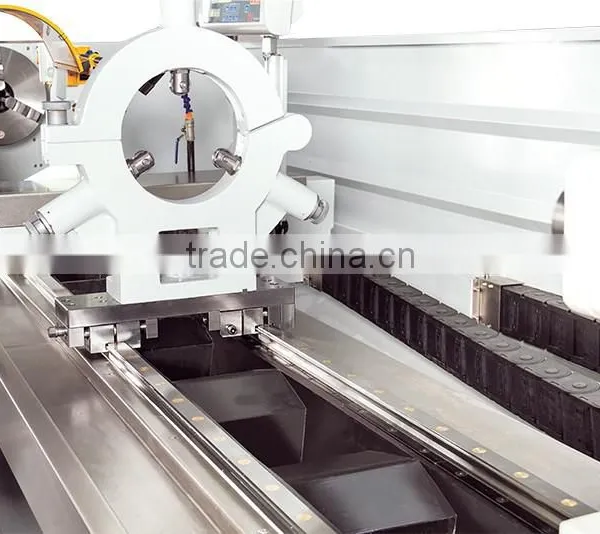

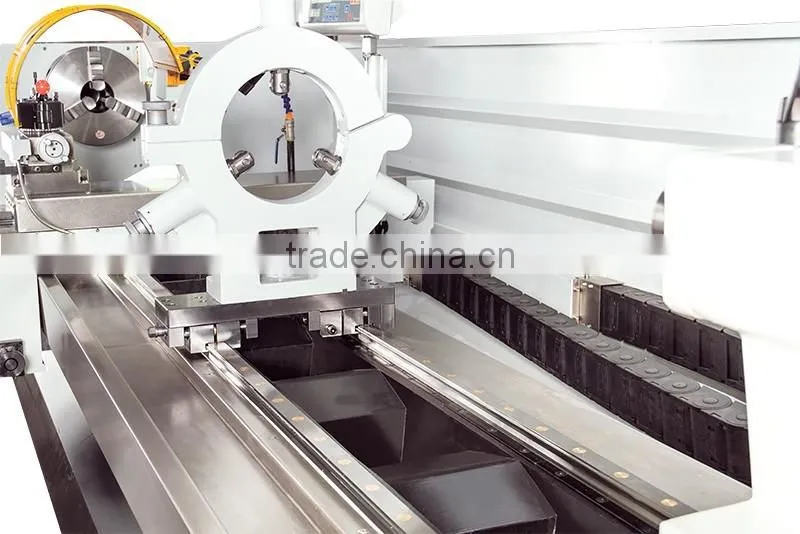

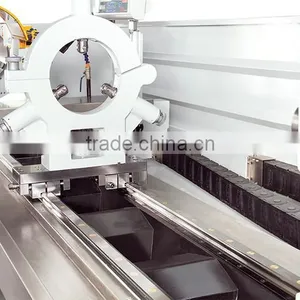

Linear Profile Guide Rails
- maximum reliability and performance
- excellent rigidity, strength and accuracy is achieved by optimum load distribution, designed for accepting high loads and torques
- no stick-slip effect
- long life and minimum maintenance
- replaceable parts
Recirculating Ball Screw
- considerably less errors due to loseness (backlash), resulting in significantly higher precision
- significantly reduced friction
- no stick-slip effect
- reduced heat development
- less wear for even less maintenance requirements

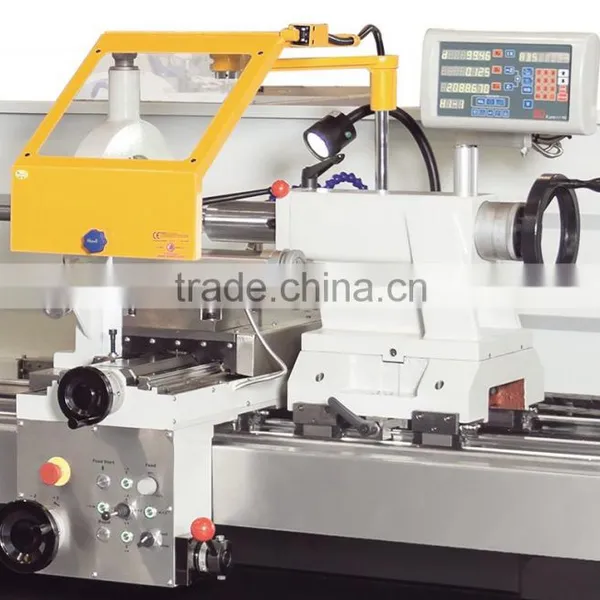

3-axis position indicator
- more accuracy
- lower error rate
- increased productivity
- resulting in valuable time savings
- for increased productivity
- easy to read display
- operator-specific features
- convenient keyboard layout
- resolution: 0.01/ 0.005 mm
- default coordinates
- axis position is maintained when display is turned off
- storage for 10 tools
- radius / diameter toggle
- mm/inch conversion
- display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
Working area Workpiece length (max.) Turning diameter over bed Turning diameter over support Travel Z1-axis Bed width | 3.000 mm 560 mm 350 mm 100 mm 350 mm |
---|---|
Travels Travel X-axis Travel Z-axis | 316 mm 2.800 mm |
Headstock Spindle speed Spindle bore Spindle mount Spindle taper | 25 - 1.600 rpm 80 mm D1-8 MT 7 |
Feed Feed X-axis Feed Z-axis | 0,01 - 2 mm/R 0,01 - 2 mm/R |
Tailstock Tailstock quill diameter Tailstock taper Tailstock quill stroke | 75 mm MT 5 180 mm |
Tapping Tapping, metric Tapping, whitworth | (24) 0,2-14 mm (24) 4-48 TPI |
Drive capacity Motor rating main drive Motor rating X-axis Motor rating Z Supply voltage | 7,5 kW 1 kW 2,3 kW 400 V |
Measures and weights Overall dimensions (length x width x height) Weight | 4.500x1.260x1.800 mm 5.000 kg |
Standard Equipments:
3-axis position indicator, 3-jaw turning chuck, quick change tool holder WBD 25120, quick change tool holder WBH 32130, quick change tool holder head WB, steady rest 19-165 mm, follow rest 16-95 mm, coolant system, includes fixed splash guard (wall), protective shield for support, work lamp, operator manual
